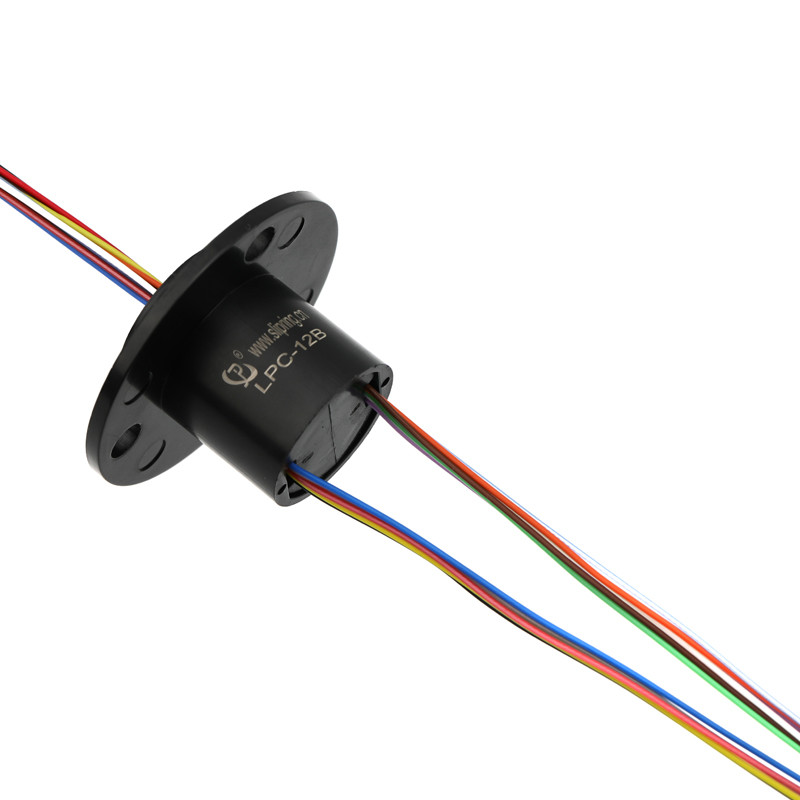

Capsule Slip Ring 12 Channels 300rpm

  • Capsule Slip Ring 12 Channels 300rpm
  • Capsule Slip Ring 12 Channels 300rpm
Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPC-12B
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 50K units/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operating Speed 300 Rpm Number Of Circuits 12
Voltage 240 VAC/DC Lead Length Standard 250 Mm (9.843inch)
Current Rating 2 Amps Per Circuit Contact Material Gold To Gold
Capsule Length 26.43 Mm Applications Total Station
High Light

compact slip ring

,

mini slip ring

,

Compact Capsule Slip Ring
Product Description

Compact Capsule Slip Ring 12 Channels Max. Speed Up to 300rpm with Copper Plated Wires



Description

The series of compact capsule electrical slip ring with the features of flexibility, cost-effectiveness, and reliability, and it offers a low torque design with gold-to-gold contacts. It can meet 360 degrees free rotation and has a very long life about 10 million rotary cycles.

The LPC-12B Slip Ring which is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint, provides smoother running, lower torque and lower electrical noise than competitive slip rings. It is available in 6, 12 circuit modes.



Specifications
Operating Speed 0-300 rpm
Number of Circuits 12
Voltage 240 VAC/DC
Current Rating 2 amps per circuit
Temperature Range -20℃ to +60℃
Contact Material Gold to Gold
Lead Size 28# silver plated copper
Lead Length Standard 250 mm (9.843inch)
Dielectric Strength ≥500 VAC @50Hz, between each circuit
Insulation Resistance 100 MΩ @ 500 VDC
Electronic Noise 1mΩ Min

















































Outline Drawing



Capsule Slip Ring 12 Channels 300rpm 0


Application Picture


Capsule Slip Ring 12 Channels 300rpm 1
