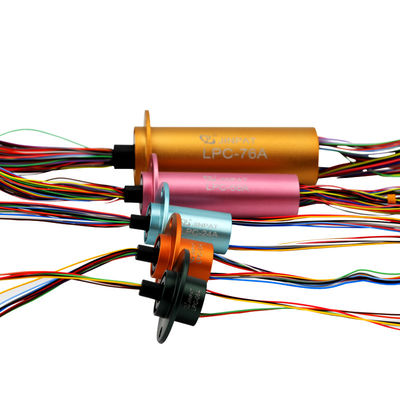

High Precision Rotary Slip Ring 76 Circuits Capsule Part For Pipe Inspection

Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPC-76A
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 500 pieces a week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Circuits 76 Circuits Capsule Length 105.65 Mm
Speed 300 Rpm Available Circuit Models 6 , 12 , 18 , 24 , 36 , 56 , 76 Circuit Models
Voltage 240 VAC/DC Contact Material Gold To Gold
Highlight

rotating slip ring

,

rotary joint slip ring

Product Description

High Precision Slip Ring of 76 Circuits with Compact Design of Capsule part for Pipe Inspection



Description

  • This kind of slip ring is characterized by compact design
  • Smooth operation, low torque, low electrical noise, and more circuits customizable.
  • Special-purpose wires ensure reliable transmitting frequency.
  • Contact material adopts precious metal or super hard plating processing technique to ensure excellent Transmitting performance and longer lifetime.
  • Standardized production and exquisite workmanship create swivels with reliability and high quality.
Specifications
Operating Speed 0-300 rpm
N Circuits 76
Voltage 240 VAC/DC
Rated Current  2 amps per circuit
Temperature Range -20℃ to +60℃
Contact  Gold to Gold
Lead Size AWG28 silver plated copper
Lead Length Standard 250 mm (9.843inch)
Dielectric Strength ≥500 VAC @50Hz, between each circuit
Insulation Resistance 100 MΩ @ 500 VDC
Electrical Noise 1mΩ Min























































Capsule Length =L
# of Circuits L (mm) Part No
76 105.65 LPC-76A





















Outside Drawing



High Precision Rotary Slip Ring 76 Circuits Capsule Part For Pipe Inspection 0



Application picture(Armoured Cars SlipRing)



High Precision Rotary Slip Ring 76 Circuits Capsule Part For Pipe Inspection 1
