Miniature Slip Ring of 18 Circuits Compact Size and Gigabit Ethernet Integrated

Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPM-18C
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 50K units/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operating Speed 0-250 Rpm Total Circuits 18
Contact Material Gold To Gold Lead Length Standard 250 Mm (9.843 Inch)
Electrical Noise 1 MΩMin Application Mechanical Arms
Insulation Resistance 100 MΩ @ 500 VDC
High Light

compact slip ring

,

mini slip ring

Product Description

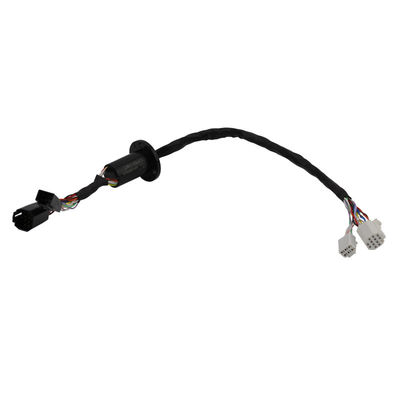

Miniature Slip Ring of 18 Circuits Compact Size and Gigabit Ethernet Integrated



LPM-18C Miniature Slip Ring Description



It is a high-precision slip ring manufactured by JINPAT, supporting the integrated transmission of Gigabit Ethernet, TRIG signal, BUS signal and ACAP signal etc. The LPM-18C miniature capsule slip ring has been designed with positive inversion structure, in terms of rotation, it allows varied forms whether for rotating degree or direction. Characterised by compact size and stable performance, the slip ring can be used in automatic equipments such as mechanical arms.



Features

  •  18 circuits
  •  Signal Defination: 1*Gigabit Ethernet, 1*TRIG signal, 1*BUS signal, 1 *ACAP and 1 *ABUS
  •  Speed up to 250 rpm continuous
  •  Gold-Gold contacts
  •  Compatible with data bus protocols
  •  Sealed units are available
  •  Flexible, color-coded, silver-plated lead wires
  •  Superior handling of low-level control signals
  •  Metal housing optional

Advantages:

  • Low torque minimizes system torque budget
  • Compact design to fit into the most demanding space.
  • Low in height, saving the space
  • Power and signal mixed
  • Anti-interference design
  • 360°continuous rotation
  • Flexible, color-coded, silver-plated, insulated lead wires
  • Addition of special components
  • Fully compatible with both analog and control level signals
  • Precision ball bearings for long life
  • Precision ball bearings for long life
  • Rugged anodized aluminum construction
  • Available with Ethernet
  • Rapid delivery
  • Trade safety, lowering the risk



Specifications



Operating Speed 0-250 rpm
Circuits 18
Voltage 240 VAC/DC
Singals  1*Gigabit Ethernet, 1*TRIG signal, 1*BUS signal, 1 *ACAP and 1 *ABUS
Temperature Range -20℃ to +60℃
Contact  Gold to Gold
Lead Size 30# silver plated copper
Lead Length Standard 250 mm (9.843inch)
Dielectric Strength ≥500 VAC @50Hz, between each circuit
Insulation Resistance 1000 MΩ @ 500 VDC
Electrical Noise 1mΩMin



Capsule Length =L
# of Circuits L (mm) Part No
18 23.5 LPM-18C



Dimension







Miniature Slip Ring of 18 Circuits Compact Size and Gigabit Ethernet Integrated 0





Product Display





Miniature Slip Ring of 18 Circuits Compact Size and Gigabit Ethernet Integrated 1




















































































Company introduction


JINPAT has 20 years experience in SLIP RING manufacturing. Our factory covers an area of 7000 square meters with professional R&D team, advanced production equipment, and 300 skillful employees. JINPAT slip ring is one of the best-known brands in Europe and North America.


It has advanced technical equipment with high precision test instruments. Our manpower is so competent that we meet the needs of different customers with various specifications in durability and a reliable quality.



Patent & Certification



Miniature Slip Ring of 18 Circuits Compact Size and Gigabit Ethernet Integrated 2





PS: Apart from providing connector or terminal processing for clients, we have our own CNC center so that we can provide one-stop service of supporting parts manufacture like housing or other mounting-related mechanical parts.
