Optical Slip Ring of 1 Channel with IP65 High Protection Level

Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPFO-01C
Minimum Order Quantity 1pcs
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 500 pieces a week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Fiber Types SM Or MM IP Rating Up To IP 65
Working Temperature -20 To 65 C Connector Types FC, SC, ST, SMA, LC Or /APCs
Mechanical Shock MIL-STD-810F Channel Number 3-7 Are Available
Highlight

optical rotary joint

,

fiber optic slip ring

Product Description

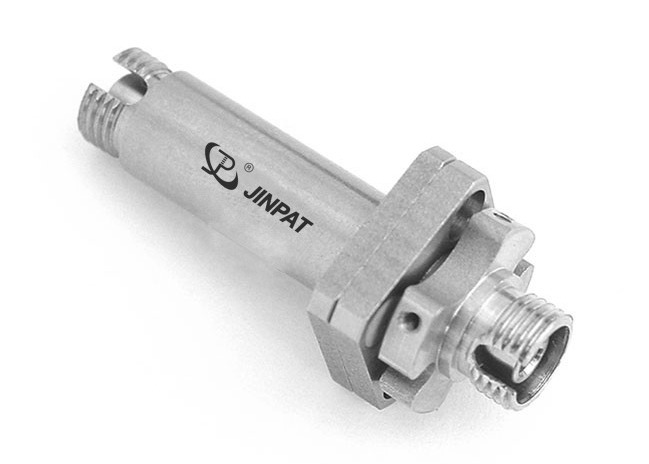

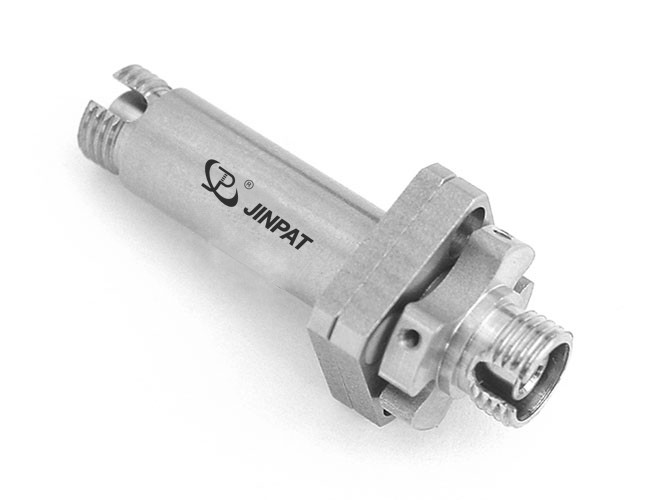

Optical Slip Ring of 1 Channel with IP65 High Protection Level



Description



The FORJ is widely used in missile guidance systems, robotic systems, remotely operated vehicles (ROVs), oil drilling systems, sensing systems, medical devices (OCTs), broadcasting and many other field applications where a twist-free fiber cable is essential. The Fiber optic rotary joint (FORJ) is the optical equivalent of the electrical slip ring. It allows uninterrupted transmission of an optical signal while rotating along the fiber axis.



Technology


A quick patent search produces hundreds of inventions around two-channel and multiple-channel fiberoptic rotary joints. Commercially, however, only a limited number of design principals are implemented. At Princetel, we use our proprietary technologies to facilitate both the dual-port (2-channel) and multiport (multi-channel) FORJs. We offer our customers an exciting new alternative to better performance.



Specification



PARAMETERS VALUE
Part No. LPFO-07A
Channel number 3-7 are available
Wavelength 850 and 1310 nm for MM
1270-1610 nm for SM;
Insertion loss <5 dB (typical: 2-3 dB)
Insertion loss ripple ~+/-0.5 to 1 dB
Return loss 45 dB
Crosstalk >50 dB (typical: 63 dB)
Chromatic dispersion <0.01 ps/nm
Polarization mode dispersion <0.01 ps
Maximum speed 200 rpm
Pulling strength 10 N
Start up torque <1 Nm
Estimated life cycle 100 million revolutions
Optical power handling 23 dBm
Working temperature -20 to 65 C
Storage temperature -25 to 75 C
Package style Pigtails or receptacles(FC or ST; up to 7 channels)
Housing material Stainless steel
Fiber types SM or MM w/3 mm jacket, 1 m (Kevlar/PVC or armor)
Connector types FC, SC, ST, SMA, LC or /APCs
Dimensions 67 mm dia. x 122 mm length
Weight 2.5 kg
Vibration MIL-STD-167-1
Mechanical shock MIL-STD-810F
IP rating Up to IP 65

Outline drawing



Fiber Optic Rotary Joints, electrical slip rings with 200rpm speed IP65 for Radar Antennas





Application Picture
