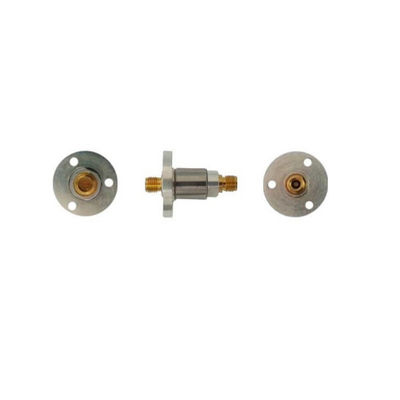

50 GHz RF Rotary Joint/ Slip Ring with High Working Speed

  • 50 GHz RF Rotary Joint/ Slip Ring with High Working Speed
  • 50 GHz RF Rotary Joint/ Slip Ring with High Working Speed
Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPHF-01G
Minimum Order Quantity 1
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 500 pieces /Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Frequency Range DC To 50 GHz Peak Power, Max 1500 W @ 1 GHz
Phase WOW (degrees Max) 1° Insertion Loss ,WOW 0.04 DB
IP Protection Level IP 60 Per EN 60529 Rotating Speed 200rmp
Life Time 10 Million Revolutions Application Radar Antennas
Highlight

rotary swivel joint

,

coax rotary joint
Product Description

50 GHz RF Rotary Joint/ Slip Ring with High Working Speed for Video Surveillance System



Description



RF Coaxial Connector refers to a device which is installed on the cable or instrument as transmitting or breaking the line of electrical connections. Also, it belongs to Mechanical & Electrical Integration product.



Slip rings can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.



Compact slip rings are ideal for video and digital signals. Typical use applications are video systems robotics, cable reels, medical equipment and packaging machines.



Imported material, lubricant-free bearing, high wear resistance, long service life, life-long free maintenance;





Specifications
Interface Type 2.4mm Female (50ohms) Style I type
Frequency Range DC to 50GHz Phase WOW (degree max)

1°@DC to 26.5GHZ

2°@DC to 26.5GHZ
VSWR, MAX

1.3 @ DC to 10 GHz

1.4 @ 10 to 18 GHz

1.7@26.5 to 50GHz

 Insertion Loss, max

0.3dB @ DC to 10 GHz

0.5 dB @ 10 to 26.5GHz

0.9 dB @ 26.5 to 50GHz
VSWR WOW

0.05@DC to 26.5GHZ

0.2@26.5

 Insertion Loss, WOW 0.05 dB
Peak Power ,max 1000kW

Average Power, max.



50 W @ 1 GHz

15 W @ 10 GHz

5 W  @ 26.5 GHz

3 W @ 50 GHz
Rotating Speed ,max 500 rpm Life Time ,min 10 million Revolutions

Temperature

(Ambient Range)

 ‐55 to +85 ℃ (Operation)

Humidity

(non‐condensing), max

 85% (Operation)
‐55 to +85 ℃ (Storage) 95% (Storage)



Outline Drawing

50 GHz RF Rotary Joint/ Slip Ring with High Working Speed 0
Application Picture



50 GHz RF Rotary Joint/ Slip Ring with High Working Speed 1
