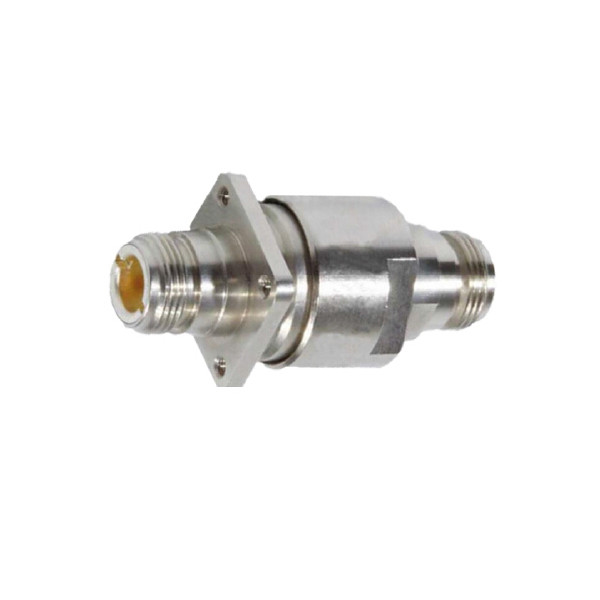

Single-Channel Coaxial Rotary Slip Ring with a Frequency up to 18 GHz

Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPHF‐01H
Minimum Order Quantity 1 PCS
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 500 pieces a week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Frequency Range DC To 18 GHz Interface Type SMA F‐SMA F (50ohms)
Peak Power ,max 3 KW Rotating Speed 500 Rpm
Temperature ‐55 To +85 ℃ (Operation) Life Time ,min 5 Million Revolutions
Application 1 Radar Antennas Application 2 Remotely Operated Vehicles
High Light

rotary swivel joint

,

coax rotary joint

,

Single Channel Coaxial Rotary Joints

Product Description

Single-Channel Coaxial Rotary Slip Ring with a Frequency up to 18 GHz



Description



JINPAT  Broadband Coaxial Rotary Joints feature rugged construction to adapt to tough conditions while displaying premium performance. If you need a special configuration or size, contact us with your requirements.

Ultra Low Loss Designs



With wideband DC-18 GHz high power, in-line designs with miniature 10-kilowatt models, API Technologies offer the right model rotary joint for your application.Our engineers continue to improve the technology in order to provide our customers with standard and custom designs that meet specifications and exceed expectations.



100% Rigorous Testing



We monitor critical phases of the production process carefully with data logging technology and utilize our in-house testing capabilities from design to the whole process of production. Terms of our standard testing parameters include: Starting Torque, Continuous Torque, Insertion Loss, VSWR and Power Handling. All Technologies Rotary Joints undergo rigorous electrical and mechanical testing for critical parameters.



Specifications



Specifications
Interface Type SMA F‐SMA F (50ohms) Style I type
Frequency Range DC to 18 GHz Phase WOW (degree max)
VSWR, MAX

1.3 @ DC to 10 GHz

1.4 @ 10 to 18 GHz

Insertion Loss, max

0.25 dB @ DC to 10 GHz

0.30 dB @ 10 to 18 GHz

VSWR WOW 0.05 Insertion Loss, WOW 0.05 dB
Peak Power ,max 3 kW

Average Power, max.

@ Body temperature max. 60℃

500 W @ 1 GHz

200 W @ 6 GHz

100 W @ 12 GHz

30 W @ 18 GHz

Rotating Speed ,max 500 rpm Life Time ,min 5 million Revolutions

Temperature

(Ambient Range)

‐55 to +85 ℃ (Operation)

Humidity

(non‐condensing), max

85% (Operation)
‐55 to +85 ℃ (Storage) 95% (Storage)



Outline Drawing

Single-Channel Coaxial Rotary Slip Ring with a Frequency up to 18 GHz 0

Application Picture



Single-Channel Coaxial Rotary Slip Ring with a Frequency up to 18 GHz 1
