Electrical Capsule Slip Ring 24 Circuits with High Protection
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Electric | Current | 2 A |
|---|---|---|---|
| Voltage | 240 V | Contact Material | Gold To Gold |
| High Light | mini slip ring,small slip ring |
||
Product Description
Gold to Gold Contact Electricical Capsule Slip Ring of 24 Circuits with High Protection
Description

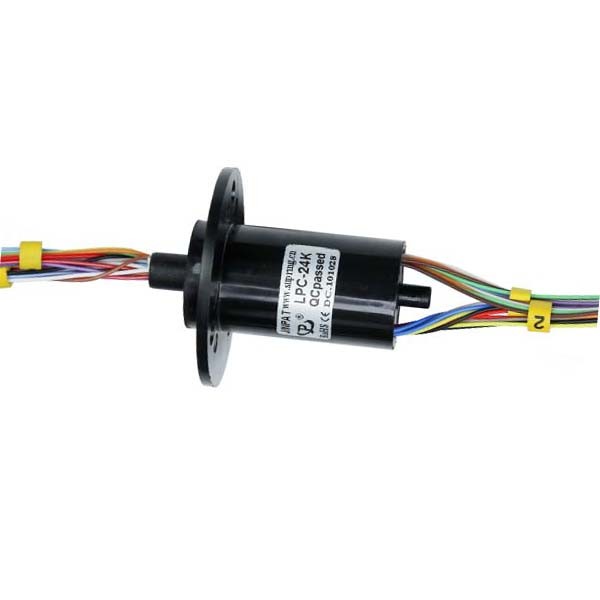

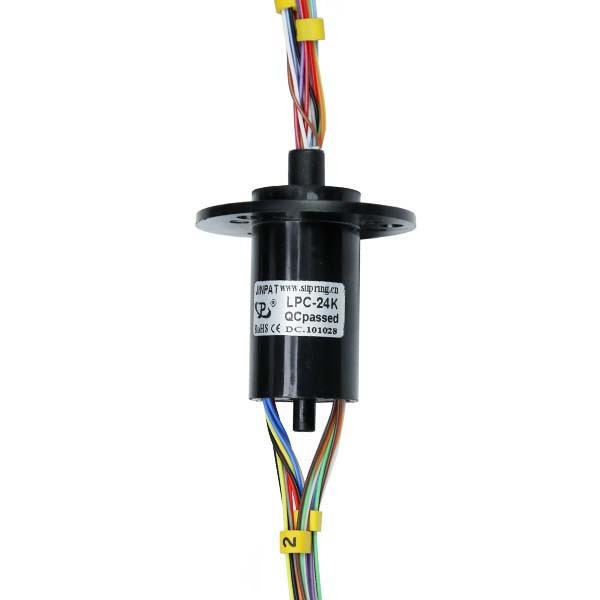

The LPC-24K slip ring capsule is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.
Using a 90° V-groove ring design for each ring, the LPC-24T provides smoother running, lower torque and lower electrical noise than competitive slip rings.
| Specifications | |
| Operating Speed | 0-200 rpm |
| Number of Circuits | 24 |
| Voltage | 240 VAC/DC |
| Current Rating | 2 amps per circuit |
| Temperature Range | -20℃ to +60℃ |
| Contact Material | Gold to Gold |
| Lead Size | 28# silver plated copper |
| Lead Lengths | Standard 250 mm (9.843inch) |
| Hole Diameter | 1.5~7.0mm |
| Dielectric Strength | ≥500 VAC @50Hz, between each circuit |
| Insulation Resistance | 100 MΩ @ 500 VDC |
| Electronic Noise | 1mΩ Min |
The operating life of the unit depends upon temperature, rotation speed, and environment.
The operating life ≥50,000,000 runs ref.
