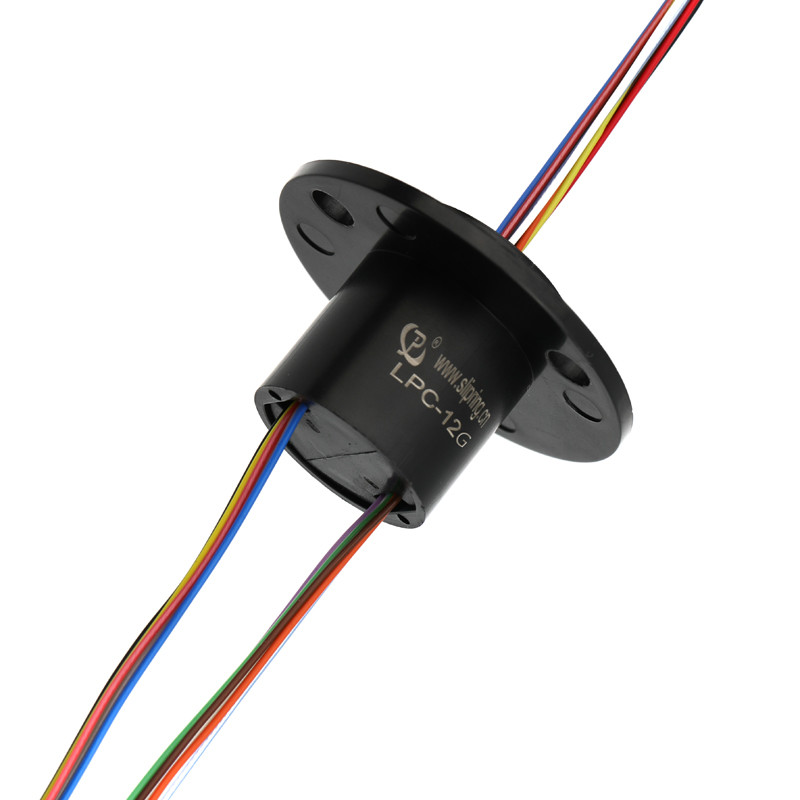

Electrical Capsule Slip Ring 12 Wires With 2500RPM High Speed

  • Electrical Capsule Slip Ring 12 Wires With 2500RPM High Speed
Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPC-12G
Minimum Order Quantity 1
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 500 pieces /Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operating Speed 2500 Rpm Voltage 240 VAC/DC
Material Gold Contacts Length 26.43mm
Working Life 100million Lead Size 28# Silver Plated Copper
Dielectric Strength ≥500 VAC @50Hz, Between Each Circuit
High Light

2500RPM compact slip ring

,

2500RPM small slip ring

,

2500RPM Electrical Slip Ring
Product Description

12 Wires Electrical Capsule Slip Ring with 2500RPM High Speed



Description



The LPC-12G capsule slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.

Using a 90° V-groove ring design for each ring, the LPC-12G provides smoother running, lower torque and lower electrical noise than competitive slip rings. It is available in 6, 12 circuits model.



Specifications
Operating Speed 0-2500 rpm
Number of Circuits 12
Voltage 240 VAC/DC
Current Rating 2 amps per circuit
Temperature Range -20℃ to +60℃
Contact Material Gold to Gold
Lead Size 28# silver plated copper
Lead Length Standard 250 mm (9.843inch)
Dielectric Strength ≥500 VAC @50Hz, between each circuit
Insulation Resistance 100 MΩ @ 500 VDC
IP IP54



Outline dimension



Electrical Capsule Slip Ring 12 Wires With 2500RPM High Speed 0









Product application



Electrical Capsule Slip Ring 12 Wires With 2500RPM High Speed 1
