Super Miniature Slip Ring 4 Circuit with Light and Small Figure
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Super Capsule | Material | Gold To Gold |
|---|---|---|---|
| Number Of Circuits | 4 | Feature | High Precision |
| Application | Instrumentation | ||
| High Light | compact slip ring,small slip ring |
||
Product Description
4 Wire Super Miniature Slip Ring of 240 VAC / DC with Light and Small Figure
Description
Typically, a slip ring consists of a stationary graphite or metal contact (brush) which rubs on the outside diameter of a rotating metal ring. As the metal ring turns, the electric current or signal is conducted through the stationary brush to the metal ring making the connection.
This simple design has been used for decades as a rudimentary method of passing current into a rotating device.
This series of product is 4 circuits models and it has a compact shape. Gold to gold ensures ultra-long life for transmitting weak signals.
| Specifications | |
| Operating Speed | 0-300 rpm |
| Number of Circuits | 4 |
| Voltage | 240 VAC/DC |
| Current Rating | 1 amp per circuit |
| Temperature Range | -20℃ to +60℃ |
| Contact Material | Gold to Gold |
| Lead Size | 30# silver plated copper |
| Lead Length | Standard 250 mm (9.843inch) |
| Insulation Resistance | 1000 MΩ @ 500 VDC |
| Electrical Noise | 1mΩ Min |
| Housing Material | Engineering plastic |
Outline drawing

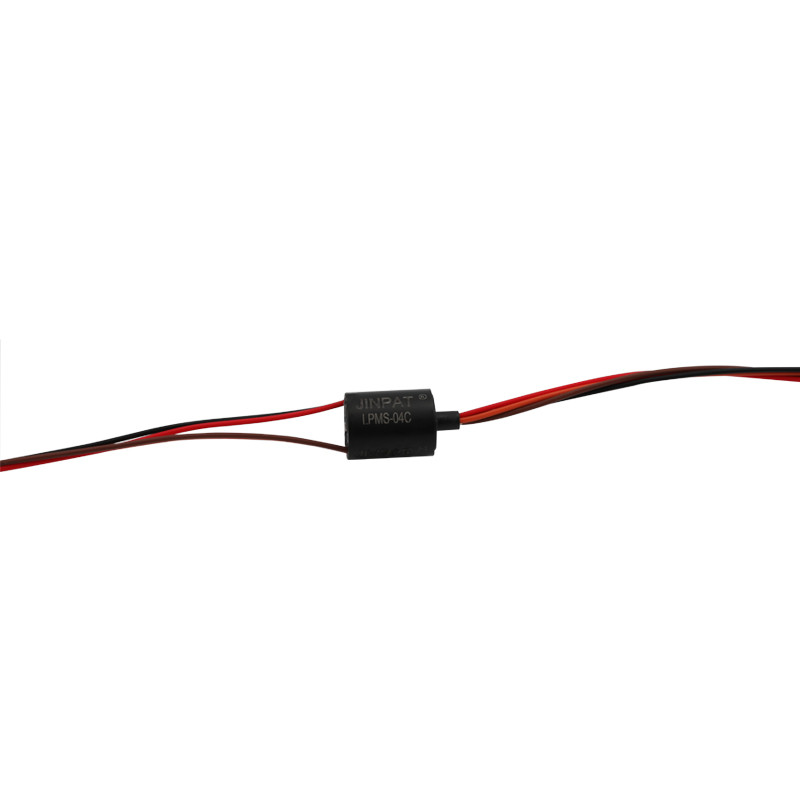

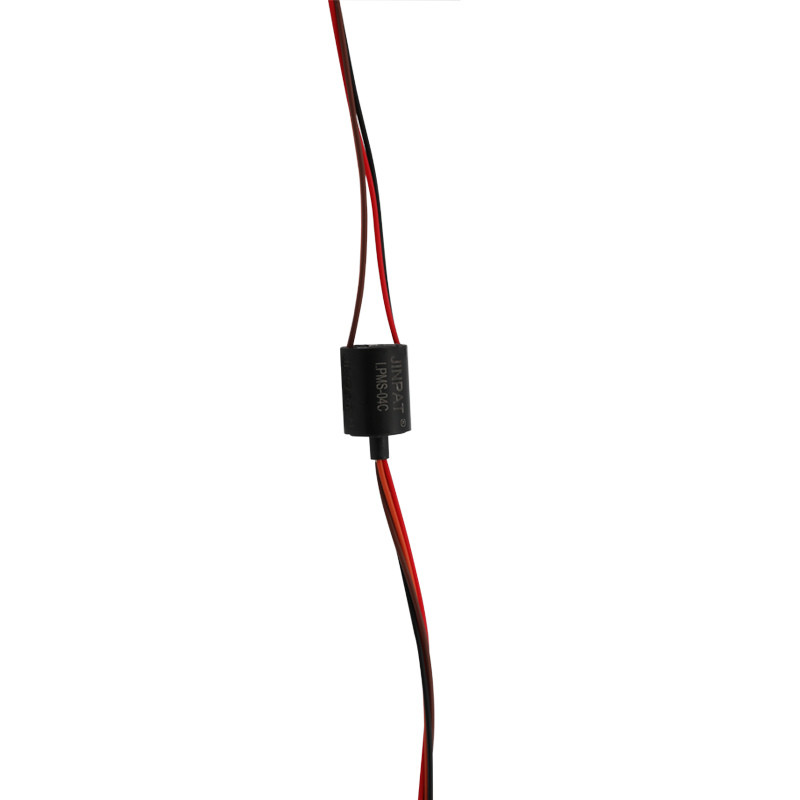

Product display
Application picture
