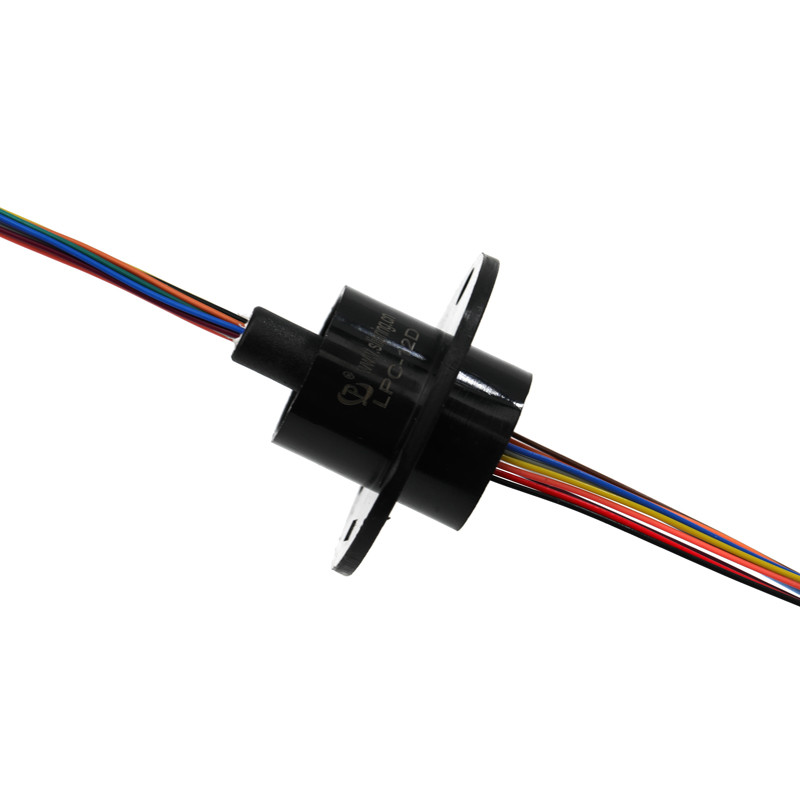

Capsule Slip Ring 12 Circuits With 300rpm Rotating Speed
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Number Of Circuits | 12 | Current Rating | 2 A |
|---|---|---|---|
| Contact Material | Gold To Gold | Voltage | 240 VAC/DC |
| Insulation Resistance | 100MΩ@500VDC | Electrical Noise | 1ΩMin |
| Advantage | Compact Size | ||
| Highlight | compact slip ring,mini slip ring,240 VAC small slip ring |
||
Product Description
Compact Capsule Slip Ring of 12 Circuits with 300rpm Rotating Speed for CCTV
A slip ring (in terms of electrical engineering ) is a method of making an electrical connection through a rotating assembly. Formally, it is an electric transmission device that allows energy flow between two electrical rotating parts, such as in a motor.
A slip ring can be used in any electromechanical system that requires unrestrained, intermittent or continuous rotation while transmitting power and/or data. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.
Specification
| Operating Speed | 0-300rpm |
| Number of Circuits | 12 |
| Voltage | 240VAC/DC |
| Current Rating | 2 amps per circuit |
| Temperture Range | -20℃ to +60℃ |
| Contact Material | Gold to Gold |
| Lead Size | 28# sliver plated copper |
| Lead Length | Standard 250mm(9.843inch) |
| Dielectric Strength | ≥500VAC@50Hz between each circuit |
| Insulation Resistance | 100MΩ@500VDC |
| Electrical Noise | 1ΩMin |
Product application(CCTV security cameras)
