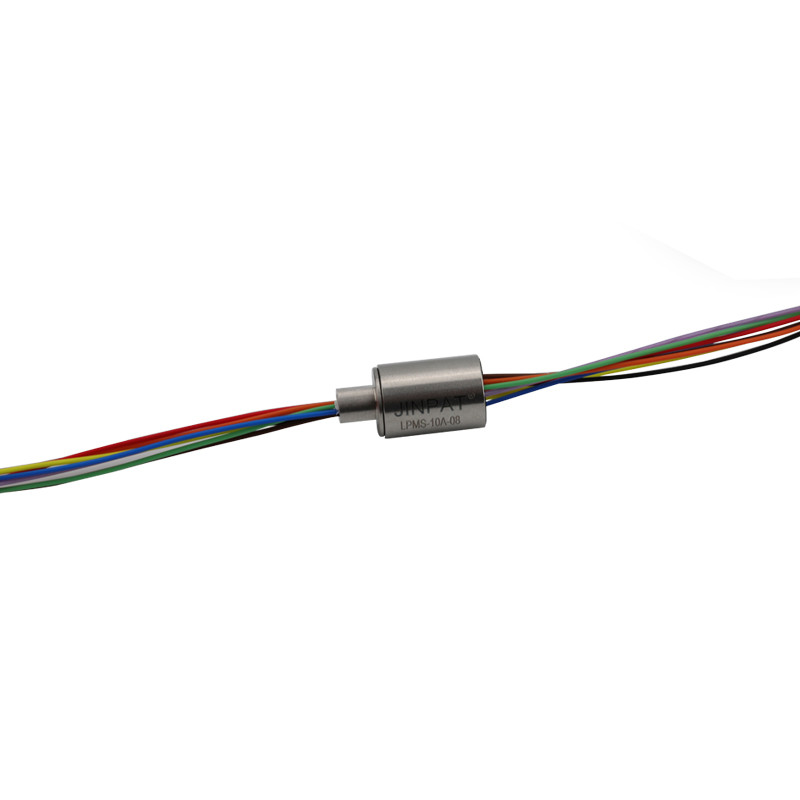

Slip Ring Commutator 8 Circuits With Flange Gold Gold Contact

  • Slip Ring Commutator 8 Circuits With Flange Gold Gold Contact
  • Slip Ring Commutator 8 Circuits With Flange Gold Gold Contact
  • Slip Ring Commutator 8 Circuits With Flange Gold Gold Contact
Place of Origin China
Brand Name JINPAT
Certification ISO/CE/RoHS/UL
Model Number LPMS-10A-08
Minimum Order Quantity 10pcs
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 1weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 50K units/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Number Of Circuits 8 Contact Material Gold To Gold
Current Rating 1A Voltage 240 VAC/DC
Housing Material Stainless Steel Electrical Noise 1mΩ Min
Insulation Resistance 1000 MΩ @ 500 VDC
Highlight

compact slip ring

,

mini slip ring

,

8 Circuits Compact Slip Ring
Product Description

8 Circuits Compact Slip Ring with Flange and Gold-gold Contact



Standard middle-sized Capsule Slip Ring is able to integrate over 125 circuits, with optional outer diameter from 22mm~54mm. This series adopts advanced military-standard surface processing techniques, and is highly precise, compact and easy to assemble. Gold-to-gold contact ensures low resistance and super long service life. It is able to integrate various signals: Ethernet, USB, RS, LVDS, CAN bus, Fire Wire, SDI and HDMI, etc.



Outline drawing

Slip Ring Commutator 8 Circuits With Flange Gold Gold Contact 0



Specifications
Operating Speed 0-300 rpm
Circuits 8
Voltage 240 VAC/DC
Rated Current  1 amp per circuit
Temperature Range -20℃ to +60℃
Contact  Gold to Gold
Lead Size 30# silver plated copper
Lead Length Standard 250 mm (9.843inch)
Dielectric Strength ≥500 VAC @50Hz, between each circuit
Insulation Resistance 1000 MΩ @ 500 VDC
Electrical Noise 1mΩ Min
Housing  Stainless steel

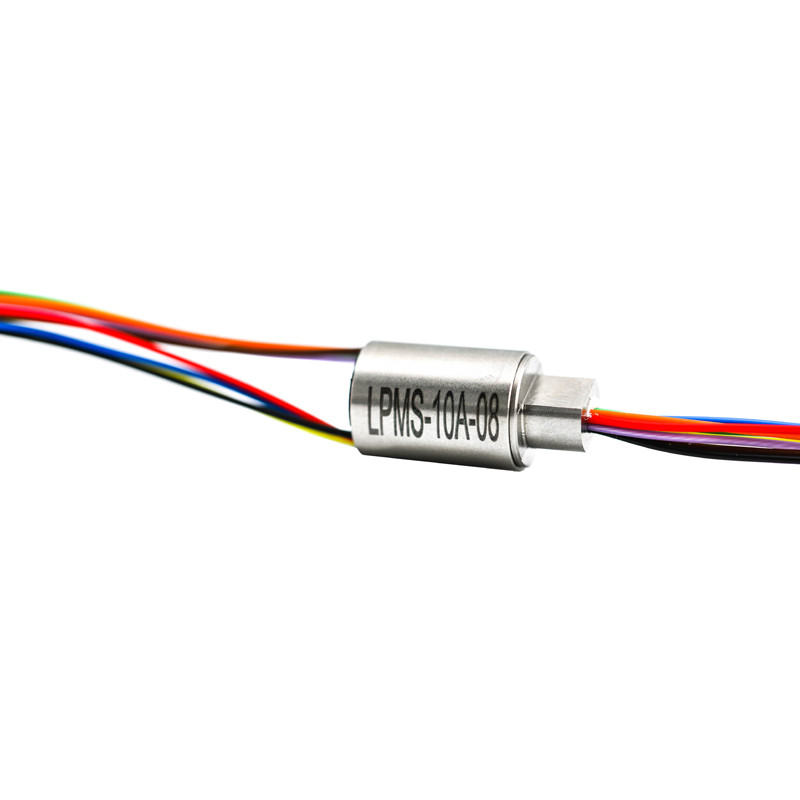

Display Picture

Slip Ring Commutator 8 Circuits With Flange Gold Gold Contact 1
