Hybrid Slip Ring 24 Circuits with Low Electrical Noise
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Number Of Circuits | 24 | Voltage | 240 VAC/DC |
|---|---|---|---|
| Contact Material | Gold To Gold | Operating Speed | 50rpm Max |
| Housing Material | Aluminum Alloy | ||
| Highlight | slip ring rotary joint,coax rotary joint |
||
Product Description

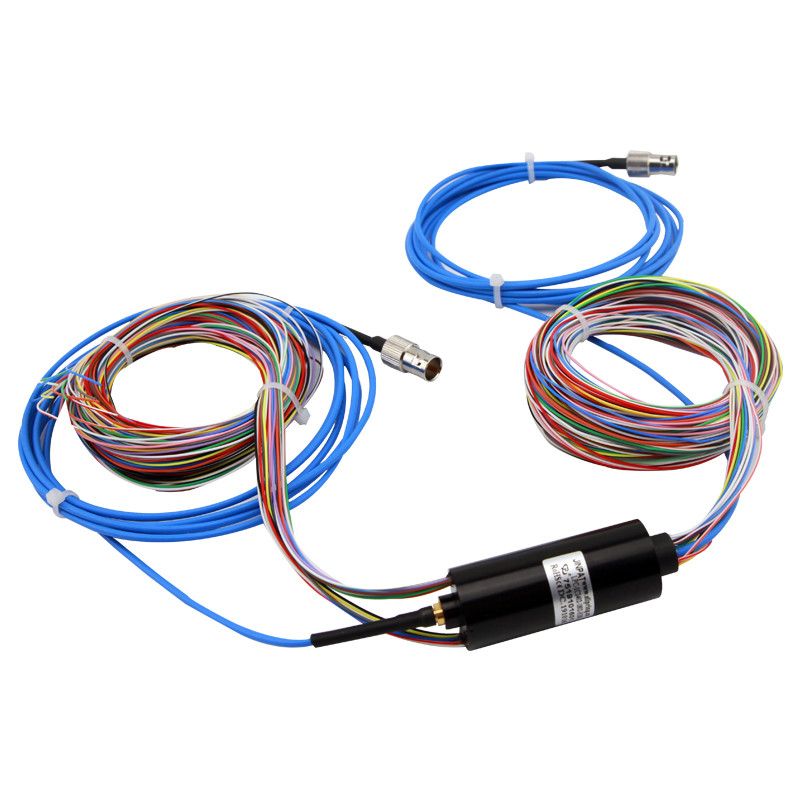

24 Circuits Hybrid Slip Ring RF Rotary Joint with Low Electrical Noise and Low Insertion Loss
An LPC-1C2402 slip ring is a special unit with RF Coaxial Connector. The Bandwidth could achieve to 50MHz—3GHz; The Insert loss ≤0.2dB@1.0GHz; The return loss≥30dB@1.0GHz.Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.
Using a 90° V-groove ring design for each ring, the LPC-1C2402 provides smoother running, lower torque and lower electrical noise than competitive slip rings.
Outline drawing
| Specifications | |
| Operating Speed | 50rpm max |
| Number of Circuits | 24 |
| Voltage | 240 VAC/DC |
| Current Rating | 2 amps per circuit |
| Temperature Range | -20℃ ~ +60℃ |
| Working Humidity | 60%RH or higher |
| Contact Material | Gold to Gold |
| Lead Size | AWG30 silver plated copper |
| Housing Material | Aluminum alloy |
| Lead Length | Standard 250 mm (9.843inch) |
| Insulation Resistance | 100mΩ@500VDC |
| Electric Noise | ≤50mΩ |
| IP | IP54 |
| The Description of Coaxial Connector: | |
| Specific Impedance | 50Ω |
| Static Resistance Value |
Outer Conductor:≤100mΩ Inner Conductor:≤50mΩ |
| Electric Noise | Inner Conductor:≤50mΩ |
| Insulation Resistance | 1000 mΩ@500VDC |
| Cable size | RG316/U ( Flexible Coaxial Cable) |
| Housing Material | Engineering plastic |
| Cable Length | 250mm |
| Connector Model | SMA/BNC/TNC/SMB |
| Contact Material | Metal |
