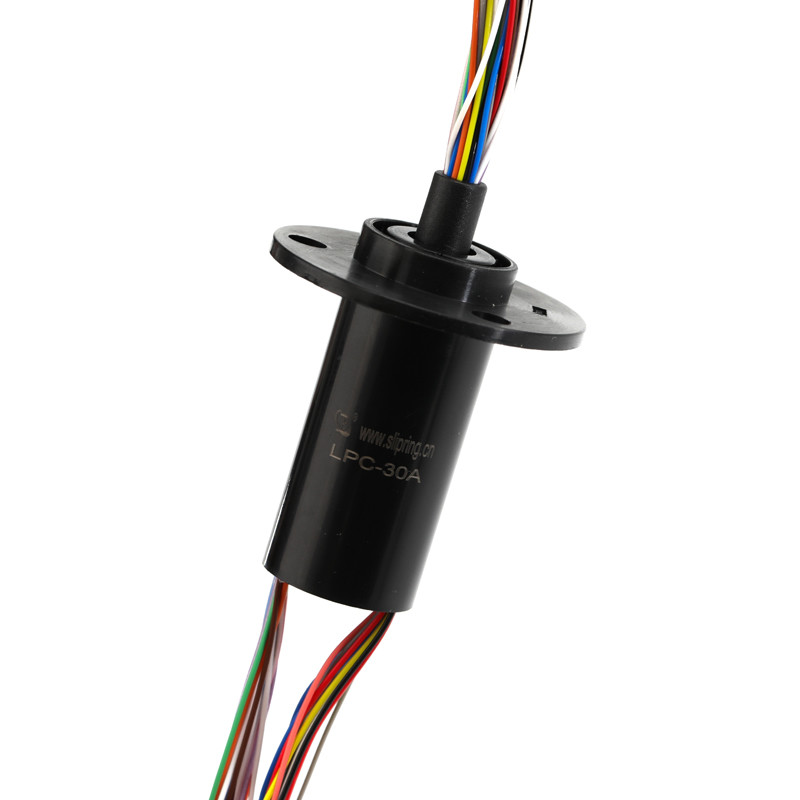

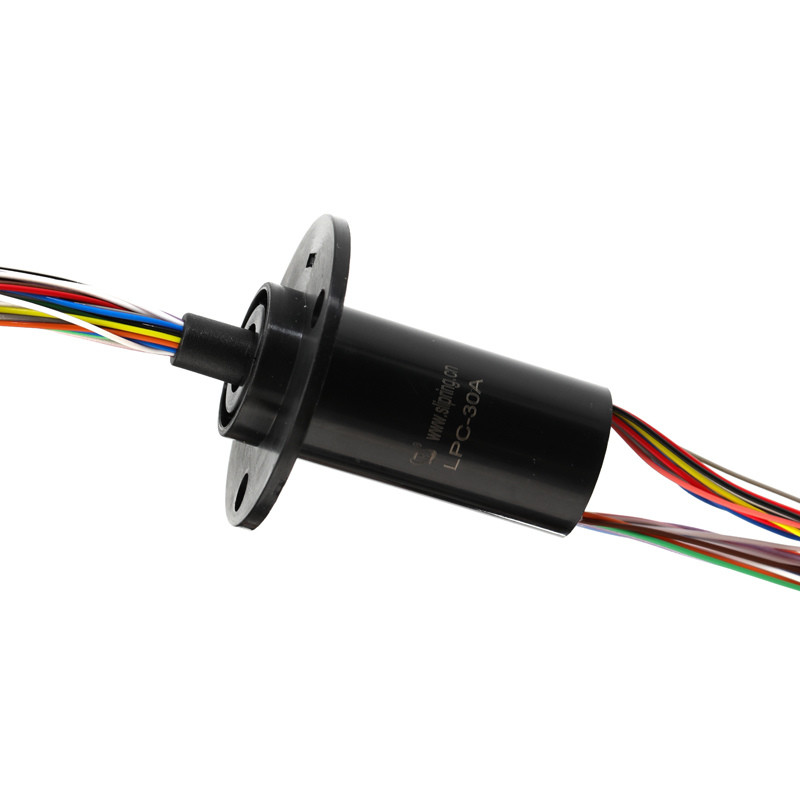

Capsule Slip Ring 30 Circuits Low Loss but Long Life
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Number Of Circuits | 30 | Voltage | 240 VAC/DC |
|---|---|---|---|
| Current Rating | 2A | Contact Material | Gold To Gold |
| Operating Speed | 0-300 Rpm | Electrical Noise | 1mΩ Min |
| Highlight | mini slip ring,small slip ring |
||
Product Description
30 Circuits Capsule Slip Ring Transferring Analog and Digital Signals with Low Loss but Long Life
LPC-30A Slip Ring Description
Capsule slip rings can transmit high current and high speed with a compact design. Its low contact resistance and optimized heat dissipation structure ensure slip ring to work stably for a long time, all of this can avoid slip ring to strike fire. It uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.
The LPC-30A capsule slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.
Using a 90° V-groove ring design for each ring, the LPC-30A provides smoother running, lower torque and lower electrical noise than competitive slip rings. It is available in 6, 12, 18, 24, 36 circuit models.
LPC-30A Slip Ring Outline drawing
| Specifications | |
| Operating Speed | 0-300 rpm |
| Number of Circuits | 30 |
| Voltage | 240 VAC/DC |
| Current Rating | 2 amps per circuit |
| Temperature Range | -20℃ to +60℃ |
| Contact Material | Gold to Gold |
| Lead Size | 28# silver plated copper |
| Lead Length | Standard 250 mm (9.843inch) |
| Dielectric Strength | ≥500 VAC @50Hz, between each circuit |
| Insulation Resistance | 100 MΩ @ 500 VDC |
| Electrical Noise |
1mΩ Min |
LPC-30A Slip Ring Application Picture
