6 Circuits Miniature Slip Ring with Gold-Gold Contacts and Smooth Running

Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPM-06M
Minimum Order Quantity 1pcs
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 50K units/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Number Of Circuits 6 Voltage 240 VAC/DC
Current Rating 2 Amps Per Circuit Contact Material Gold To Gold
Operating Speed 0-300 Rpm Housing Material Metal
High Light

compact slip ring

,

mini slip ring

Product Description

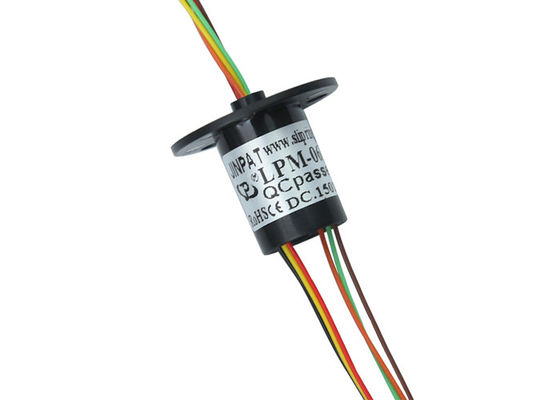

6 Circuits Miniature Slip Ring with Gold-Gold Contacts and Smooth Running



Description



The so-called slip ring is an electrical component responsible for rotator connectivity, energy and signal’s transport. According to the transmission medium, the slip ring is divided into the conductive ring, fluid slip ring, and smooth ring. Also referred to as “rotation connectivity” or“spin-pass. Usually, the slip ring is installed in the center of rotation of equipment, mainly composed of two parts of rotating and stationary. Rotation structure of rotary part is connected with the use of the equipment and subsequent operation, it is called rotor; connecting the fixed structure of the device, it is called stator. Overall slip ring relies on stretch lap principle, the principle of the rolling lap, or sealing principle, and clever movement structure and seal design, precision parts production with a reasonable selection, which forms a stable and reliable connectivity rotation system. As long as the slip ring attached to the unlimited rotating equipment, we can provide the power and energy to the rotating body, while endless rotary movement, but also for another movement, or detect the working condition under the rotation state.



Features

  •  6 circuits models
  •  2 amps per circuit, 240 VAC/ DC
  •  Precision assembly to provide exceptional rotational life
  •  Speed up to 300 rpm continuous
  •  Gold-Gold contacts
  •  Flexible, color-coded, silver-plated lead wires
  •  Superior handling of low-level control signals
  •  Metal housing optional

Advantage

  •  Low torque minimizes system torque budget
  •  Compact design to fit into the most demanding space.
  •  Smooth running
  •  Low electrical noise
  •  Quick shipment per your urgent requirement
  •  360°continuous rotation
  •  Addition of special components

Main Application

  •  Electrical test equipment
  •  Manufacturing and process control equipment
  •  Indexing tables.
  •  CCTV pan / tilt camera mounts
  •  Robotics, rotary sensors, urgent illumination equipment
  •  Exhibit/display equipment.
  •  Aviation, military, instrument, medical equipment
  •  Mini-type wire-rolling machine
  •  Closed-circuit control



Specifications
Operating Speed 0-300 rpm
Number of Circuits 6
Voltage 240 VAC/DC
Current Rating 2 amps per circuit
Temperature Range -20℃ to +60℃
Contact Material Gold to Gold
Lead Size 30# silver plated copper
Lead Length Standard 250 mm (9.843inch)
Dielectric Strength ≥500 VAC @50Hz, between each circuit
Insulation Resistance 1000 MΩ @ 500 VDC
Electronic Noise 1mΩMin
Housing Material Metal
