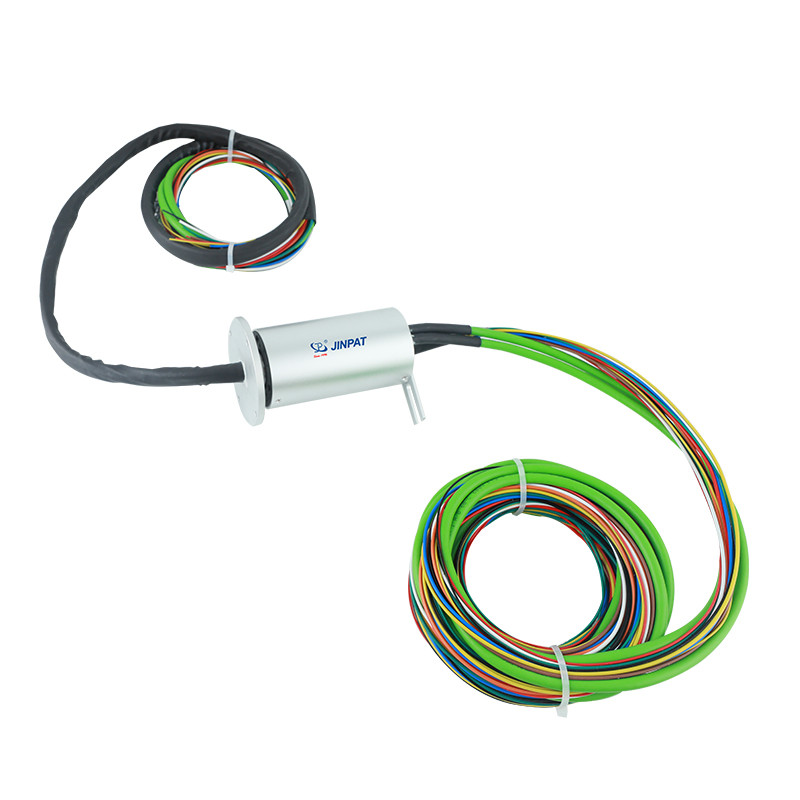

14 Circuit Through Bore Slip Ring with 100Mbps Ethernet IP51

  • 14 Circuit Through Bore Slip Ring with 100Mbps Ethernet IP51
  • 14 Circuit Through Bore Slip Ring with 100Mbps Ethernet IP51
Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPC-24A
Minimum Order Quantity 1pcs
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 50K units/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Lead Wire Length Stator:3000mm Rotor:1500mm Working Speed 0~20rpm
Rating Voltage 24/380V IP Rating IP51
Product Name 14 Circuits Through Bore Slip Ring With 100 Mbps Ethernet Channel Contact Material Precious Metal
Dielectric Strength Signal ≥100V@50Hz Working Temperature -20°C~+80°C
Highlight

14 circuit through bore slip ring

,

slip ring with 100Mbps Ethernet

,

IP51 rotary slip ring
Product Description
14 Circuit Through Bore Slip Ring with 100Mbps Ethernet IP51
Product Overview

The LPT000-0810-0405-2E2 Through Bore Slip Ring provides current and multi-signal channels including 100Mbps Ethernet transmission. Featuring precious metal contacts and IP51 rating, it delivers stable performance in demanding industrial environments including automation, robotic arms, and smart manufacturing applications.

Key Specifications
Attribute Value
Lead Wire Length Stator: 3000mm | Rotor: 1500mm
Working Speed 0-20rpm
Rating Voltage 24/380V
IP Rating IP51
Contact Material Precious Metal
Dielectric Strength Signal ≥100V@50Hz
Working Temperature -20°C to +80°C
Technical Details
Electronic & Electric:
  • Circuits: 14 total (2×10A + 4×5A + 2×100Mbps Ethernet)
  • Dielectric Strength: Power ≥1000V@50Hz | Signal ≥100V@50Hz
  • Insulation Resistance: Power ≥1000MΩ@1000VDC | Signal ≥100MΩ@100VDC
Mechanical & Environmental:
  • Housing Material: Aluminum Alloy
  • Working Humidity: ≤60%RH
  • Applications: Robot arms, automation equipment, intelligent manufacturing
Features
  • 14 circuits including 100Mbps Ethernet channels
  • Precious metal contacts for reliable signal transmission
  • IP51 rated for dust and light water protection
  • Wide operating temperature range (-20°C to +80°C)
  • Extended lead wires for flexible installation
Support & Services
  • Installation guidance and technical support
  • Troubleshooting assistance
  • Maintenance recommendations
  • Repair services
  • Product training
Packaging & Shipping

Product is securely packaged in sturdy cardboard boxes with protective foam padding. Shipped via reputable carriers with tracking information provided.

FAQ
Q: What is the brand name of this product?
A: JINPAT
Q: What is the model number?
A: LPC-24A
Q: What certifications does it have?
A: ISO9001, ISO14000, CE, UL, FCC, and RoHS
Q: Where is it manufactured?
A: China
Q: What is the minimum order quantity?
A: 1 piece
