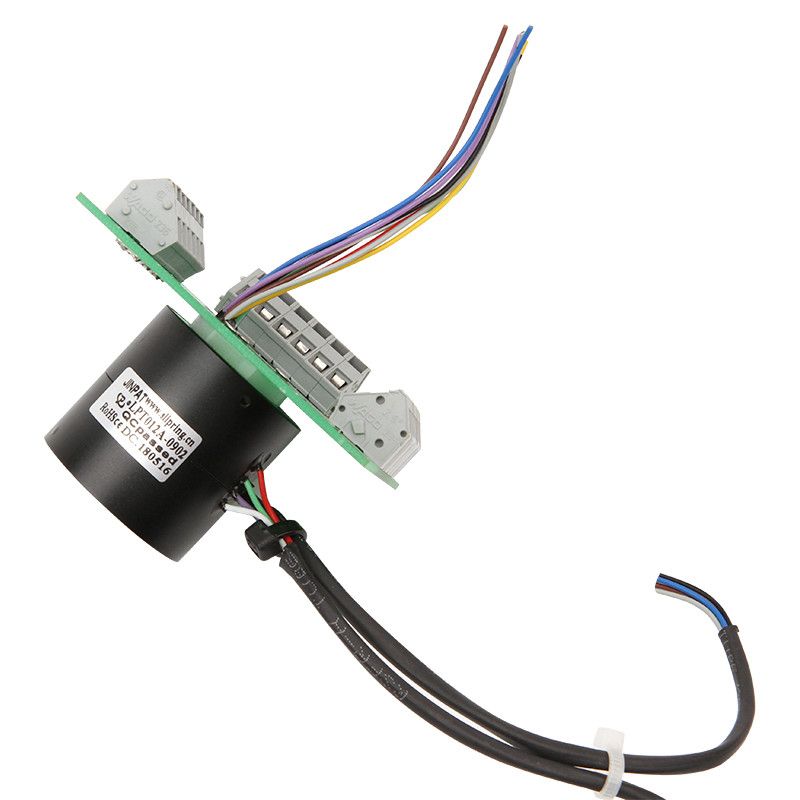

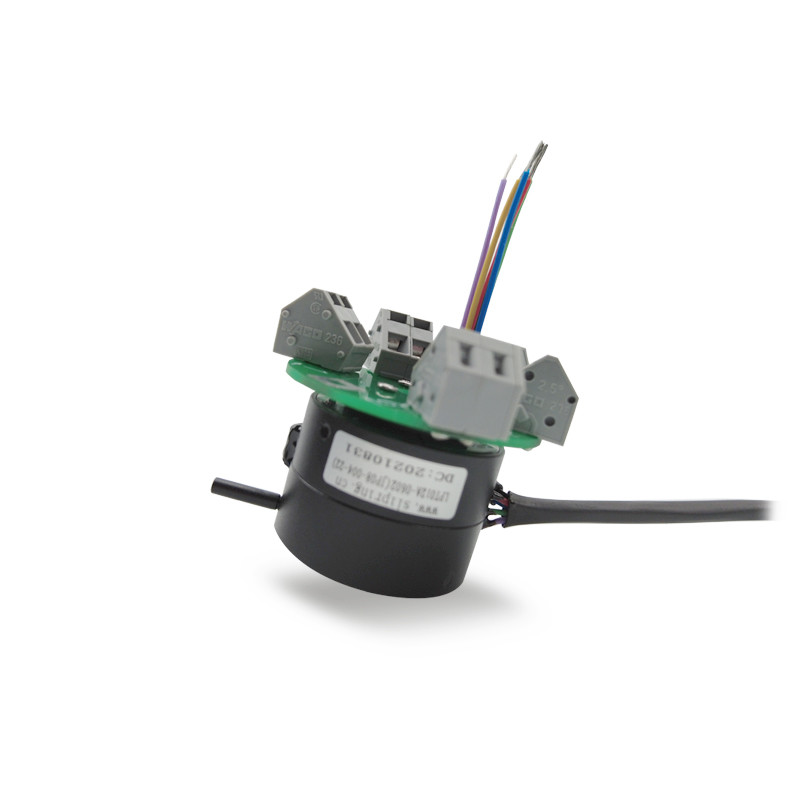

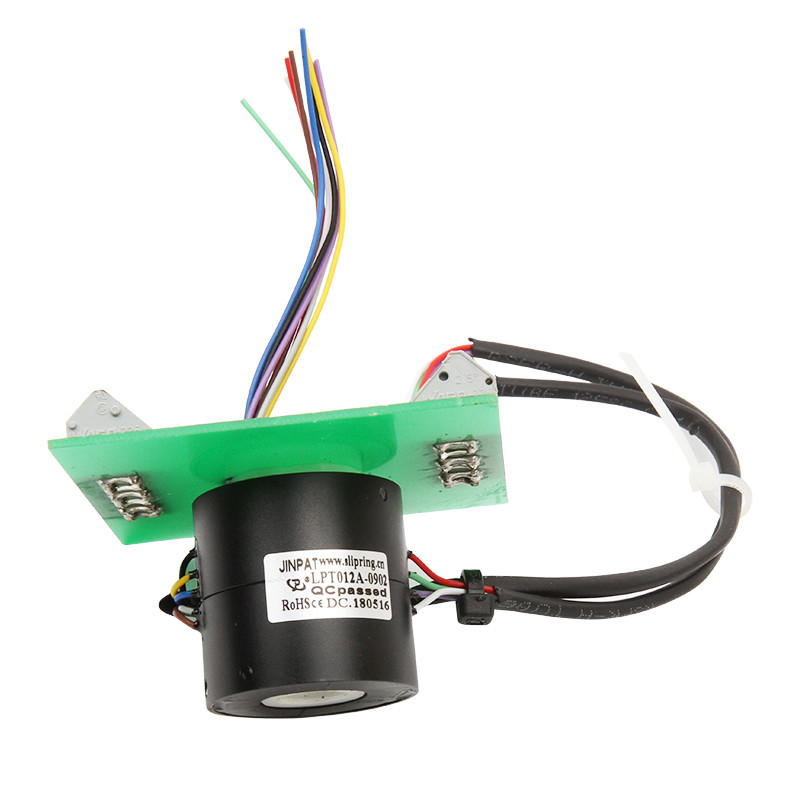

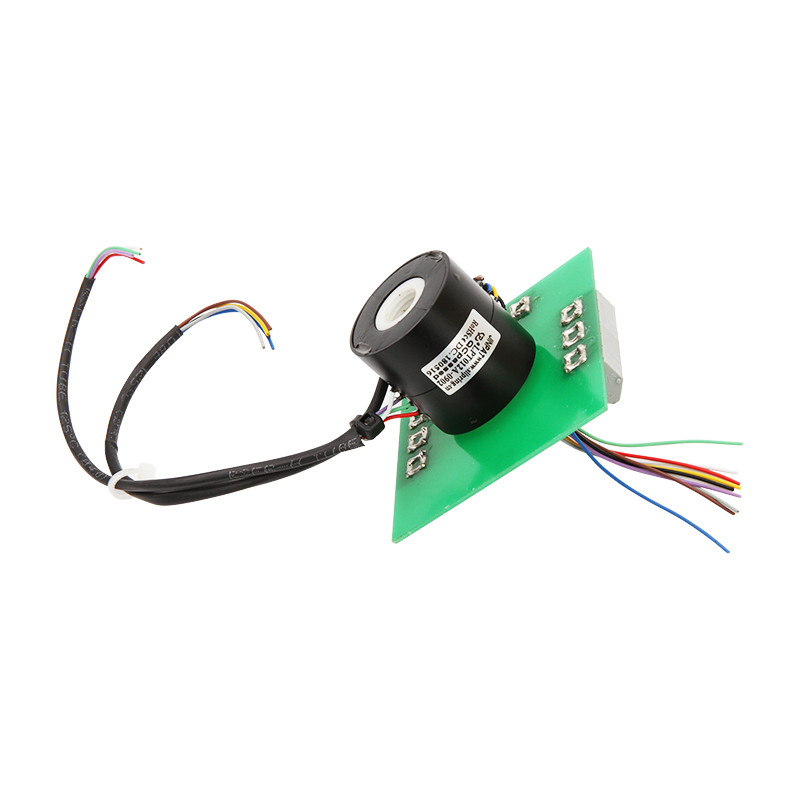

9X2A 220VAC Through Bore Electrical Slip Ring Multiple Slip Ring Models

  • 9X2A 220VAC Through Bore Electrical Slip Ring Multiple Slip Ring Models
  • 9X2A 220VAC Through Bore Electrical Slip Ring Multiple Slip Ring Models
  • 9X2A 220VAC Through Bore Electrical Slip Ring Multiple Slip Ring Models
  • 9X2A 220VAC Through Bore Electrical Slip Ring Multiple Slip Ring Models
Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPT012A-0902
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms T/T, C/C, Paypal
Supply Ability 500 pieces / week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Total 9 CKT Detail 9X2A
Rating Voltage 220VAC Dielectric Strength 500VAC@50Hz
Insulation Resistance ≥300MΩ@300VDC IP IP54
Housing Material Aluminum Alloy Working Speed 0~300rpm
High Light

220VAC Through Bore Electrical Slip Ring

,

RoHS Through Bore Electrical Slip Ring

,

9 CKT Through Bore Slip Ring
Product Description

9X2A 220VAC Through Bore Electrical Slip Ring Multiple Slip Ring Models



through-bore slip rings (the center hole can pass through the drive shaft, gas-liquid passage; it can also integrate high frequency, fiber, encoder, waveguide, gas and liquid and other joints). The use of advanced fiber brush ensures reliable contact under extremely low friction. The center hole is available from 0 to 1000mm. The current is from mA to 5000 amps. The voltage can be up to 10000 volts, which can fully meet different needs of transmission.

LPT012A-0902 Realizing the 360° unrestricted continuous rotation of the swing arm not only solves the problem of twisting and twisting of the wire during rotation, but also increases the contact area by setting multiple contact surfaces and improves the stability. The utility model has the advantages of simple structure, convenient maintenance, safety, reliability, stability and high efficiency.



Electronic & Electruc Mechanical
Circuits Total 9 CKT Working Speed 0~300rpm
Detail 9X2A Inner Diameter /
Rating Voltage 220VAC Contact Material Precious Metal
Dielectric Strength 500VAC@50Hz Housing Material Aluminum Alloy
Insulation Resistance ≥300MΩ@300VDC Lead Wire Length

Stator:250mm

Rotor:80mm
Environment Remarks
Working Temperature -20°C~+60°C Application /
Working Humidity ≤60%RH Other /
IP IP54 Note:"P" stands dor power, "S" stands for signal



Product outline drawing

9X2A 220VAC Through Bore Electrical Slip Ring Multiple Slip Ring Models 0



Feature Of Through Hole Slip Ring

  • Transmit analog and digital signal
  • The power and signal are mixed transmitted, and the signal categories are as follows:
  • Ethernet: Rate (10Mbps/100Mbps/1000Mbps)
  • Industrial Ethernet: EtherNet , EtherCAT ,ProfiNet, Powerlink , SercosIII/IP, etc.
  • HD video: SDI, LVDS, etc.
  • Serial communication: RS232, RS485, RS422, etc.
  • Universal Serial Bus: USB2.0
  • Industrial Fieldbus: CANBus,ProfiBus, InterBus, CC-Link, DeviceNet, etc.
  • Sensor signal: thermal resistance, thermocouple, strain gauge, etc.
  • Long service life, maintenance-free
  • Easy to install
