24 Circuits 2A Single Mode Rotary Slip Ring 300rpm Fiber Optic Rotary Joint

Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPC-1F2402(JP35-012-12HW)
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms T/T, C/C, Paypal
Supply Ability 500 units/week
Product Details
Optical Fiber Type Single Mode Working Wavelength 1310-155nm
Light Power 23dBm Connect Model LC
Working Speed 0-300rpm Dynamic Resistance Fluctuation Value ≤35mΩ
Feature Compact Size
High Light

2A Rotary Slip Ring


Single mode Rotary Slip Ring


300rpm Fiber Optic Rotary Joint

Product Description

24 Circuits 2A Single Mode Capsule Slip Ring 300rpm Fiber Optic Rotary Joint


The LPM micro-capsule slip ring can integrate 30 or more circuits, and the optional outer diameter is 12.5mm~16mm. This series adopts advanced military surface treatment technology, featuring high precision, compactness and easy assembly. The gold-to-gold contact ensures low resistance and long service life. Representative models: LPM 04A / 06A / 12F / 18C / 24A / 30A, etc. It can integrate various signals: Ethernet, USB, RS, LVDS, CAN bus, FireWire, SDI and HDMI, etc. In addition, various non-standard slip rings can be customized.


conductive slip ring Features:
  •  Compact size
  •  Gold-to-gold contact
  •  Low resistance
  •  Long service life
  •  Integrate multifarious signals
conductive slip ring Options:
  • Rotating speed
  • Life span
  • Protection grade
  • Number of circuits
  • Current capacity
  • Size
  • Housing material
  • Mass
  • production
conductive slip ring Main Applications:
  • Radar system
  • Military equipment
  • Medical equipment
  • Industrial automation equipment
  • Wind power equipment
  • Test equipment
  • Turntable equipment
  • Robotics
  • Display equipment
  • Cameras

Product parameter table


Optical fiber Parameter
Optical fiber type Single mode Working wavelength 1310-155nm
Insertion Loss <2dB Return loss >40dB
Insertion Loss-WOW <0.5dB Light power 23dBm
The bending radius ≤10mm Connect Model LC
Electronic & Electric Mechanical
Circuits Total 24CKT Working Speed 0-300rpm
Circuits Detail 24*2A Contact Material Precious Metal
Rating Voitage 240V AC/DC Housing Material Engineering Plastics
Dielectric Strength ≥500VAC@50Hz Lead Wire Length Stator:250±5mm
Insulation Resistance ≥100MΩ@500VDC Dynamic Resistance
Fluctuation Value
Environment Remarks
Working Temperature -20℃~+60℃ Application /
Working Humidity ≤60%RH Other /
IP IP40 Note:"P"stands for power,"S"stands for signal.

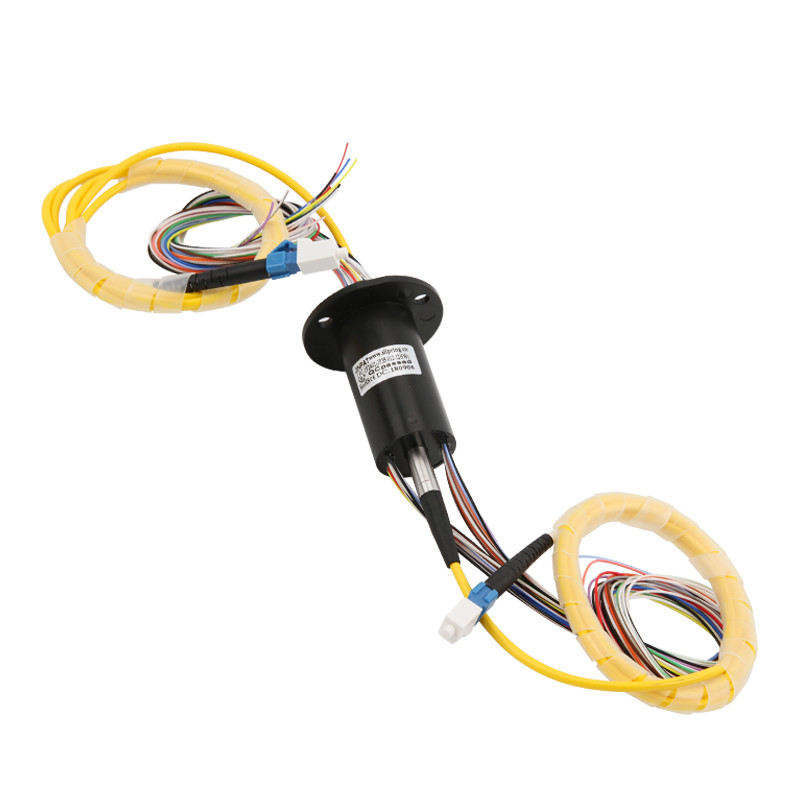

24 Circuits 2A Single Mode Rotary Slip Ring 300rpm Fiber Optic Rotary Joint 0

JINPAT LPC-1F2402(JP35-012-12HW) is an Optical Electronic integrated slip ring model. It has off-the-shelf models. LPC-1F2402 is consist of two modules, one is the optical signal module, the other is the electrical module. The electrical slip ring part is optional in 12 channels, 24 channels, 30 channels and 36 channels. Meanwhile, the optical rotary joint part can be replaced with high frequency slip ring to enable transmission of HDMI or RF signals. JINPAT optical electronic hybrid slip ring is able to maintain a smooth rotation and reliable data transmission. JINPAT adopts first class materials that can improve the electrical properties of the slip ring production. JINPAT optical electronic hybrid slip ring shows excellent interference-resistance and thanks to its low friction during rotation, this model can attain a long product life.
