7 Channel Fiber Optic Rotary Joint with High Return Loss and Optional Connector for Turrets

Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPFO-07
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 500 pieces /Week
Product Details
Type Fiber Optic Rotary Joint Feature Small Volume
Housing Materials Aluminum Alloy Optical Power Optical Power 23 DBm
Characteristic No Leankage Information Communicating
High Light

fibre optic slip ring

,

optical rotary joint

Product Description

7 Channel Fiber Optic Rotary Joint with High Return Loss and Optional Connector for Turrets

Quick detail


The fiber optic rotary connector is also called optic slip ring, fiber optic slip ring, optic hinge and so-so. This slip ring adopts fiber optic as media for transmitting data which provides the best technical solution for elements of the system to transmit data when rotating.


Fiber optic slip rings maintain the intrinsic advantages of fiber end to end. JINPAT Electronics has been producing fiber optic slip rings for 20 years.




Specifications
PerformanceIndex
Circuits3~7 Channels
Working Speed200rpm
Working life100 million
Temperature Range-20℃ to +65℃
Working Humidity60%RH or higher
Optical performance
Fiber TypesSM / MM
Wavelength Range850-1550nm
Crosstalk>50 dB
Mechanical performance
Tensile force10N
Size44mm X 111mm
IPIP65/IP68



 Feature

Provides rotary coupling for a multimode fiber link
Passive bidirectional device
Low cost
Can be combined with our electrical slips and fluid unions
Alternative drive coupling and mounting arrangements are available (consult factory specification details)
Connectorized interfaces, for easy fiber cable replacement
Can be integrated into existing slip ring designs
Aluminum or anodized aluminum housing
Rugged design


Benefit
Maintenance free for 100 million revolutions
Minimal wear debris generation
No lubrication required
Wide operating temperature
Lower life cycle cost
High reliability
No periodic inspections required



Advantage

Typical application
Robots
Material transferring system
Rotating tower of the chariot
Remote control system
Radar antenna
Optical sensing turntable (rate table) transmission and control of high-speed video, digital, analog signal
Medical system
Video monitoring system
Protection of national or international security system for submarine operating system


 Product Display

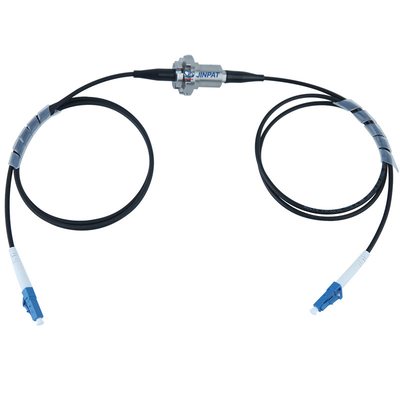

7 Channel Fiber Optic Rotary Joint with High Return Loss and Optional Connector for Turrets 0
Product application(long distance control system)

7 Channel Fiber Optic Rotary Joint with High Return Loss and Optional Connector for Turrets 1

Cooperative Customer Case
7 Channel Fiber Optic Rotary Joint with High Return Loss and Optional Connector for Turrets 2

Company introduction


JINPAT is rich technologically in advanced equipment and high precision test instruments. It covers a wide area of 7000 square meters located in Shenzhen China. We have more than 300 skilled employees. The manpower is so competent that it can meet the needs of various specifications with durability and a reliable quality.

Frequently Asked Questions

What do we do?
We focus on developing, designing and manufacturing high-quality slip rings, and offer various solutions for rotating systems.

How long have we been in the business?
JINPAT has entered into slip rings business since 1996 with thousands of customers accepting our products or services. JINPAT can offer the right solutions to you.

Whom with us?

We have been cooperating and making breakthroughs in different industries. Our expertise can meet various requirements and standards as well as those in the military.

Why should I choose precious metal rather than mercury for contacts?

The primary reason is safety. Mercury is, of course, a toxic substance, so if your application involves food manufacturing or processing, pharmaceutical equipment, or any other use where contamination could be a serious threat, your choice should be precious metal contacts. As we all know, the leakage of mercury and the resultant contamination could.


Notes:
The operating life of the unit depends upon temperature, rotation speed, and environment. Contact us on wire color codes. We can not display more information on the website for sake of keeping trade secrets. Please send your request for more solutions to us via email.
