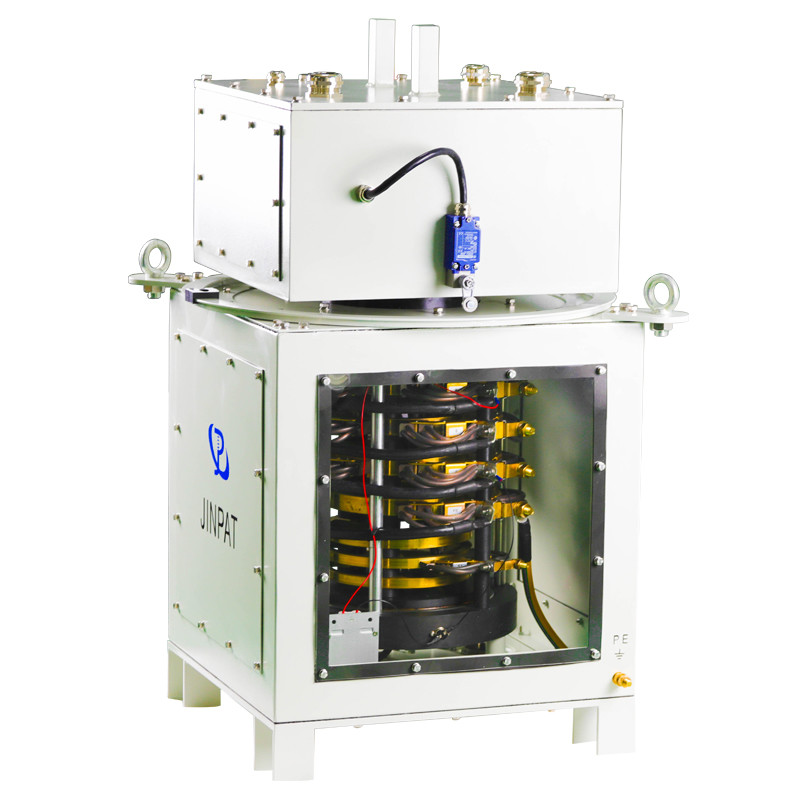

15 Circuits Large Current Slip Ring Routing 100A Current in 230 VAC Volatge
Product Details
| Circuits | 15 Circuits | Working Voltage | 230VAC |
|---|---|---|---|
| Inner Diameter | 390mm | Housing | Aluminum Alloy |
| Working Speed | 0-20RPM | Humidity | 91%RH |
| IP | IP44 | ||
| High Light | 15 Circuits pneumatic slip ring,15 Circuits cable reel slip ring,100A Large Current Slip Ring |
||
Product Description
15 Circuits Large Current Slip Ring Routing 100A Current in 230 VAC Volatge for Marine Equipment
Description
High-current slip ring series are characterized by the higher current capacity, adopt specific design and advanced technology to meet different application requirements. At present, this series we produce can transmit current up to 800 amperes. Please let me know your requirements, we will provide the best solution for you.
Features
● Up to hundreds Ampere
● Transfer current and signals
● Over-long lifetime, no need maintenance, no lubrication
● Compact package
Specifications
| Circuits | 15 Circuits |
| Working Voltage | 230VAC |
| Dielectric Strength | ≥2500V@50Hz/60Hz(100A) ≥100V@50Hz/60Hz(10A) ≥30V@50Hz/60Hz(RS485 S) |
| Insulation | ≥500MΩ@1000VDC(100A) ≥500MΩ@500VDC(10A) ≥100MΩ@300VDC(RS485 S) |
| Working Speed | 0-20RPM |
| Inner Diameter | 398mm |
| Housing | Aluminum Alloy |
| Tempreture | -20℃‐+60℃ |
| Humidity | 91%RH |
| IP | IP44 |
Options
● Circuits
● Signal, power transmitted single or together
● Current &Voltage
● Lead wire length
● Connector
● Housing color
● Protection
Applications
● Rotary heating elements
● Marine Equipment
● Winch for cable reel
● Producing and controlling equipment
Product Display
Company Overview
Cooperative Customer Case
Company introduction
JINPAT has technological advanced equipment and high precision test instruments. It covers a wide area of 7000 square meters located in Shenzhen China. We have more than 300 skilled employees. The manpower is so competent that it can meet the needs of various specifications with durability and a reliable quality.
Notes:
The operating life of the unit depends upon temperature, rotation speed, and environment. Contact us on wire color codes. We can not display more information on the website for sake of keeping trade secrets. Please send your request for more solutions to us via email.
If you want to know more details about JINPAT Slip Rings, Please contact JINPAT, our sales engineers will provide you with recommendations or customizations.
