IP54 38 Circuits Slip Ring Carbon Brushes 112mm Hole Diameter,Free slip ring design
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Circuits | 38 Circuits | Working Voltage | 310VAC/ 50VDC |
|---|---|---|---|
| Inner Diameter | 112mm | Contact | Copper Graphite |
| Working Temperature | -40~+50℃ | Type | 38 Circuits Slip Ring |
| IP | IP54 | Humidity | 98%RH |
| Highlight | IP54 Slip Ring Carbon Brushes,112mm Hole Slip Ring,38 Circuits Slip Ring |
||
Product Description

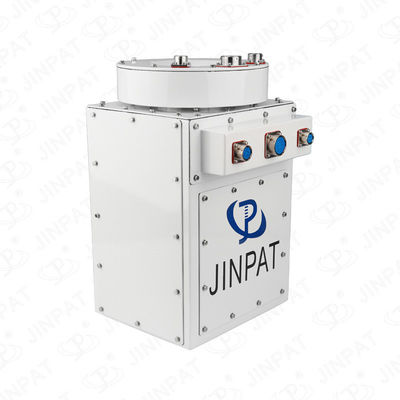

38 Circuits 112mm Hole Diameter Through Hole Slip Ring with Carbon Brush Technology for Marine Equipment
Description
The LPA112-0420-34S through hole slip ring are characterized by the higher current, adopting specific design and advanced technology to meet different application requirements.
Specification
| Circuits | 4 circuits * 20A, 34 circuits *Signal |
| Working Voltage | 310VAC/50VDC |
| Dielectric Strength |
Between circuits ≥500V@50Hz (current) ≥300V@50Hz (signal) |
| Insulation |
500MΩ@500VDC(current) 100MΩ@300VDC(signal) |
| Electrical Noise | ≤70mΩ (50rpm) |
| Working Speed | 0~20 rpm |
| Through Hole | φ112 mm |
| Contact | Copper Graphite |
| Wire Size |
AWG12# Tin plated UL AWG17# Tin plated UL |
| Temperature | -40°C~+50°C |
| Humidity | 98%RH |
| IP | IP54 |
Company Introduction
JINPAT has 20 years experience in SLIP RING manufacturing. Our factory covers an area of 7000 square meters with professional R&D team, advanced production equipment and more than 300 skillful employees. JINPAT slip ring is one of the best-known brands in the Europe and North America. Our manpower is so competent that we meet the demands having varied specifications with ensured durable and reliable quality.
