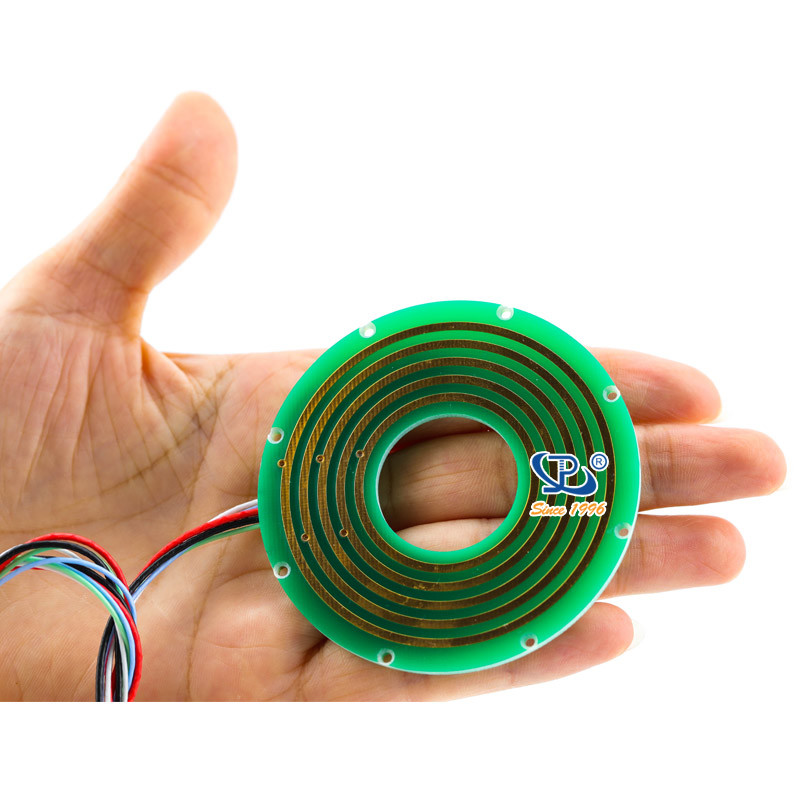

2 Circuits Flat Pancake Slip Ring Large Dielectric Strength

  • 2 Circuits Flat Pancake Slip Ring Large Dielectric Strength
  • 2 Circuits Flat Pancake Slip Ring Large Dielectric Strength
  • 2 Circuits Flat Pancake Slip Ring Large Dielectric Strength
Place of Origin China
Brand Name JINPAT
Certification ISO/CE/RoHS/UL
Model Number LPK024-0207
Minimum Order Quantity 10pcs
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 100 pieces a week
Product Details
Circuits 4 Circuits Voltage Rating 220VDC/AC
Current Rating 7A Per Circuit Contact Material Precious Metal
Highlight

pan cake slip ring

,

high current slip ring
Product Description

2 Circuits Flat Slip Ring with Large Dielectric Strength for Rotary Table pancake slip rings

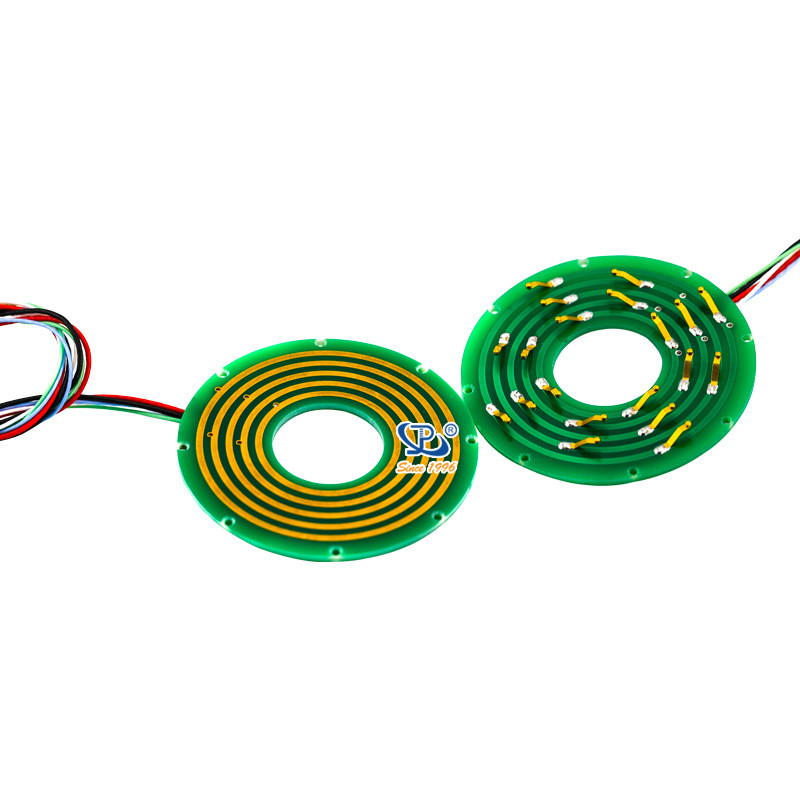

LPK series is a group of Pancake Slip Rings manufactured by JINPAT with the thickness as small as 6mm. They are designed exclusively for rotation systems in which installing space is limited in height at vertical direction. Both copper ring and brush contact surround a central hole, which saves space a lot.



Specification
Electronic & Electric Mechanical
Circuits

2circuits * 7A



 Working Speed 0~20rpm
Working Voltage 220VDC/AC Contact Nobel Metal

Dielectric Strength



≥300VDC@50Hz



 Housing Aluminum Alloy
Insulation 200MΩ@500VDC Wire Length

Stator Wire:500mm

Rotor Wire: 500mm
Environment Remarks
Temperature -40°C~+60°C

Installation Method



Stator is fixed on the customer's flange with screws


IP IP51
