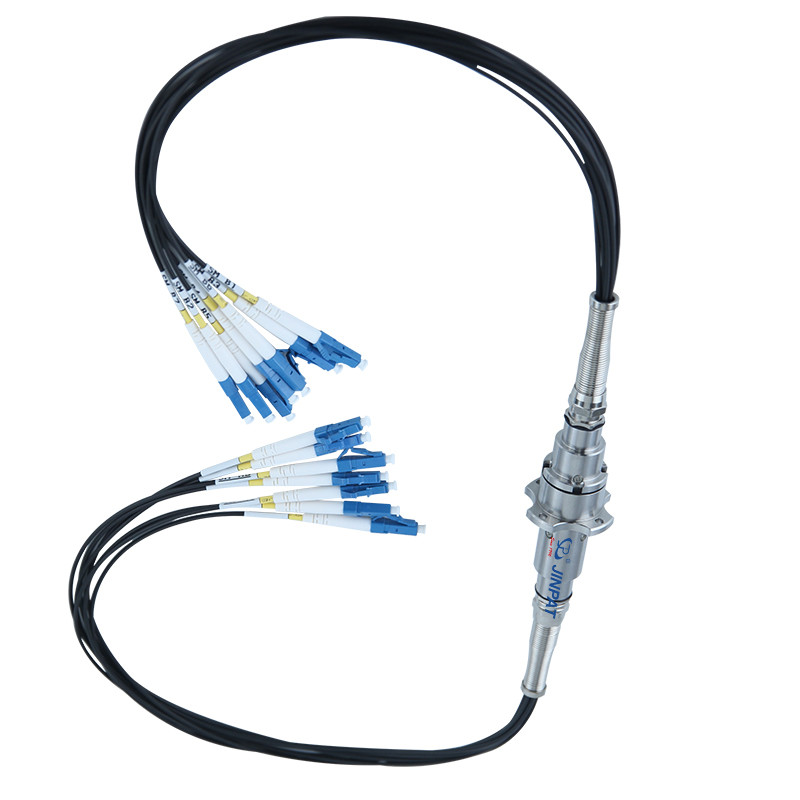

Durable Fiber Optic Cable Joint 6 Channel 300rpm IP65

  • Durable Fiber Optic Cable Joint 6 Channel 300rpm IP65
  • Durable Fiber Optic Cable Joint 6 Channel 300rpm IP65
Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPFO-06N-A
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms T/T, C/C, Paypal
Supply Ability 500 pieces / week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Maximum Speed 300rpm Channel Number 6
IP Rating IP65 Or IP67 Product Name Slip Ring
Shape Other Ip Rating IP54 - IP68
High Light

fibre optic slip ring

,

optical rotary joint
Product Description
Fiber Optic Rotary Joint, also known as fiber optic slip ring, fiber optic rotary connector, optical hinges, etc. This slip ring adopts optical fiber as media for transmitting data, providing the best technical solution for elements of system to transmit data when rotating. It is especially suitable for equipments that require unlimited, continuous or intermittent rotation and transmit large capacity of data and signals from stationary position to rotary position. It can improve mechanical performance, simplify system operation, and avoid damage to fiber optic due to rotation of moving joints. The fiber optic rotary joints can be used with a traditional electric slip ring as a photoelectric hybrid slip ring to transmit power and high speed data.

Mini 6-channel optical fiber slip ring, the installation diameter is only 20mm, the smallest diameter multi-channel optical fiber slip ring in the industry, the performance index is better than similar imported products, super long life, single and multi-mode optional, short delivery time.


Specifications
Fiber types SM or MM Maximum speed 300rpm
Channel number 6 Package style Pigtails on both ends
Wavelength range
SM:1310-1550nm
MM:850/1300nm
 Weight, approx
200g(No tail cable and
connection included)
Insertion loss <4dB Jacket types
2.0mm
(Kevlar/TPU or armor)
Insertion loss ripple <2dB Connector types
FC/SC/ST/LC(PC or APC)
Return loss
SM:≥45dB
MM:≥30dB
 Estimated life cycle >100 million revolutions
Max Optical power 23dBm Vibration MIL-STD-167-1A
Working temperature
-20~+65℃(Industrial grade)
-50~+80℃ (Military grade)
 Mechanical shock MIL-STD-810G
Storage temperature -55~+85℃ IP rating IP65 or IP67

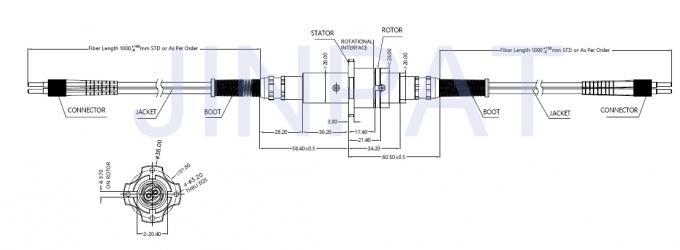

Product outline drawing

Durable Fiber Optic Cable Joint 6 Channel 300rpm IP65 0


Advantages:
  • No contact and friction, long life, up to 10 million rpm (more than 100 million rpm for signal channel )
  • Can combine with multiple signals such as video, series, and Ethernet signal, etc.
  • Use optical fiber to transmit information, no leakage, no electromagnetic interference; can transmit tens of
  • hundreds of kilometers of networking applications over long distances
  • The transmission bandwidth is much larger than the electrical connector, and it can be used to double the
  • bandwidth with the wavelength division multiplexer.
  • Small in volume and light in weight that is easy to integrate with electric slip ring, and system is easy to
  • upgrade and change
  • Providing the world's smallest single-channel fiber optic rotary joint, as well as double-channels, four-chan
  • nels, ten-channel or even more channel for your option
  • Providing photoelectric integrated rotary joint
Options:
  • Fiber optic transmission type is optional, circuits of current and signal are optional
  • Single mode or multi mode, single channel or multiple channel
  • Shape can be customized, housing material and driving connector are optional as well


Installation Instructions

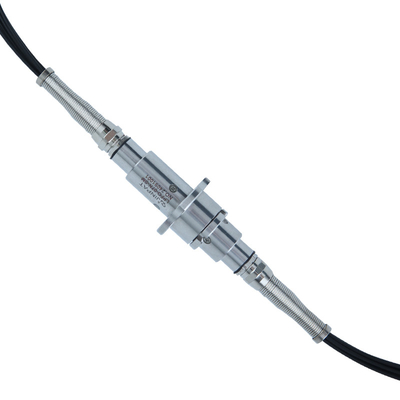

Durable Fiber Optic Cable Joint 6 Channel 300rpm IP65 1



Features of LPFO Fiber Optic Rotary Joints
(Independent Research and Development)

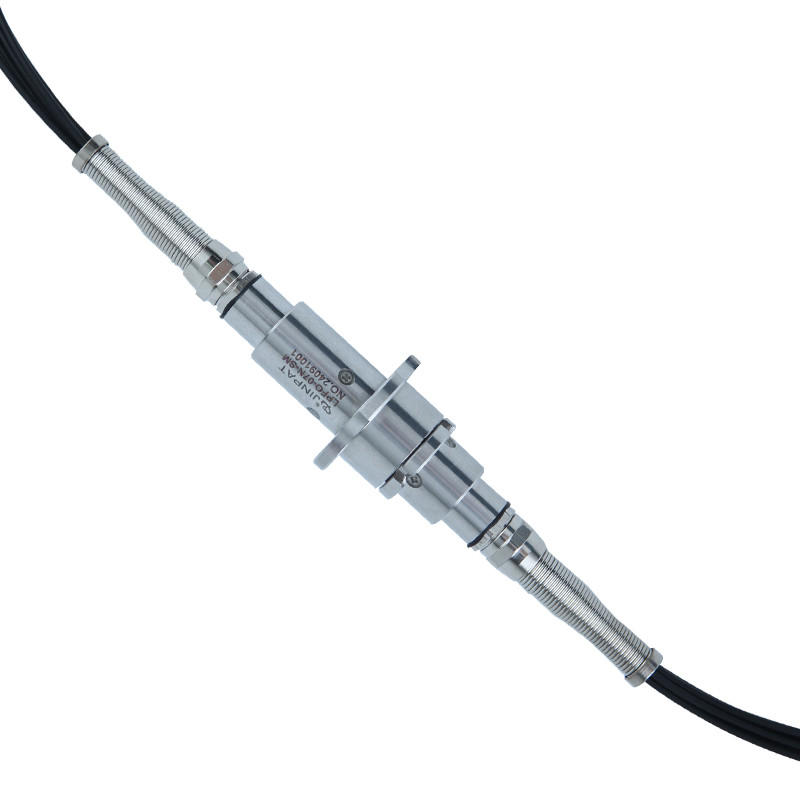

Durable Fiber Optic Cable Joint 6 Channel 300rpm IP65 2
Durable Fiber Optic Cable Joint 6 Channel 300rpm IP65 3
