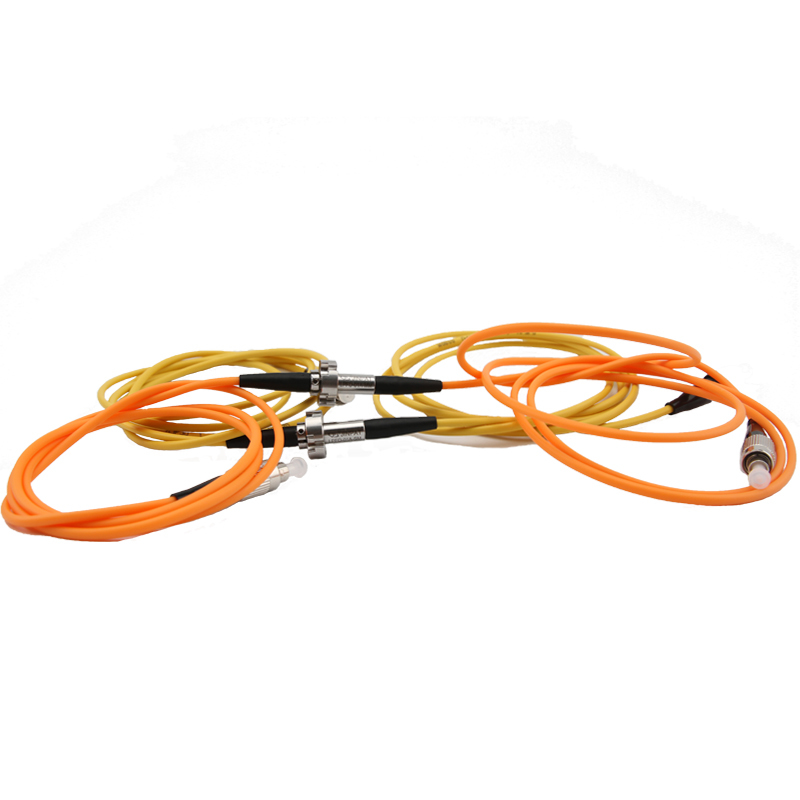

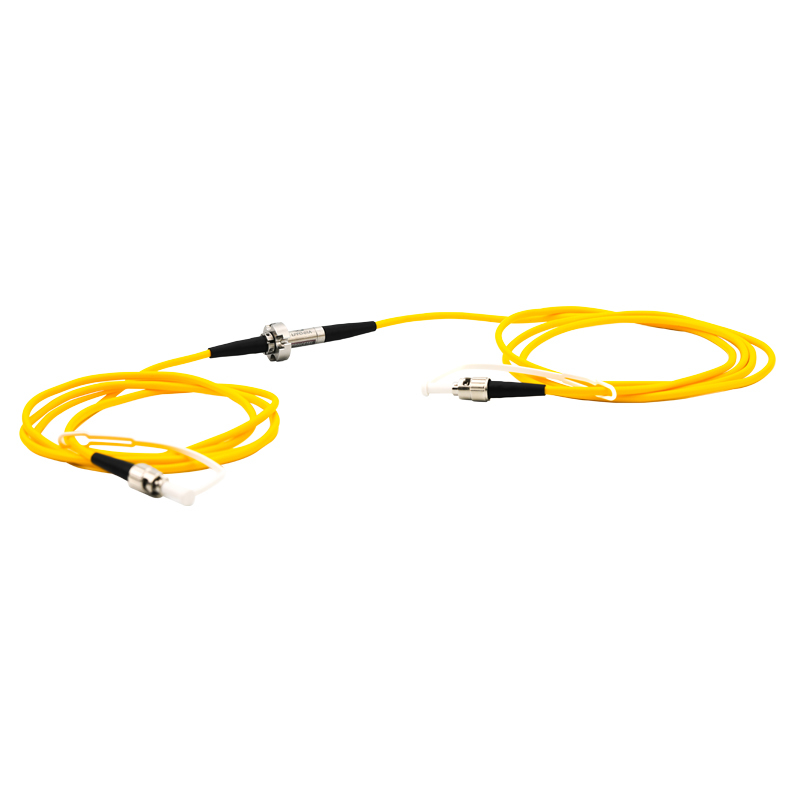

1 Channel Fiber Optic Slip Ring SM MM 2000rpm IP65 IP68
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Fiber Types | SM Or MM | Channel Number | 1 |
|---|---|---|---|
| Wavelength Range | SM:1270-1650nm, MM:650-1300nm | Insertion Loss | <2dB |
| Insertion Loss Ripple | <0.5dB | Return Loss | ≥40dB |
| Max Optical Power | 23dBm | Maximum Speed | 2000rpm |
| Working Temperature | -45～+80℃ | Storage Temperature | -55~+85℃ |
| Weight | 10g (No Tail Cable And Connection Included) | IP Rating | IP65 Or IP68 |
| Life Cycle | >200 Million Revolutions | Connector Types | FC/SC/ST/LC (PC Or APC) |
| Jacket Types | 0.9/2/3mm (Kevlar/PVC Or Armor) | ||
| Highlight | 1 channel fiber optic slip ring,fiber optic rotary joint IP65,SM MM slip ring 2000rpm |
||
Product Description
1 Channel Fiber Optic Slip Ring - SM/MM 2000rpm IP65/IP68 23dBm
Product Attributes
| Type | Electronic Accessories |
|---|---|
| Fiber types | SM or MM |
| Channel number | 1 |
| Wavelength range | SM:1270-1650nm MM:650-1300nm |
| Insertion loss | <2dB |
| Insertion loss ripple | <0.5dB |
Product Overview
LPFO-01A fiber optic rotary joints (also known as optical slip rings or optical rotary connectors) provide the optimal solution for transmitting high-capacity data and signals. These slip rings use optical fiber as the transmission medium and can be integrated with traditional electrical slip rings for hybrid power, signal, and high-speed data transmission.
Key Features
- Optical fiber transmission ensures no leakage and no electrical interference
- Compact and lightweight design
- Contact-free operation with no friction, providing exceptional longevity (over 200 million revolutions)
- Compatible with hybrid electrical slip ring integration
- Pressure-compensated, sealed construction for harsh environments (including underwater to 7000m and space applications)
Technical Specifications
| Fiber types | SM or MM | Connector types | FC/SC/ST/LC (PC or APC) |
|---|---|---|---|
| Channel number | 1 | Estimated life cycle | >200 million revolutions |
| Wavelength range | SM:1270-1650nm MM:650-1300nm |
Vibration | MIL-STD-167-1A |
| Insertion loss | <2dB | Mechanical shock | MIL-STD-810G |
| Insertion loss ripple | <0.5dB | IP rating | IP65 or IP68 |
| Return loss | ≥40dB | Maximum speed | 2000rpm |
| Max Optical power | 23dBm | Working temperature | -45℃ to +80℃ |
| Package style | Pigtails on both ends | Storage temperature | -55℃ to +85℃ |
| Weight (approx.) | 10g (excluding tail cable and connection) | Jacket types | 0.9/2/3mm (Kevlar/PVC or Armor) |
Product Outline Drawing
