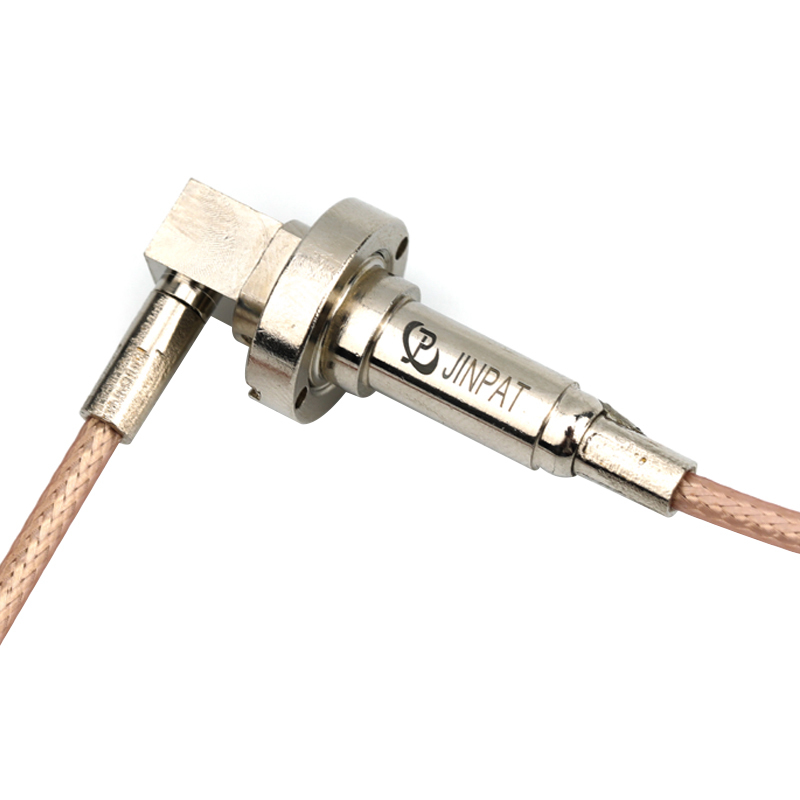

2-Channel Coaxial Rotary Joint 50Ω/75Ω for CCTV Pan Tilt
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Specific Impedance | 50Ω/75Ω | Operating Speed | 0-100 Rpm |
|---|---|---|---|
| Working Temperature | -40℃~ +80℃ | Working Humidity | 60%RH Or Higher |
| Frequency Range | DC-3GHz | Average Load Power | 100W @ DC-2GHz 60W @ DC-3GHz |
| Insulation Resistance | ≥100MΩ@500VDC | Dielectric Strength | ≥1000V@50GHz |
| Insertion Loss | <1.5dB@3GHz | VSWR | 1.8 Max |
| VSWR WOW | 0.1dB Max | Phase WOW | 1° |
| Pull Force | 10N | Housing Material | Brass/Zinc Plating |
| Cable Length | 250mm | ||
| Highlight | 2-channel coaxial rotary joint,50Ω coaxial rotary joint for CCTV,75Ω rotary joint pan tilt |
||
Product Description
2-Channel Slip Ring Coaxial Rotary Joint Operating Smoothly and Reliability, for CCTV Pan Tilt
Product Specifications
| Attribute | Value |
|---|---|
| Type | Electronic Accessories |
| Specific Impedance | 50Ω/75Ω |
| Operating Speed | 0-100 rpm |
| Working Temperature | -40℃~ +80℃ |
| Working Humidity | 60%RH or higher |
Product Description
RF Coaxial Rotary Joint is a mechanical-electrical integration component installed on cables or instruments to transmit or break electrical connections while allowing rotation.
Key Features
- Contact parts feature rare metal with solid gold plating for enhanced durability
- Long-wearing, antioxidant slip ring design ensures extended service life
- Precision-engineered contact pairing for reliable signal transmission
- Compact design with low torque requirements
- High bandwidth transfer capability with low electrical noise
- Available for quick shipment to meet urgent requirements
Technical Parameters
| Frequency Range | DC-3GHz |
| Average Load Power | 100W @ DC-2GHz / 60W @ DC-3GHz |
| Insulation Resistance | ≥100MΩ@500VDC |
| Dielectric Strength | ≥1000V@50GHz |
| Insertion Loss | <1.5dB@3GHz |
| VSWR | 1.8 max |
| Housing Material | Brass/Zinc Plating |
| Contact Material | Gold to Gold |
| IP Rating | IP40 |
Available Options
- High Speed versions available
- Metal housing options
- High sealing degree configurations
- Custom frequency ranges
- Various end lead wire plug types
Applications
- Precision instruments and measurement equipment
- Military weapon systems
- Industrial process control equipment
- Indexing tables and rotary platforms
- CCTV pan/tilt camera mounts
- Robotics and automation systems
- Exhibit and display equipment
- Medical diagnostic equipment
- Aviation and aerospace instrumentation
Product Images
