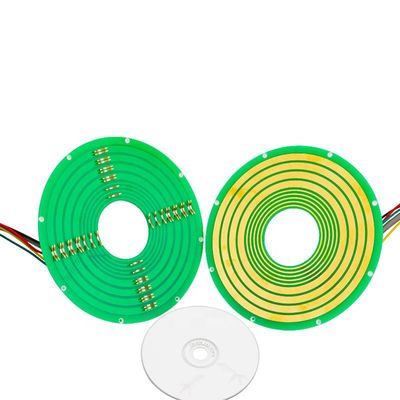

Pancake Slip Ring LPK Series with 5 Circuits 12A Current Rating and 240 VDC Voltage for Industrial Equipment
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Circuit Number | 5 | Current Rating | 12A |
|---|---|---|---|
| Voltage | 240 VDC | Working Speed | 0~60 Rpm |
| Working Temperature | -20~+60℃ | Dielectric Strength | ≥500VAC@50Hz |
| Insulation | 300MΩ@300VDC | Electrical Noise | ≤70mΩ |
| Contact Material | Precious Metal | Housing Material | FR-4 |
| Hole Diameter | φ60mm | Protection Grade | IP54 |
| Ethernet Support | 1pair*100M | Thickness | 6mm |
| Style | Pancake Slip Ring | ||
| Highlight | 5 Circuits Pancake Slip Ring,12A Current Rating LPK Slip Ring,240 VDC Voltage Rotary Slip Ring |
||
Product Description
Pancake Slip Ring - 60mm Hole Size, 4 Circuit with Ethernet Transmission
Product Description
Bargain Price Only in Alibaba
The LPKS060-0412-E2 is a compact pancake slip ring from JINPAT's LPK series, designed specifically for rotation systems with limited vertical installation space. With a minimal thickness of just 6mm, this slip ring features both copper ring and brush contact surrounding a central hole for optimal space efficiency.
This pin connection slip ring enables continuous rotation while transferring power or data between stationary and rotating parts in electromechanical systems. The standard unit features gold contacts at the rotary interface and color-coded lead wires for simplified electrical connections.
Key Features
- High rotating speed capability
- Reliable contact with lightweight design
- Minimal physical noise operation
- 360° continuous rotation for power and signal transmission
- No interference or connection drop
- Fast delivery available
Custom Solutions
- Ready-made photoelectric encoder options
- Choice of solid or hollow shafts
- Other specialized solutions available
Technical Specifications
| Parameter | Value |
|---|---|
| Circuits | 5 |
| Current Rating | 4ckt*12A, 1pair*100M Ethernet |
| Voltage | 240 VDC |
| Dielectric Strength | ≥500VAC@50Hz between circuits |
| Insulation | 300MΩ@300VDC |
| Electrical Noise | ≤70mΩ |
| Working Speed | 0-60 RPM |
| Contact Material | Precious metal |
| Housing | FR-4 |
| Hole Diameter | φ60mm |
| Operating Temperature | -20°C to +60°C |
| Protection Grade | IP54 |
Primary Applications
- Electric devices and equipment
- CT medical imaging machines
- Miniature robotics
- LED display systems
- Compact electronic devices
Product Visuals
About JINPAT Electronics
Founded in 1996, JINPAT Electronics is a leading manufacturer specializing in industrial slip rings for diverse applications. Our product range includes Capsule Slip Rings, Through-bore Slip Rings, Large-current Slip Rings, Coax Rotary Joints, Fiber Optic Slip Rings, and more. We support custom solutions for specialized requirements including Ethernet, USB, HDMI, Sensor, CAN Bus, and other interfaces.
All products are manufactured under our ISO9001:2008/ISO14001:2015 certified quality management system, ensuring reliability and performance.
