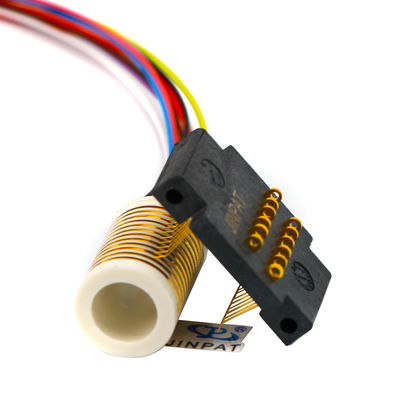

Compact 12 Circuits Separate Slip Ring with 360° Continuous Rotation for Smooth Power Transfer

  • Compact 12 Circuits Separate Slip Ring with 360° Continuous Rotation for Smooth Power Transfer
Place of Origin Guangdong, China
Brand Name JINPAT
Model Number LPS-12
Minimum Order Quantity 1
Price $80

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Number Of Circuits 12 Operating Speed 0-100 Rpm
Voltage 240 VAC/DC Current Rating 1-3A
Temperature Range -20℃ To +60℃ Working Humidity 60%RH Or Higher
Contact Material Gold To Gold Lead Size 28 # Silver Plated Copper
Lead Length 250 Mm (9.843inch) Dielectric Strength ≥200 VAC @50Hz, Between Each Circuit
Body Material Precious Metal Insulation Resistance 50 MΩ @ 500 VDC
Electrical Noise 30 MΩMin Max Speed 200 Rpm Continuous
Rotation 360° Continuous
Highlight

12 Circuits Separate Slip Ring

,

360° Continuous Rotation Slip Ring

,

Compact Separate Slip Ring
Product Description
Compact LPS-12 Gold Separate Slip Ring - 12 Circuits
This high-quality slip ring unit is designed for electromechanical systems requiring continuous rotation while transferring power or data between stationary and rotating structures. Also known as rotary electrical interfaces or electrical rotary joints, these components enhance system capability, simplify design, and prevent damage during rotation.
Key Features
  • 12-circuit standard model with gold contacts
  • Operates at speeds up to 200 rpm continuously
  • 250mm standard lead length with color-coded wiring
  • Compatible with various data bus protocols
  • Available in sealed configurations
  • Precision ball bearings for extended service life
  • 90° V-groove design for smooth operation
Performance Advantages
  • Minimal torque requirements for system efficiency
  • Compact footprint for space-constrained applications
  • Exceptionally smooth rotation characteristics
  • Low electrical noise for signal integrity
  • 360° continuous rotation capability
  • High bandwidth transfer capacity
  • Rapid shipping available for urgent requirements
Technical Specifications
Parameter Value
Operating Speed 0-100 rpm
Number of Circuits 12
Voltage Rating 240 VAC/DC
Current Rating 1-3A
Temperature Range -20℃ to +60℃
Contact Material Gold to Gold
Dielectric Strength ≥200 VAC @50Hz
Insulation Resistance 50 MΩ @ 500 VDC
Typical Applications
  • Electrical test equipment and instrumentation
  • Manufacturing and process control systems
  • Robotics and rotary sensor applications
  • CCTV pan/tilt camera mechanisms
  • Medical and aviation equipment
  • Exhibit/display rotation systems
  • Custom and OEM machinery
Compact 12 Circuits Separate Slip Ring with 360° Continuous Rotation for Smooth Power Transfer 0 Compact 12 Circuits Separate Slip Ring with 360° Continuous Rotation for Smooth Power Transfer 1
Manufacturer Information
JINPAT Electronics specializes in high-quality slip ring solutions with:
  • 12,000+ square meter production facility with 500+ employees
  • 69 patents and National High-Tech Enterprise recognition
  • 20+ years of R&D and manufacturing experience since 1996
  • 10,000+ successful designs across commercial and military applications
  • Global partnerships with leading enterprises
  • Custom engineering solutions available
Compact 12 Circuits Separate Slip Ring with 360° Continuous Rotation for Smooth Power Transfer 2 Compact 12 Circuits Separate Slip Ring with 360° Continuous Rotation for Smooth Power Transfer 3
Frequently Asked Questions
What is a slip ring?
A slip ring is an electromechanical device that enables power and signal transmission between stationary and rotating components, eliminating damage-prone dangling wires while improving system performance.
Product Selection Guidance
For optimal slip ring selection, consider your application's circuit requirements, voltage/current specifications, operating speed, and mounting configuration. Our engineering team offers complimentary consultation for custom solutions.
