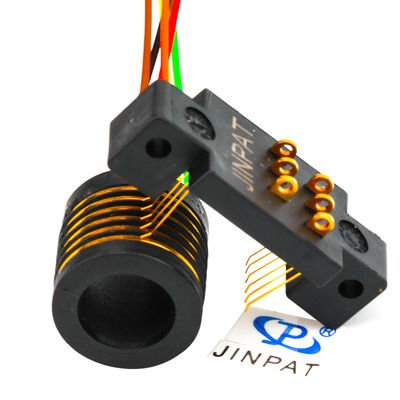

6 Circuit 240V Voltage Separate Slip Ring with 0~300 RPM for Electrical Test Equipment
Product Details
| Circuit Number | 6 | Current Rating | 2A |
|---|---|---|---|
| Voltage | 240 VAC | Working Speed | 0~300 Rpm |
| Working Temperature | -20~+60℃ | Dielectric Strength | 500V@50Hz Between Circuits |
| Insulation | 100MΩ@500VDC | Contact Material | Precious Metal |
| Wire Size | 28# Silver Plated Copper Teflon UL | Lead Wire Length | Rotor:250±5mm |
| Style | Separate Slip Ring | Stator Connection | Optional |
| Wire Type | Color-coded Lead Wires | Interface Material | Gold Contacts |
| Installation Type | Easy To Install | ||
| Highlight | 6 Circuit Separate Slip Ring,240V Voltage Electrical Slip Ring,0~300 RPM Rotary Slip Ring |
||
Product Description
6 Circuit Separate Slip Ring with 240V Voltage for Electrical Test Equipment
Premium Quality Slip Ring for Continuous Rotation Applications
The LPS-06 separate slip ring is designed for electromechanical systems requiring continuous rotation while transferring power or data between stationary and rotating components. This standard unit features gold contacts at the rotary interface and color-coded lead wires for simplified electrical connections.
Key Features
- Separate stator and rotor design
- Capable of transmitting power and weak signal combinations
- Optional stator connection configurations
- Low electrical resistance
- Simple installation process
- Compact design for space-constrained applications
Performance Advantages
- Extended operational lifespan
- Rapid delivery available
- Customization options to meet specific requirements
Technical Specifications
| Parameter | Value |
|---|---|
| Circuits | 6 |
| Current Rating | 2A |
| Voltage | 240 VAC |
| Dielectric Strength | 500V@50Hz between circuits |
| Insulation | 100MΩ@500VDC |
| Working Speed | 0-300 RPM |
| Contact Material | Precious metal |
| Wire Specification | 28# silver plated copper Teflon UL |
| Lead Wire Length | Rotor: 250±5mm |
| Operating Temperature | -20°C to +60°C |
Typical Applications
- Electrical testing equipment
- CT scanning machines
- Compact robotic systems
- LED display technology
- Miniature electronic devices
Product Visualization
Manufacturer Profile
JINPAT Electronics, established in 1996, is a leading manufacturer specializing in industrial slip rings for diverse applications. The company maintains a comprehensive product line including capsule slip rings, through-bore slip rings, high-current slip rings, and custom solutions for specialized interfaces.
Corporate Advantages
- 12,000+ square meter production facility with 500+ employees
- Recognized as National High and New Technology enterprise
- Holder of 69 technology patents
- Global partnerships with industry leaders
- 10,000+ successful design implementations
- 20+ years of research and development experience
- Complimentary custom engineering solutions
- Expedited order fulfillment
