Compact Design Separate Slip Ring with 4 Circuits and 240 VAC/DC Voltage for Flexible UAV Systems

  • Compact Design Separate Slip Ring with 4 Circuits and 240 VAC/DC Voltage for Flexible UAV Systems
Place of Origin Guangdong, China
Brand Name JINPAT
Model Number LPS-04
Minimum Order Quantity 1
Price $17

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage 240 VAC/DC Current Rating 1-3A
Working Humidity 60%RH Or Higher Contact Material Gold To Gold
Body Material Precious Metal Number Of Circuits 4
Insulation Resistance 50 MΩ @ 500 VDC Operating Speed 0-100 Rpm
Outer Diameter Φ2.9 Mm Working Temperature -20~ +60°C
Dielectric Strength ≥200 VAC And 50Hz, Between Each Circuit Electrical Noise 30 MΩ Min
Lead Wire Length Standard 250mm Lead Size 32# Silver Plated Copper
Max Speed 200 Rpm Continuous
Highlight

4 Circuits Separate Slip Ring

,

240 VAC/DC Voltage Slip Ring

,

Compact Design Rotary Electrical Connector
Product Description

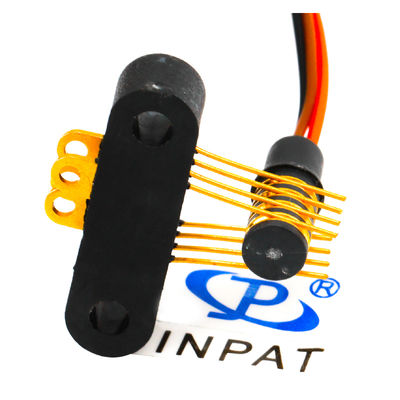

Compact Design Separate Slip Ring, 4 Circuits, For Flexible UAV System
Product Overview
Sometimes a self-contained "capsule" slip ring is not practical due to system size constraints or cost limitations. We provide the slip ring (rotor) and brush block (stator) as separate components for customer integration. The rotor features consecutive individual rings along the axis of rotation in a drum configuration.
Quick Details
Model LPS-04 (solid)
Number of circuits 4
Voltage 240 VAC/DC
Insulation Resistance 50 MΩ @ 500 VDC
Current Rating 1-3A
Operating Speed 0-100 rpm
Key Features
  • 4 circuit configuration
  • Speed up to 200 rpm continuous operation
  • Gold-to-gold contacts for reliable performance
  • 250mm standard lead lengths
  • Compatible with data bus protocols
  • Sealed unit options available
  • Flexible, color-coded, silver-plated lead wires
  • Precision ball bearings exceed commercial application life requirements
Compact Design Separate Slip Ring with 4 Circuits and 240 VAC/DC Voltage for Flexible UAV Systems 0
Technical Specifications
Circuits 4 circuits OD (mm) Φ2.9
Operating Speed 0-100rpm Voltage Rating 240VAC/DC or higher
Working Temperature -20°C to +60°C Current Rating 1-3A
Working Humidity 60%RH or higher Dielectric Strength ≥200 VAC at 50Hz between circuits
Insulation Resistance 50MΩ at 500VDC Electrical Noise 30 mΩ Min
Contact Material Gold to Gold Lead Wire Length Standard 250mm
Housing Material Precious metal Lead Size 32# silver plated copper
Product Advantages
  • Low torque design minimizes system torque budget
  • Compact footprint fits demanding space requirements
  • Smooth operation with minimal electrical noise
  • Quick shipment available for urgent requirements
  • 360° continuous rotation capability
  • High bandwidth transfer performance
Company Information
JINPAT Electronics specializes in high-quality slip ring solutions with over 20 years of experience. Our 12,000 square meter facility and 500+ employees support a wide range of commercial, industrial, and military applications.
Frequently Asked Questions
What is a slip ring?
An electromechanical device that transmits power and signals between stationary and rotating structures, eliminating damage-prone dangling wires.
Do you offer custom solutions?
Yes, our engineering team can develop custom slip rings tailored to your specific requirements.
Note: Additional product solutions available upon request. Contact us for custom requirements.
