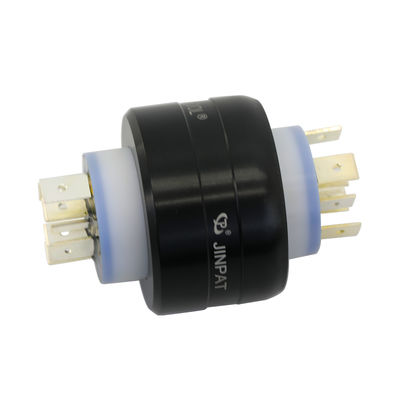

JINPAT 6-Pole 1000RPM Mercury Slip Ring with 6 Channels for Stable Power and Signal Transfer

  • JINPAT 6-Pole 1000RPM Mercury Slip Ring with 6 Channels for Stable Power and Signal Transfer
Place of Origin Guangdong, China
Brand Name JINPAT
Model Number A6H
Minimum Order Quantity 1
Price $335

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Number Of Poles 6 Maximum Speed 1000RPM
Working Temperature -30℃~ +60℃ Voltage Rating 250VAC/DC Or Higher
Current Rating 30 A@ 2 Circuits;4A@ 2 Circuits Dielectric Strength ≥200V@200Hz Between Each Circuit
Insulation Resistance >25MΩ Electrical Noise ≤30mΩ
Contact Resistance <1mΩ Number Of Channels 6channels
Out Case Material Aluminum Alloy Or Stainless Steel Operating Speed 0-1000rpm
Signal Compatibility Micro-voltage, Current, EMF, Thermocouple, Strain Gauge, Audio, Video, High Frequency Power Compatibility Electric Power Connections
Special Technologies Special Insulation, Sealing, And Conductive Technologies
Highlight

6-Pole Slip Ring

,

1000RPM Mercury Slip Ring

,

6 Channels Rotary Electrical Connector
Product Description
JINPAT 6-Pole Mercury Slip Ring with Special Sealing Materials
Premium Electrical Contacts for Stable Connection
Special promotional price available exclusively on Alibaba
JINPAT rotating electrical connectors utilize advanced insulation, sealing, and conductive technologies. The outer casing is constructed from durable aluminum alloy or stainless steel, designed for reliable performance in various rotating applications.
Technical Specifications
Parameter Value
Poles 6
Operating Speed 0-1000rpm
Working Temperature -30℃ to +60℃
Voltage Rating 250VAC/DC or higher
Current Rating 30A @ 2 circuits; 4A @ 2 circuits
Dielectric Strength ≥200V @ 200Hz between each circuit
Insulation Resistance >25MΩ
Electrical Noise ≤30mΩ
Key Advantages
  • Mercury-free design compliant with CE RoHS standards
  • Exceptionally low electrical noise
  • Minimal contact resistance (less than 1mΩ)
  • Maintenance-free operation with superior reliability compared to traditional slip rings
  • Ideal for both signal and power transfer in rotating equipment
Primary Applications
  • Spinning LED displays and wind turbines
  • Electroplating lines and power connections
  • Resistor cutting machines and speed dome cameras
  • Packaging machinery and heating rollers
  • Laminating equipment and wind machines
  • Rotary stages and cable wheels
  • Circular knitting machines and coloring devices
  • Robotics and rotary lamp boxes
  • Medical equipment and index tables
Product Images
JINPAT 6-Pole 1000RPM Mercury Slip Ring with 6 Channels for Stable Power and Signal Transfer 0 JINPAT 6-Pole 1000RPM Mercury Slip Ring with 6 Channels for Stable Power and Signal Transfer 1
Company Advantages
  • 12,000 square meter production facility with 500+ employees
  • Recognized as National High and New Technology enterprise with 69 patents
  • Global partnerships with renowned companies and worldwide agents
  • 10,000+ successful designs across civil, military, commercial, and industrial applications
  • 20+ years of experience since founding in 1996
  • Custom slip ring solutions tailored to specific equipment requirements
  • Fast delivery times
Frequently Asked Questions
What do we do?
We specialize in developing, designing, and manufacturing high-quality slip rings, providing comprehensive solutions for rotating systems.
What is a slip ring?
A slip ring is an electromechanical device that enables power and signal transmission between stationary and rotating structures, eliminating the need for dangling wires and improving system reliability.
Product offerings
  • Electrical slip rings (capsule, through-bore, miniature)
  • Signal slip rings (USB, fiber optic, high frequency)
  • Pneumatic/Hydraulic Rotary Unions
  • Custom slip ring solutions
  • Large volume production capabilities
How to select a slip ring?
Proper selection requires details about your application's operating parameters including circuit count, voltage/current requirements, operating speed, and mounting configuration.
Custom solutions
We offer custom slip ring designs tailored to your specific requirements. Our engineering team will develop the perfect solution for your application needs.
