11 Circuit Hybrid Slip Ring for USB2.0 24VAC 300rpm

  • 11 Circuit Hybrid Slip Ring for USB2.0 24VAC 300rpm
  • 11 Circuit Hybrid Slip Ring for USB2.0 24VAC 300rpm
  • 11 Circuit Hybrid Slip Ring for USB2.0 24VAC 300rpm
  • 11 Circuit Hybrid Slip Ring for USB2.0 24VAC 300rpm
Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPT025-0202-E3-U2
Minimum Order Quantity 1
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 500 pieces /Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Circuits 11 Circuits Operating Speed 0-300rpm
Working Temperature 60%RH Voltage Rating 24 VAC
Electric Noise 70mΩ Max Name Signal Slip Ring
Highlight

Hybrid Transmission Ethernet Slip Ring

,

1000Mbps Signal Slip Rings

,

IP50 Ethernet Signal Slip Rings
Product Description
Hybrid Slip Ring Transferring USB2.0 11 Circuits
Product Overview

Hybrid Slip Ring designed for transferring USB2.0 and Gigabit Ethernet signals with 25.4mm hole diameter (Model: LPT025-0202-E3-U2). This industrial-grade solution combines high-speed data transmission with reliable power delivery in rotating systems.

Key Specifications
Attribute Value
Circuits 11 circuits
Operating Speed 0-300rpm
Working Temperature -20°C to +60°C
Working Humidity ≤60%RH
Voltage Rating 24 VAC/DC
Electric Noise 70mΩ Max
IP Rating IP50
Technical Features
  • High-speed transmission up to 1000Mbps for Gigabit Ethernet
  • Hybrid transmission of power signals and complex data signals
  • Precious metal contacts for low electrical noise and extended service life
  • Aluminum alloy housing for durability
  • Multiple connector options available
  • Supports various industrial protocols including Sercos III, Powerlink, ProfiNet, EtherCAT, Ethernet/IP and Modbus/TCP
Electrical Specifications
Total Circuits 16 CKT
Configuration 2X2A / 1Group 1000Mbps Ethernet + 1Group USB2.0
Dielectric Strength ≥500VAC@50Hz(P) / 300VAC@50Hz(S)
Insulation Resistance ≥500MΩ@500VDC(P) / ≥100MΩ@300VDC(S)
Mechanical Specifications
Inner Diameter φ25.4mm
Working Speed 0~300rpm
Contact Material Precious Metal
Housing Material Aluminum Alloy
Lead Wire Length Stator: 1000mm / Rotor: 1000mm
Model: LPT025-0202-E3-U2

Note: "P" stands for power, "S" stands for signal

Product Visuals
Outline Drawing
11 Circuit Hybrid Slip Ring for USB2.0 24VAC 300rpm 0

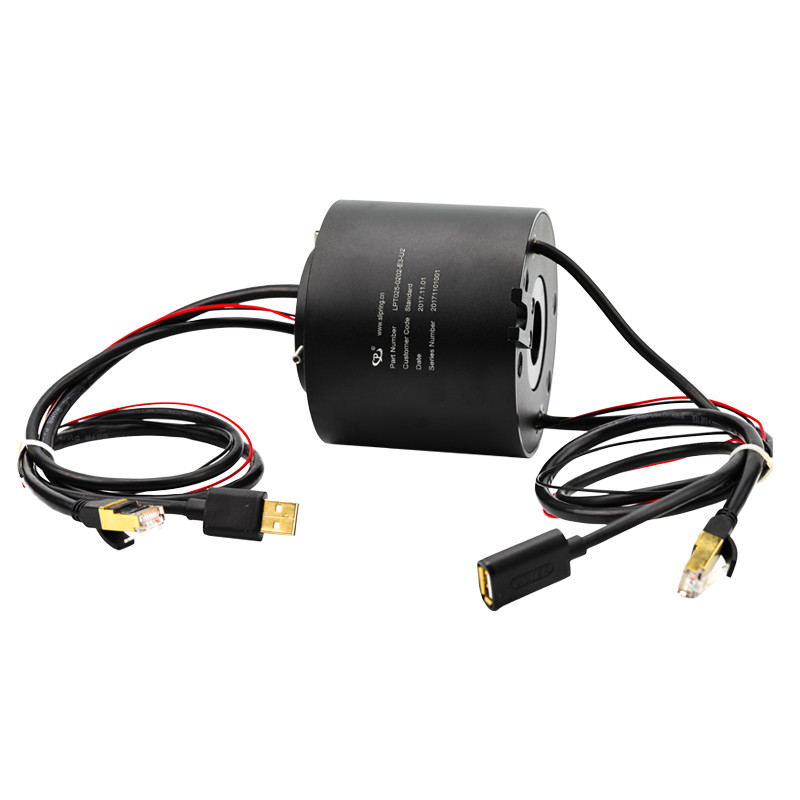

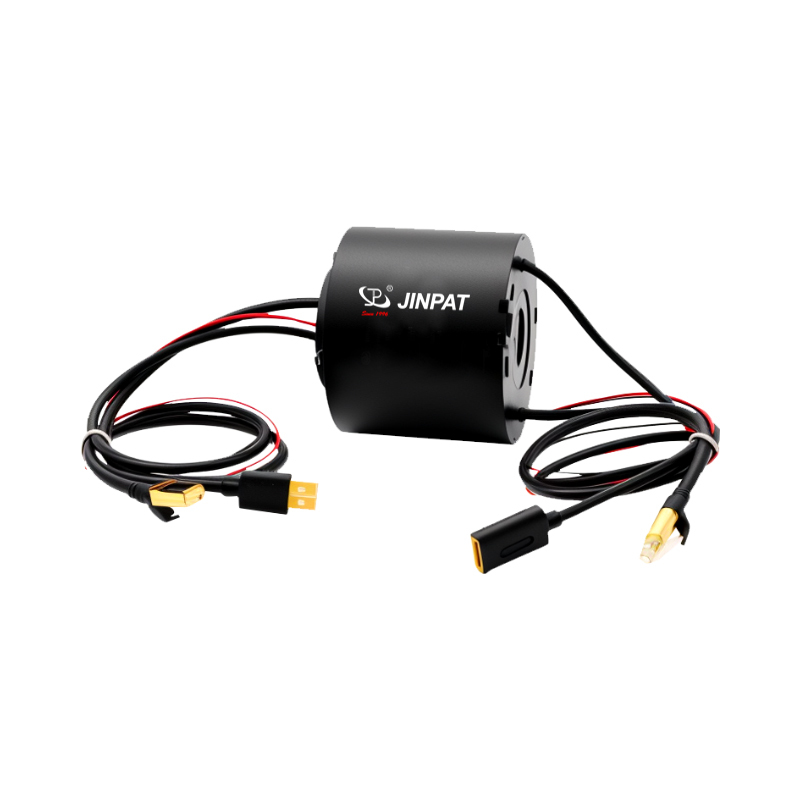

Product Display
11 Circuit Hybrid Slip Ring for USB2.0 24VAC 300rpm 1
