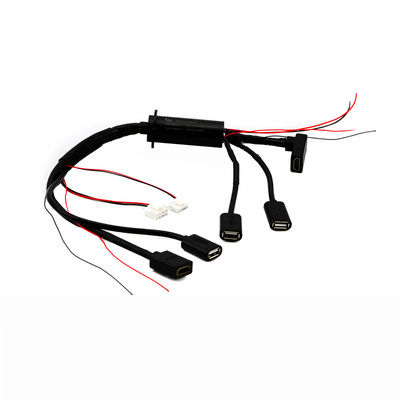

Signal Slip Rings, IP54 2 circuit 1.5A VR Slip Ring

  • Signal Slip Rings, IP54 2 circuit 1.5A VR Slip Ring
  • Signal Slip Rings, IP54 2 circuit 1.5A VR Slip Ring
  • Signal Slip Rings, IP54 2 circuit 1.5A VR Slip Ring
Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPC-0104-0402-HD01-U2
Minimum Order Quantity 1pcs
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 12days ARO
Payment Terms TT/CC/Paypal
Supply Ability 50K units/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model LPC-0104-0402-HD01-U2 Number Of Circuits 1,4
Current 4A,2A Application High-definition Video Surveillance, Serial Communication, Industrial Automatic Control
Name Signal Slip Rings Type Shock Resistance
Highlight

Shock Resistance Signal Slip Rings

,

Precious Metal Signal Slip Rings

,

IP54 Waterproof Slip Ring
Product Description
Product Description
Signal slip ring



The slip ring can achieve the data transmission between rotating platform and static platform, in order to solve the rotating system components between the large-capacity data and signal transmission, providing the best technical solutions. JINPAT is in the national leading level on this technology field.

The LPC-0104-0402-HD01-U2(JP18-122-04HW) can transmit electric signal, high definition, and USB2.0 signal.



Product advantages and characteristics

  • Can transmit USB3.0 signals, power and ordinary signals while transmitting HDMI high-definition video signals
  • The product is light in weight and compact in structure, which reduces the weight of the whole VR equipment and reduces the installation space.
  • Made of precious metal contact material, aluminum alloy as external material, protection grade IP65
  • Long life, reaching 10 million rpm
  • Wire length can be customized, waterproof, pressure resistant, shock resistant
  • Ready-made built-in connector, high transmission rate



Protection Grade IP54
Working Speed 0~100RPM
Circuits 2 circuit * 1.5A, 1 circuit * DC, 2 circuit * 4A, 1 circuit HDMI, 1 circuit * USB2.0
Voltage 240V
Working Temperature -20~+60℃
Electric shock material Gold to Gold
Humidity 60%RH
Insulation

50MΩ@200V(Current loop)

20MΩ@100V(Signal ring)
Housing material Aluminum alloy
Characteristic Impedance ≤15Ω

Outline

Signal Slip Rings, IP54 2 circuit 1.5A VR Slip Ring 0



Signal Slip Rings, IP54 2 circuit 1.5A VR Slip Ring 1



Typical applications



high-definition video surveillance,serial communication, industrial automatic control We can customize all kinds of special slip rings according to your requirements.
