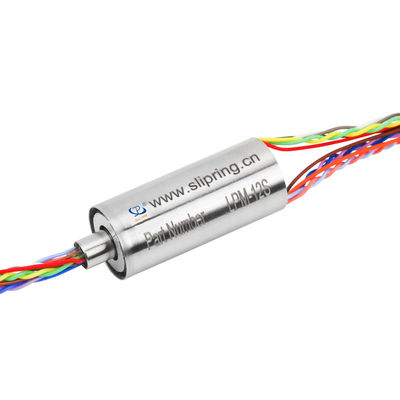

Capsule Slip Ring with 12 Circuits @1 amps Per Circuit, Rugged Anodized Aluminum Construction for Robotics
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Number Of Circuits||12||Voltage||240 VAC/DC|
|Current Rating||1 Amps Per Circuit||Contact Material||Gold To Gold|
|Other Application||Wind Power||One Application||Total Station|
|Two Application||Motors And Generators||Lead Length||Standard 250 Mm (9.843inch)|
compact slip ring,
mini slip ring
LPM-12G, whose contact part adopts rare metal and solid gold plating process, the slip ring has the feature of great wear resistance and antioxidant performance, which ensure the slip ring's long service life effectively.
LPM-12G compact capsule slip ring has a low torque design, with gold-on-gold contacts resulting in low electrical noise. These lead wires are flexible and color-coded, used to transfer analog and digital signals. It can be used at teams (CCTV), robotics, cable reels, medical equipment and packaging machines.
The slip rings are manufactured by utilizing premium grade metal-alloys using the edge-cutting technologies with the help of our deft team members. The offered slip rings are assembled in varied mechanical components to increase the rate of power transmission.
- 12 circuits models
- 1 amps, 240VAC/DC per circuit
- Speed up to 300 rpm continuous
- Gold-Gold contacts makes long lifetime
- Also available with 5 and 10 amps power rings combined with 2 amps rings.
- Precision ball bearings meet or exceed life requirements for most commercial applications
- Transfers analog and digital signals
- Compatible with data bus protocols
- Sealed units are also available
- Low electrical resistance and a stable structure.
- Low noise and interferences between the rings
- Rugged anodized aluminum construction
- Improved electromechanical capability
- Simplified system design
- High data rate and frequency signal transmission
- Semiconductor handling systems
- Industrial machinery
- Rotary index tables
- Process control equipment
- Medical equipment
- Illumination equipment
- CT machine
- Steering wheel racing simulation
- Robotics Palletizing machines
|Operating Speed||0-300 rpm|
|Number of Circuits||12|
|Current Rating||1 amps per circuit|
|Temperature Range||-20℃ to +60℃|
|Contact Material||Gold to Gold|
|Lead Size||30# silver plated copper|
|Lead Length||Standard 250 mm (9.843inch)|
|Dielectric Strength||≥500 VAC @50Hz, between each circuit|
|Insulation Resistance||1000 MΩ @ 500 VDC|
|Capsule Length =L|
|# of Circuits||L (mm)||Part No|
JINPAT has 20 years experience in SLIP RING manufacturing. Our factory covers an area of 7000 square meters with professional R&D team, advanced production equipment, and 300 skillful employees. JINPAT slip ring is one of the best-known brands in Europe and North America.
It has advanced technical equipment with high precision test instruments. Our manpower is so competent that we meet the needs of different customers with various specifications in durability and a reliable quality.
What is a slip ring?
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.
How do I choose a slip ring?
Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.
Do you offer custom slip rings?
Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.
