95 Circuits Pneumatic Hydraulic and Electrical Integrated Slip Rings with 10 Million Turns
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Circuits | 95 Circuits | IP Grade | IP 54 |
|---|---|---|---|
| Application | Thermal Power Station | Rotating Speed | 0~100 Rpm |
| Working Temperature | -40~+70℃ | ||
| Highlight | hollow shaft slip ring,signal slip ring |
||
Product Description

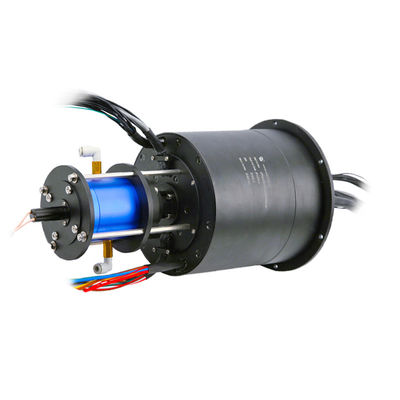

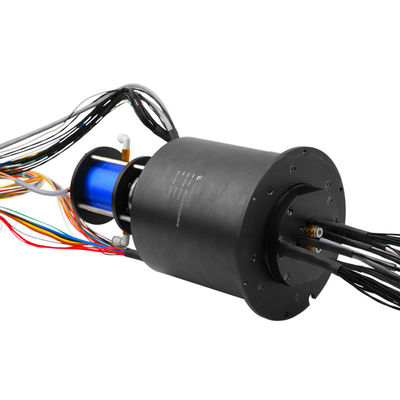

95 Circuits Pneumatic Hydraulic and Electrical Integrated Slip Rings with 10 Million Turns
Description
The LPT000-0720-0203-52S-2E3-HD02-02A integrated slip ring is an initiated stacked unit in domestic industry, transmitting various signals, such as strong current, Gigabit Ethernet, RS422, Rotary transformer signal, Excitation signal, SPL video signal, and HD-SDI, as well as gas and liquid at one time.Three parts of gas/liquid, strong electric signal, and weak electric signal are transmitted independently with high reliability. Besides stable transmission of 1080P@30Hz HD video signal, it can also adapt to harsh working environment with wide working temperature range(-40~+70℃). It has been perfectly used for military electro-optical radar in remote-controlled liquid cleaning, air drying, and video surveillance, etc.
Specification
| Electronic & Electric | Mechanical | |||
| Circuit | 7 *20A+2 *3A+52 *signal +2 pairs*Gigabit Ethernet+1 *Ground+2pairs*SPL video signal +2 *gas/liquid | Working Speed | 0～100 rpm | |
| Inner Diameter | / | |||
| Working Voltage |
Power:220V Signal:24V |
Contact | Precious Metal | |
| Dielectric Strength |
≥500VAC@50Hz(current) ≥300VAC@50Hz(signal) |
Housing | Aluminum Alloy | |
| Insulation | ≥300MΩ@500VDC | Wire Size | RG179 coaxial wire | |
| Environment | Remark | |||
| Working Temperature | -40°C～+70°C | Application | Military Photoelectric Radar, Automation | |
| Working Humidity | ≤70%RH | Life | ≥10 million turns | |
| IP | IP54 | Other | / | |
|
SPL Video Signal Rotary Joint |
|
|||
| Working Temperature | -40°C～+70°C | Working Pressure | 0-1.2MPa | |
| Working Speed | 0～100 rpm | Media | Compressed Air/ Washing Liquid | |
| Circuit | 2 pairs | Channel | 2 channels | |
| Resolution | 1080P, 30Hz | Connection Caliber | 1/8 | |
| Wire Size | RG179 coaxial wire | Pipe Size | Φ 6 | |
| Electrical Noise | ≤35mΩ | Connector Type | 1/8 | |
Outline Drawing
