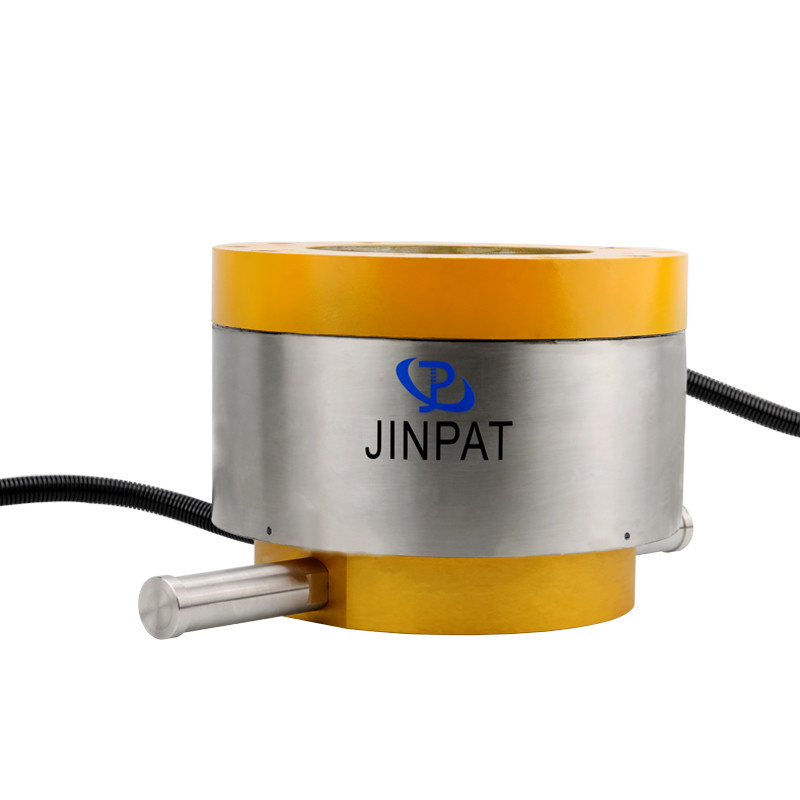

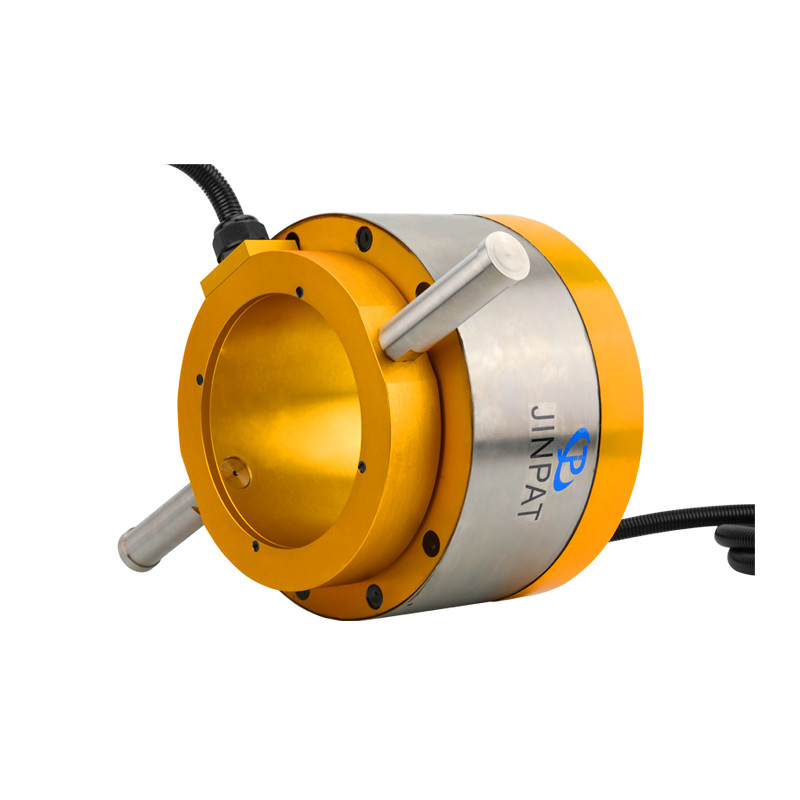

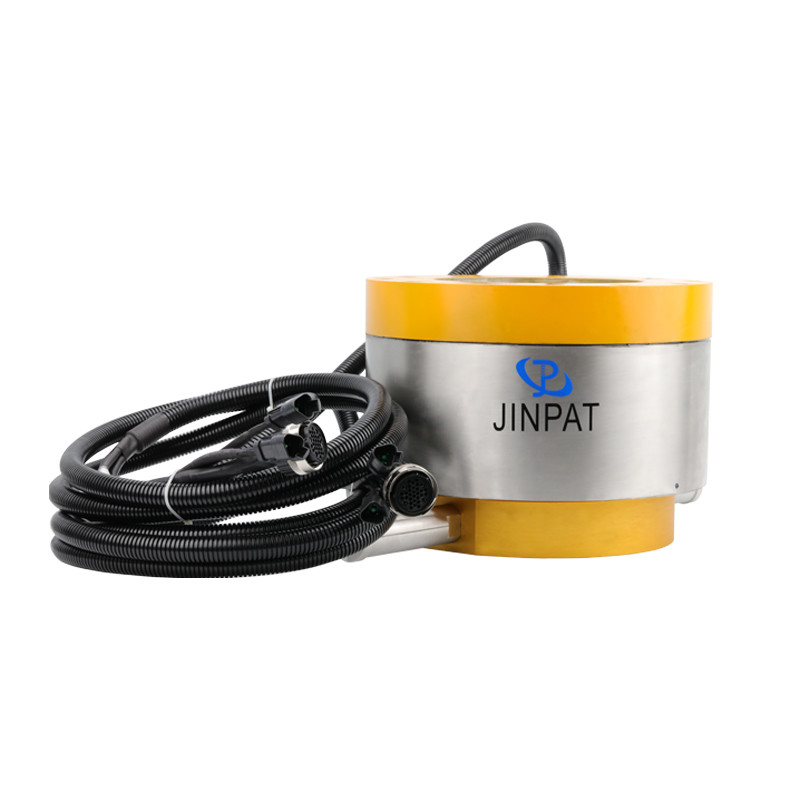

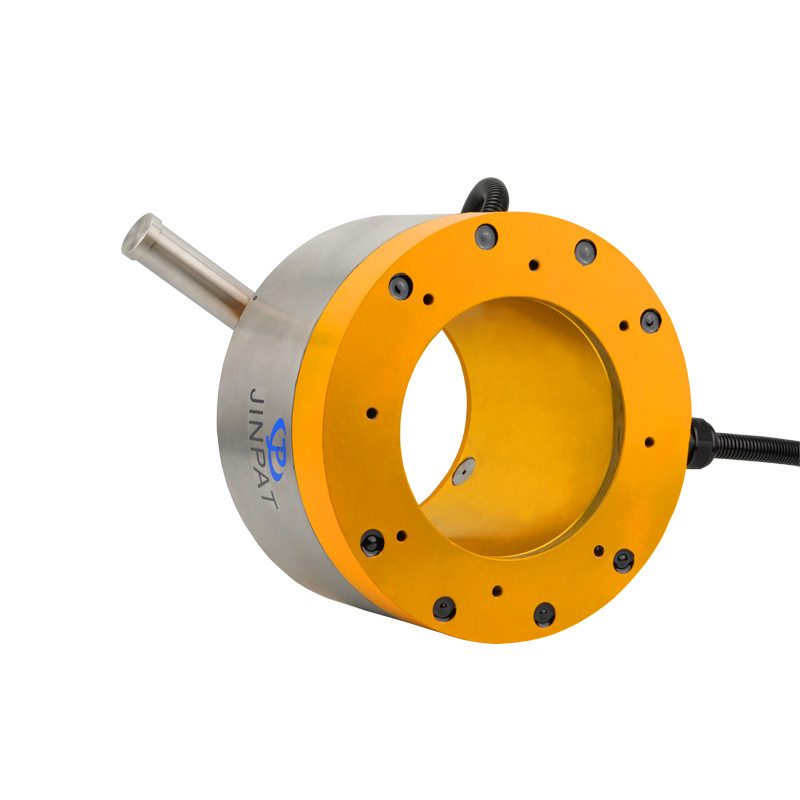

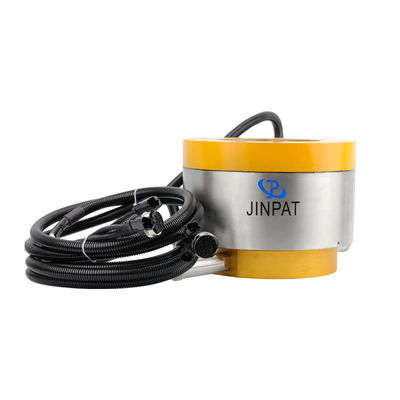

16 Circuits Through Bore Slip Rings with 200mm Inner Diameter
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Circuits | 16 | Operating Speed | 0-100rpm |
|---|---|---|---|
| Working Humidity | ≤60%RH | Voltage Ratin380VAC/DCg | 9~36V |
| Current Rating | 4 Circuits*30A,2 Circuits*10A, 3circuits*5A, 1circuits*signal, 2circuits*CANbus | Dielectric Strength | 1000VAC@50Hz |
| IP(Max) | IP67 | ||
| Highlight | hollow shaft slip ring,signal slip ring,16 Circuits Through Bore Slip Rings |
||
Product Description
16 Circuits Through Bore Slip Rings with 200mm Inner Diameter And Super long service life
LPT200-0430-0210-06S
Description
LPT200-0430-0210-06S is a family of robust through bore slip rings, with a central hole up to φ980mm, designed and manufactured by JINPAT with patented technology. Slip rings of the LPT series have the characteristics of precious metal contact and a long service life up to 230 million turns. Furthermore, they are water-proof, pressure-proof, and vibration resistant. Customizable lead wires and connectors support any plug-in including flying lead.
The through bore can be used to mount the slip ring on a bracket or used for routing hydraulic pneumatic passages as it can integrate pneumatic hydraulic rotary joints, high-frequency rotary joints and fiber optic rotary joints to meet more technical challenges.
Specifications
| Specification | |
| Circuits | 16 circuits |
| Operating Speed | 0-100rpm |
| Working Temperature | -30℃~ +70℃ |
| Working Humidity | ≤60%RH |
| Electrical: | |
| Voltage Rating | 9~36V |
| Current Rating | 4 circuits*30A,2 circuits*10A, 3circuits*5A, 1circuits*signal, 2circuits*CANbus |
| Dielectric Strength | ≥500V@50Hz |
| Insulation Resistance | 1000MΩ@ 500VDC |
| Electrical Noise | ≤70mΩ Min |
| Mechanical: | |
| Contact Material | Precious metal |
| Housing Material | Stainless Steel |
| Via Diameter | 200mm |
| Protection | IP67 |
Dimensions
