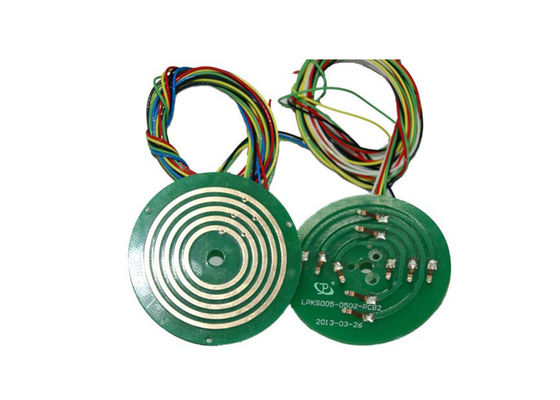

5 ckt 2A Pancake Slip Ring with PCB Board Design
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| ID | 5mm | Number Of Circuits | 5 |
|---|---|---|---|
| Current Rating | 2A Per Wire | Design | Separate PCB |
| Characteristics | PCB | ||
| Highlight | pancake slip ring assemblies,high current slip ring |
||
Product Description
5 ckt 2A Pancake Slip Ring with PCB Board Design with Separate Rotor and Stator
Description
Pancake slip ring is designed for the limited rotation system in height direction, which is a special kind of conductive slip ring actually. Its shape just like a platter and always design and structure is flat, so sometimes it could be named flat slip ring and platter slip ring.
Fine brass rings are used for signals and can be plated with silver, gold or rhodium where low contact resistance and low noise levels are required. The best results are obtained when these precious metal surfaces are used in conjunction with silver-graphite brushes. These units are suitable for slow speed only when fitted with brass rings.
Specifications
| Type | Pancake slip ring |
| Number of circuits | 5 |
| Voltage | 240V AC/DC |
| Current Rating | 2A per circuit |
| Contact Material | Precious metal |
| Lead Size/Type | 1.0mm2 wire |
Factory precise operation
