12 Circuits Electrical Pancake Slip Ring Transferring Power & Signal with φ60mm Bore for Rotary Tables

Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPK060-0803-04S
Minimum Order Quantity 1pcs
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 500 pieces/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Separate Slip Ring Number Of Circuits 12
Current Rating 3A Per Wire Feature 4 Circuits Signals Transmission
Internal Dimension 60mm Working Speed 0-300rpm
Housing Material Aluminum Alloy Contact Material Precious Metal
High Light

pan cake slip ring

,

pancake slip ring assemblies

Product Description

12 Circuits Electrical Pancake Slip Ring Transferring Power & Signal with φ60mm Bore for Rotary Tables



Description



A slip ring is a rotary coupling used to transfer electric current from a stationary unit to a rotating unit. This is accomplished by either:
Holding the center core stationary while the brushes and housing rotate around it.
Holding the brushes and housing stationary while the center core is allowed to rotate



Fine brass rings are used for signals and can be plated with silver, gold or rhodium where low contact resistance and low noise levels are required. The best results are obtained when these precious metal surfaces are used in conjunction with silver-graphite brushes. These units are suitable for slow speed only when fitted with brass rings.



This series of pancake slip ring is 12 circuits model and can transmit 4 wires signals. Also, it has the exquisite appearance and stable solutions.



Features

  • Easy installation and maintenance
  • Power and various signal combination.
  • Low work speed and low electrical noise
  • Large and huge instruction size

Alternatives

  • Outer diameter
  • Circuits
  • Loading of each circuit
  • Wire length
  • Different signal compatible
  • Working speed

Advantages

  • Affordable price
  • Quality guaranteed within 1 year
  • Response within 24 hours
  • Prompt delivery, normally 2~3 weeks
  • Reliable package & shipment ,by DHL, UPS or FedEx
  • Flexible & quick customization

Typical application

  • Heavy engineering machinery.
  • Mining equipment.
  • Construction machinery.
  • Port equipment.
  • Wind turbine generator.
  • Medical machine.
  • Radar & Missile launcher

12 Circuits Electrical Pancake Slip Ring Transferring Power & Signal with φ60mm Bore for Rotary Tables 0

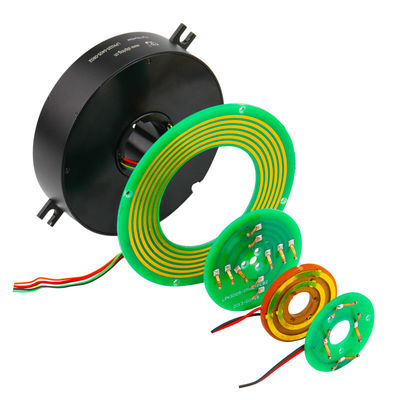

Product display



12 Circuits Electrical Pancake Slip Ring Transferring Power & Signal with φ60mm Bore for Rotary Tables 1



Application



12 Circuits Electrical Pancake Slip Ring Transferring Power & Signal with φ60mm Bore for Rotary Tables 2

12 Circuits Electrical Pancake Slip Ring Transferring Power & Signal with φ60mm Bore for Rotary Tables 3

Company introduction


JINPAT has 20 years experience in SLIP RING manufacturing. Our factory covers an area of 7000 square meters with professional R&D team, advanced production equipment, and 300 skillful employees. JINPAT slip ring is one of the best-known brands in Europe and North America.


It has advanced technical equipment with high precision test instruments. Our manpower is so competent that we meet the needs of different customers with various specifications in durability and a reliable quality.



Frequently Asked Questions


What do we do?
We focus on developing, designing and manufacturing high-quality slip rings, and offer various solutions for rotating systems.



How long have we been in the business?
JINPAT has been in slip rings business since 1996 with thousands of customers accepting our products or services. JINPAT can offer the right solutions to you.



Whom with us?
We have been cooperating and making breakthroughs in different industries. Our expertise can meet various requirements and standards as well as those in the military.



Why should I choose precious metal rather than mercury for contacts?
The primary concern is safety. Mercury is, of course, a toxic substance, so if your application involves food manufacturing or processing, pharmaceutical equipment, or any other use where contamination could be a serious threat, your choice should be precious metal contacts. As we all know, the leakage of mercury and the resultant contamination could be very serious.
