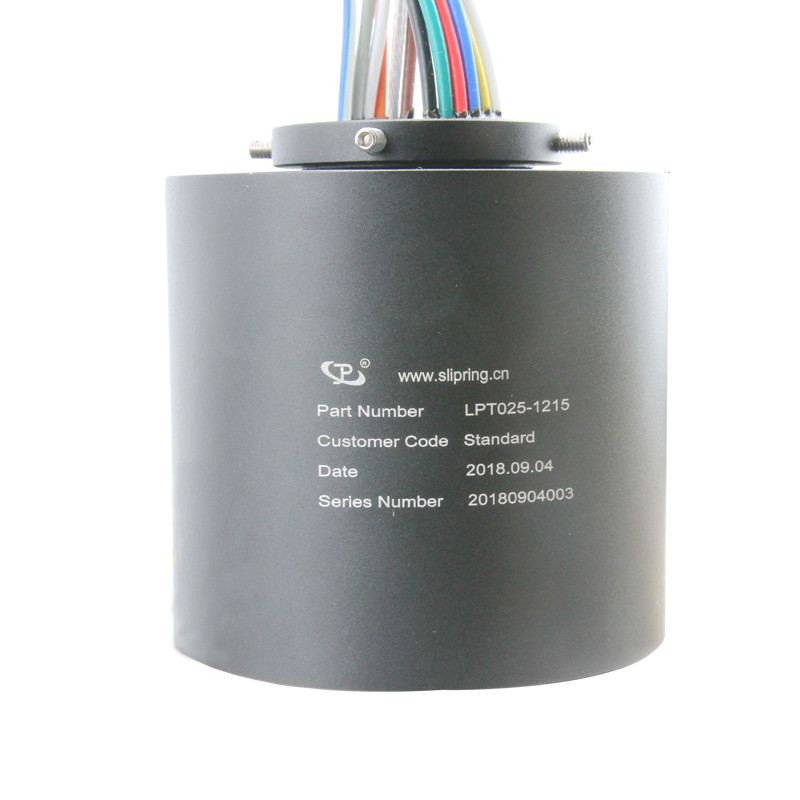

Medical Treatment Compact Slip Ring Precious Metal Contact 12 Circuits 10A Hole Diameter 24.5mm
Current Rating | 10A | Voltage | 240 VAC/DC |
---|---|---|---|
Circuit Number | 12 | ||
High Light | rotating slip ring,hollow shaft slip ring |
This unit can be used in any electromechanical system that requires unrestrained, intermittent, or continuous rotation while transferring power or data.
The LPT025 series signal module slip ring provides an economical, readily available solution when a compact through-bore configuration is required. Adoption of signal module design can reduce the length of the slip ring and save installation room.

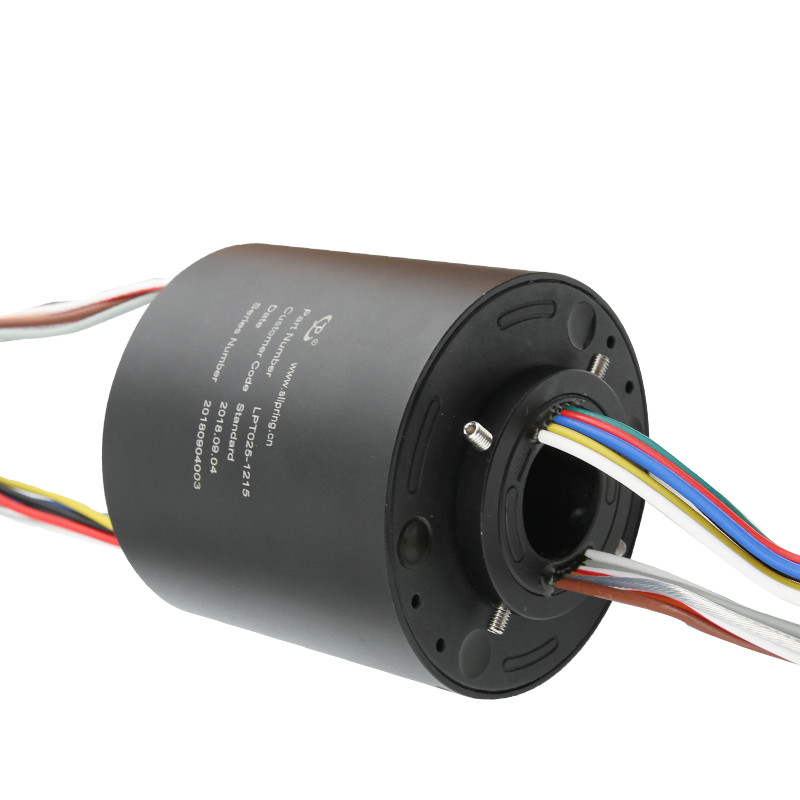

This unit provides a 25.4mm through-bore for routing hydraulic or pneumatic lines and a compact 86mm outside diameter for minimal space applications. This design features long life, fiber brush contact technology for ultimate performance in many challenging applications. Fiber brushes do not require lubrication and produce virtually no wear debris, for maintenance-free, lifetime operation.
Features
- 6, 12, 18 and 24 circuits models
- All of the circuits for various signals
- Precious metal contacts
- Precision ball bearings for long life
- Speed up to 500 rpm continuous
- Compact size
- Sealed units available
- Flying Leads
- Fully compatible with both analog and TTL control level signals
- Rugged black anodized aluminum construction
Advantage
- Unique signal handling performance with minimal electrical circuit noise
- Compact design to fit in the most demanding space constraints
- Low torque minimizes system torque budget
- Rapid delivery
Main Application
- Industrial machinery
- Exhibit Display machinery
- Medical equipment
- Rotary index tables
- Process control equipment
- Emergency lighting
- Robotics Palletizing machines,
- Heavy equipment turrets
- Shadowless Lamp
Specification | |
Circuits | 12 circuits |
Operating Speed | 0-300rpm |
Working Temperature | -20℃~ +60℃ |
Working Humidity | 60%RH |
Voltage Rating | 240VAC/DC |
Current Rating | For various signals |
Dielectric Strength | ≥1000V@50Hz between each circuit |
Insulation Resistance | 500MΩ@ 500VDC |
Electrical Noise | ≤70mΩ (50 rpm) |
Contact Material | Precious metal |
Lead Wire Length | Standard 300mm (11.811 inches) |
Protection | IP54 |
Outline
1. What do we do?
We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.
2. How long have we been in the business?
Jinpat established slip rings business since 1996. We have thousands of customers accepted our products or services.
3. What is a slip ring?
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.
4. How do I choose a slip ring?
Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.
5. Do you offer custom slip rings?
Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.
