Precious Metal Contact Through Bore Slip Ring LPTS000-0340-1305

Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPTS000-0340-1305
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 1000 units/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Contact Material Precious Metal Contact Revolving Speed 0~100rpm
IP Grade 0~100rpm Current 3circuits*40A,13circuits*5A
Application Crane
High Light

rotating slip ring


signal slip ring

Product Description

Precious Metal Contact LPTS000-0340-1305 Application

Through hole slip ring Description


Through bore slip rings (also known as "through hole slip ring") are slip ring with through bore, this series is designed for being installed with a flange on a sleeve bracket, also they totally meet with the continuous transmission of power and/or signal under 360-degree unrestrained rotations. This kind of spring uses a hollow shaft that applies the best-advanced fiber brush technology and precious metal multi-contacting, low noise, low contact pressure and maintenance free.


The LPTS000-0340-1305 is metal housing, surface spraying(Gravel ash), precious metal contact.


Circuits 16 circuits
Operating Speed 0-100rpm
Working Temperature -30℃~ +70℃
Working Humidity ≤60%RH
Voltage Rating 3 circuits@40A, 13 circuits@5A
Dielectric Strength ≥500V@50Hz
Insulation Resistance 1000MΩ@ 500VDC
Electrical Noise ≤70mΩ Min
Contact Material Precious metal
Housing Material Stainless Steel
Via Diameter 200mm
Protection IP65


Through hole slip ring Features

  • IP grade: IP65
  • Temperature:-40°C~+85°C
  • revolving speed:0~100rpm
  • current:3circuits*40A,13circuits*5A


Through hole slip ring Product display

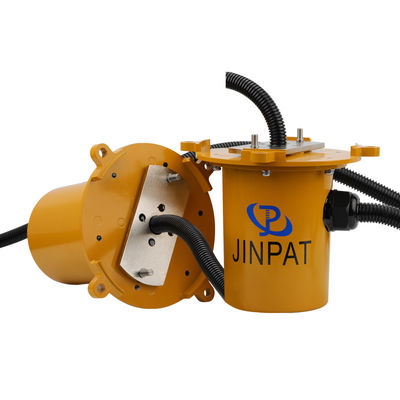

Precious Metal Contact Through Bore Slip Ring LPTS000-0340-1305 0

Application picture

Precious Metal Contact Through Bore Slip Ring LPTS000-0340-1305 1

Factory show

Precious Metal Contact Through Bore Slip Ring LPTS000-0340-1305 2
Precious Metal Contact Through Bore Slip Ring LPTS000-0340-1305 3

Company introduction

JINPAT has 20 years experience in SLIP RING manufacturing. Our factory covers an area of 7000 square meters with professional R&D team, advanced production equipment, and 300 skillful employees. JINPAT slip ring is one of the best-known brands in Europe and North America.

It has advanced technical equipment with high precision test instruments. Our manpower is so competent that we meet the needs of different customers with various specifications in durability and a reliable quality.
