Electrical and Optical Slip Ring with 240 VDC Voltage 50Hz Frequency and 20 Circuits
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Circuits | 20 | Operating Speed | 0-100 Rpm |
|---|---|---|---|
| Working Humidity | ≤60%RH | Voltage Ratin380VAC/DCg | 240 VDC |
| Current Rating | 9*10A, 35*2A, 1*Fiber | Dielectric Strength | ≥500VAC@50Hz |
| IP(Max) | IP54 | ||
| Highlight | hollow shaft slip ring,rotating slip ring |
||
Product Description
Electrical and Optical Slip Ring with 240 VDC Voltage 50Hz Frequency
Product Overview
The LPC-0910-3502-FO01 is a high-precision unit that integrates transmission of electricity and optical signals. Special construction and manufacturing techniques ensure independence and anti-interference between the two transmission systems. With reliable performance, this slip ring maintains a leading position through its innovative design in the field.
Quality is certified through stringent in-house testing, with customer-acknowledged stable and reliable signal transmission. The unit delivers consistent performance without surge-type interference or data package loss.
Technical Specifications
| Circuits | 9 circuits * 10A, 35 circuits * 2A, 1 * Fiber |
|---|---|
| Working Voltage | 240 VDC |
| Dielectric Strength | Between circuits ≥500V@50Hz |
| Insulation | 100MΩ@100VDC |
| Electrical Noise | ≤15mΩ |
| Working Speed | 0~100 rpm |
| Contact | Precious Metal |
| Housing | Aluminum Alloy |
| Wire Size | AWG17# /28# |
| Lead Wire Length | Rotor: 1000±5 mm, Stator: 1000±5 mm |
| Wavelength | 1310-1650mm |
| Insertion Loss | ＜2dB |
| Return Loss | ＞40dB |
| Optical Fiber Type | Single mode |
| Connector Type | ST |
| Temperature | -40°C~+85°C |
| Humidity | ≤60%RH |
| IP Rating | IP54 |
Outline Drawing

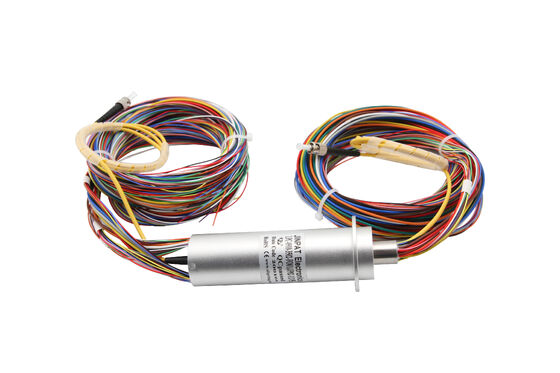

Product Display
