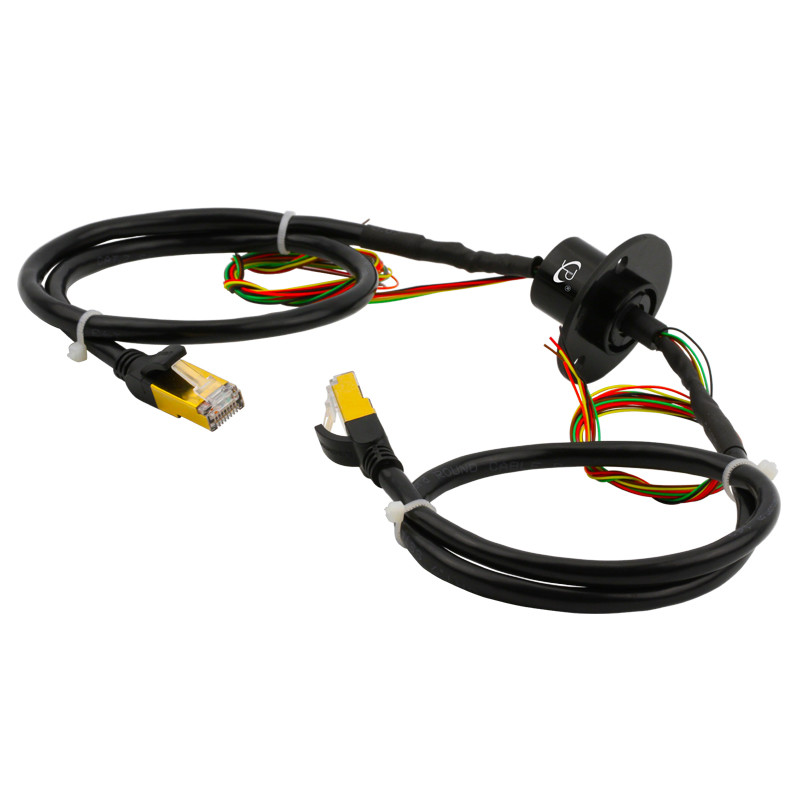

Compact Designed Slip Ring 1circuit 100M Ethernet, 6circuits 2A

  • Compact Designed Slip Ring 1circuit 100M Ethernet, 6circuits 2A
Place of Origin China
Brand Name JINPAT
Certification ISO/CE/RoHS/UL
Model Number LPC-12A-0602-E2
Minimum Order Quantity 10pcs
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 500 pieces /Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Circuits 6 Circuits Operating Speed 0-300rpm
Working Temperature 60%RH Voltage Rating 240VAC/DC
Electric Noise ≤20mΩ Housing Engineering Plastic
Contact Precious Metal IP IP54
Highlight

Compact Ethernet Signal Slip Ring

,

7 circuits Ethernet Signal Slip Ring

,

300rpm electrical slip ring
Product Description

Compact-designed Slip Ring Transmitting Electricity and Ethernet Signal with Engineering Plastic Housing


 Description
The LPC-12A-0602-E2 is a capsule slip ring that can transmit electricity and 100M Ethernet simultaneously. It adopts precious metal contact and engineering plastic housing. Actually, it is a modified component based on the standard unit that allows it to achieve Ethernet signal transmission while routing electricity.

Specification



Circuits 1circuit *100M Ethernet, 6circuits*2A
Working Voltage 240 VAC/DC
Dielectric Strength

Between circuits≥500VAC@50Hz (current)

300VAC@50Hz (signal)
Insulation ≥100MΩ@500VDC (current), 100MΩ@100VDC (signal)
Electrical Noise ≤20mΩ
Working Speed 0~300 rpm
Contact Precious Metal
Housing Engineering Plastic
Wire Size CAT5E+RJ45/φ0.65-AWG28#
Wire Length

Rotor:500±5mm

Stator:500±5mm
Temperature -20°C~+60°C
Humidity ≤60%RH
IP IP54




 Advantages

  • Compact design
  • Low torque
  • Rapid delivery
  • Long lifetime


Outline Drawing
Compact Designed Slip Ring 1circuit 100M Ethernet, 6circuits 2A 0
