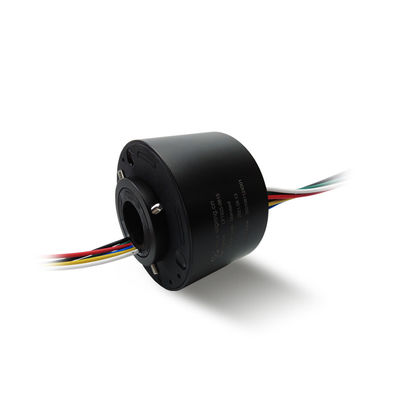

Compact Structure Rotary Slip Ring 6 Circuits Diameter 25.4mm Flexible Installation

Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPT025-0605
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 100K units/week
Product Details
Working Humidity 60%RH Or Higher Circuits 6 Circuits
Insulation Resistance 50MΩ@ 500VDC
High Light

rotating slip ring

,

miniature through bore slip ring

Product Description

We JINPAT cable reel slip ring LPT series suit for the application of crane. Like the slip rings LPT025/LPT038/LPT050 and so on.

LPT025-0605 hallow shalft slip ring features 6 circuits and 5 A per circuit. It uses our fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates.In addition, fiber brushes do not require lubrication and produce virtually no wear debris. The LPT080 features field serviceable brush blocks.





Features

  • Compact structure, flexible installation
  • Reliable and durable, suitable for longtime operation.
  • Aluminum alloy housing, protection grade IP 55; Adapt in dusty environment.
  • Alloy brush, precious contact material ( silver to silver); excellent electrical conductivity, low signal loss;
  • Shockproof design; Anti-low temperature, range: -30~+80 degree centigrade
  • Absolute encoder and potentiometer are available;
  • Power supply: up to 600 amperes for each circuit; Signal channels and wire connection method are optional.
  • Short delivery time, customized solutions are available.
  • Long life span, free from maintenance within 2 years.





Specification
Circuits 1-24 circuits
Operating Speed 0-400rpm
Working Temperature -20℃~ +60℃
Working Humidity 60%RH or higher
Electrical:
Voltage Rating 380VAC/DC or higher
Current Rating 2A/5A/10A/15A per circuit
Dielectric Strength ≥1000V@50Hz between each circuit
Insulation Resistance 50MΩ@ 500VDC
Electrical Noise 30mΩ Min
Mechanical:
Contact Material Precious metal
Lead Wire Length Standard 300mm (11.811inch)
Housing Material Aluminum alloy
Torque ≤9.25 g·m (for reference )
Protection IP44 or higher















































Compact Structure Rotary Slip Ring 6 Circuits Diameter 25.4mm Flexible Installation 0







Advantages

  • Affordable price
  • Quality guaranteed within 1 year
  • Response within 24 hours
  • Prompt delivery , normally 2~3 weeks
  • Reliable package & shipment ,by DHL, UPS or FedEx
  • Flexible & quick customization

Alternatives
  • Outside diameter
  • Circuits
  • Loading of each circuit
  • Wire length
  • Different signal compatible
  • Working speed

Product outline drawing

Compact Structure Rotary Slip Ring 6 Circuits Diameter 25.4mm Flexible Installation 1

Product Image



Compact Structure Rotary Slip Ring 6 Circuits Diameter 25.4mm Flexible Installation 2
