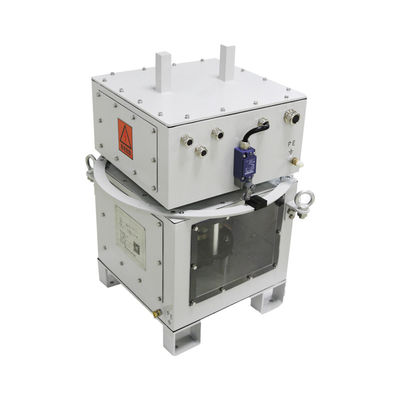

10rpm IP54 Copper Graphite Through Bore Electrical Slip Ring Solutions for High Power Transmission
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Protection Grade | IP40 | Contact Material | Gold To Gold |
|---|---|---|---|
| Housing Material | Engineering Plastics | Type | USB Slip Ring |
| Application | Rod Application,Matsushita Servo Motor | Product Name | Slip Ring Solutions |
| Rating Voltage | 440VAC/220VAC | Rotating Speed | 0~10rpm |
| Highlight | USB hollow shaft slip ring,10rpm through bore electrical slip ring,IP54 through bore electrical slip ring |
||
Product Description
10rpm IP54 Through Bore Electrical Slip Ring Carbon Brush Solutions
JINPAT high current slip rings for ship cranes have undergone continuous improvement over years of development. Leveraging accumulated design and manufacturing expertise, JINPAT has launched an exceptional dedicated slip ring solution for ship cranes. Engineered to meet industrial requirements, these slip rings operate with precision in their designated angular ring positions. With substantial lifting capacity, they enable 360° rotating transmission with minimal power loss and zero data packet loss. The IP54 protection rating ensures reliable performance in demanding outdoor working conditions.
Product Specifications
| Electrical & Electronics | Mechanical |
|---|---|
|
Circuits: 3 circuits × 250A; 1 circuit × PE; 2 circuits × 15A Rating Voltage: 440VAC/220VAC Dielectric Strength: 2500VAC@60Hz(P) 300@50Hz(S) Insulation Resistance: 500MΩ@1000VDC (P) 100MΩ@300VDC (S) |
Rotating Speed: 0~10rpm Contact Material: Copper graphite Housing Material: Q235 + Spray paint Wire Length: Stator: 1000mm Rotor: 1000mm |
| Environmental | Others |
|
Temperature: -10°C ~ +45°C Humidity: ≤95%RH Protection Grade: IP54 |
Life Span: Customizable Note: "P" stands for power, "S" stands for signal |
Key Features
- Current Rating: 4 circuits × 250A; 2 circuits × 15A; 1 circuit × PE
- Voltage Rating: 440VAC/220VAC
- Contact Material: Copper graphite
- Simultaneous transmission of power and signals including throttle signal, CANBus signal, angular ring signal, and encoder signal
- 360° rotating transmission with minimal transmission loss and zero data packet loss
- Excellent waterproof performance
- Rapid delivery capabilities
- Customizable solutions available
Product Advantages
- 350mm large through-bore diameter for high-power transmission
- High data transmission rate with low loss and interference-free operation
- High protection level with strong corrosion resistance, shock resistance, and vibration resistance
- Specifically designed for harsh maritime environments
