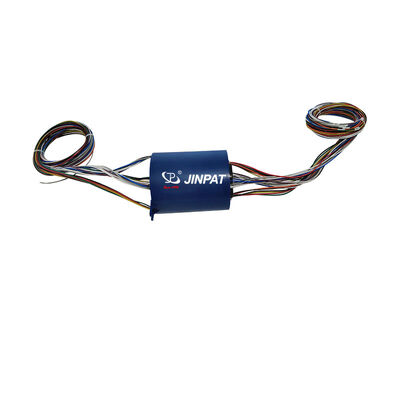

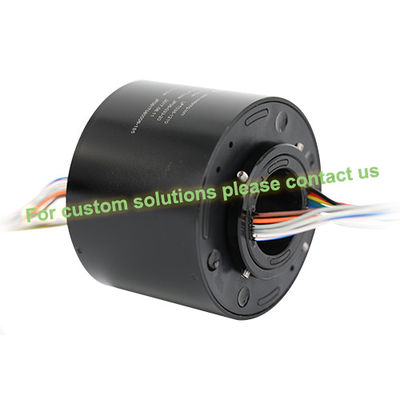

24 Circuits 500VAC/DC Through Hole Slip Ring with IP54 Protection for Analog and Digital Signal Transmission
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Total | 24CKT | Detail | 24X10A |
|---|---|---|---|
| Rating Voltage | 500VAC/DC | Working Temperature | -40°C~+80°C |
| Working Humidity | ≤60%RH | IP | IP54 |
| Highlight | 15A Through Hole Slip Ring,10A Through Hole Slip Ring,15A through bore slip rings |
||
Product Description
5A 10A 15A Through Hole Slip Ring for Analog and Digital Signal Transmission
A slip ring is an essential component in electromechanical systems requiring continuous rotation while transferring power or data from stationary to rotating structures. Also known as rotary electrical interfaces, collectors, swivels, or commutators, slip rings enhance system performance by simplifying operations and eliminating damage-prone dangling wires from movable joints.
SPT050-104-2410 Outline Drawing
Technical Specifications
| Electronic & Electrical | Mechanical |
|---|---|
| Circuits: 24CKT Total | Working Speed: 0-400rpm |
| Detail: 24×10A | Inner Diameter: Φ50mm |
| Rating Voltage: 500VAC/DC | Contact Material: Fiber Brush |
| Dielectric Strength: 1500VAC@60Hz | Housing Material: Fibre-reinforced plastics |
| Insulation Resistance: ≥1000MΩ@500VDC | Lead Wire Length: Stator: 1m, Rotor: 1m |
| Environment | Remarks |
| Working Temperature: -40°C to +80°C | Application: Various industrial applications |
| Working Humidity: ≤60%RH | Other: Customizable options available |
| IP Rating: IP54 (Horizontal installation) |
The LPT series through-bore slip rings feature a center hole that can accommodate drive shafts, gas-liquid passages, and can integrate various connectors including high frequency, fiber, encoder, waveguide, gas and liquid joints. Advanced fiber brush technology ensures reliable contact with minimal friction. Available with center holes from 0 to 1000mm, current ratings from mA to 5000 amps, and voltages up to 10000 volts to meet diverse transmission requirements.
Key Features
- Transmit analog and digital signals
- Mixed transmission of power and signals including:
- Ethernet: 10Mbps/100Mbps/1000Mbps
- Industrial Ethernet: EtherNet, EtherCAT, ProfiNet, Powerlink, SercosIII/IP
- HD Video: SDI, LVDS
- Serial Communication: RS232, RS485, RS422
- Universal Serial Bus: USB2.0
- Industrial Fieldbus: CANBus, ProfiBus, InterBus, CC-Link, DeviceNet
- Sensor Signals: Thermal resistance, thermocouple, strain gauge
- Long service life with maintenance-free operation
- Easy installation and integration
