High-Speed Ethernet Slip Ring with 5A/Signal~15A Power Transfer and IP50 Protection for 100Mbps/1Gbps/10Gbps Data Transmission

  • High-Speed Ethernet Slip Ring with 5A/Signal~15A Power Transfer and IP50 Protection for 100Mbps/1Gbps/10Gbps Data Transmission
  • High-Speed Ethernet Slip Ring with 5A/Signal~15A Power Transfer and IP50 Protection for 100Mbps/1Gbps/10Gbps Data Transmission
  • High-Speed Ethernet Slip Ring with 5A/Signal~15A Power Transfer and IP50 Protection for 100Mbps/1Gbps/10Gbps Data Transmission
Place of Origin China
Brand Name JINPAT
Certification ISO/CE/RoHS/UL
Model Number LPT025-0605-1215-02E3
Minimum Order Quantity 10pcs
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms cc,T/T,PayPal
Supply Ability 500 pieces /Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

5A/Signal~15A Ethernet Slip Ring

,

IP50 Signal Slip Ring

,

100Mbps/1Gbps/10Gbps Rotary Joint
Product Description

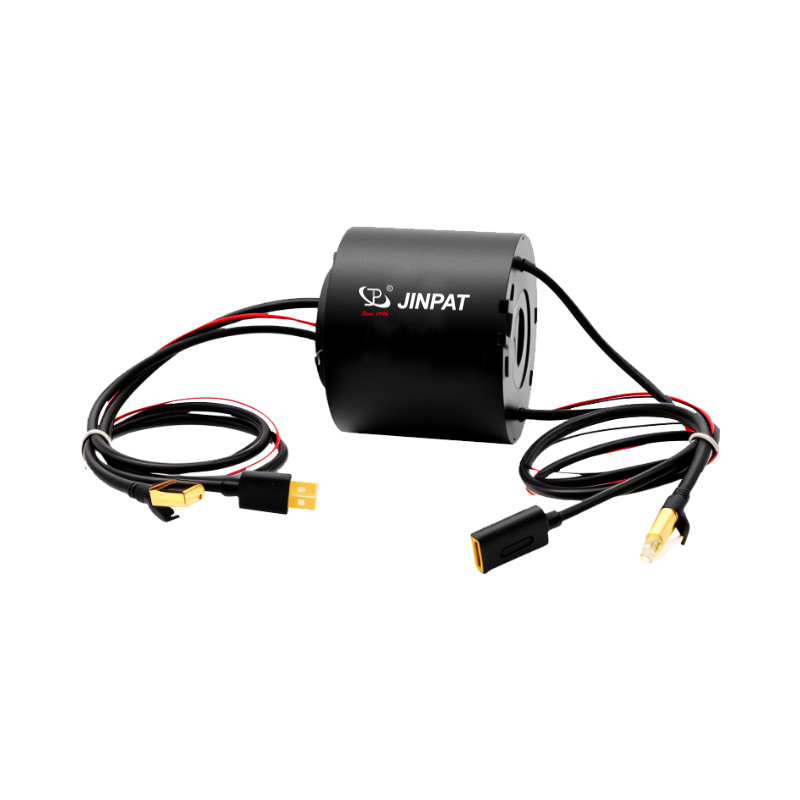

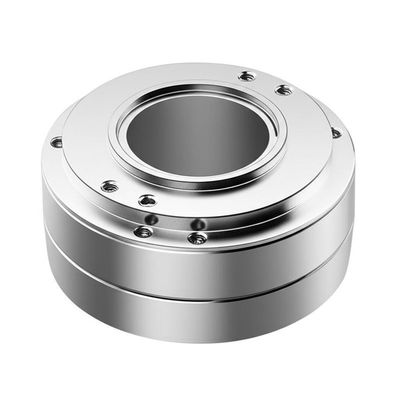

JINPAT LPT025 Series High-Speed Ethernet Slip Rings (5A/Signal~15A, IP50)
Ethernet slip rings are electromechanical components designed to transmit Ethernet signals, power, and multiple data types seamlessly during 360° continuous rotation of equipment. Featuring a robust design with rotating (rotor) and stationary (stator) parts, they ensure uninterrupted signal transfer through precision contact technology.
Key Features
  • High-Speed Ethernet: Supports 100M, 1000M, and 10000M Ethernet connections
  • Power & Data Combination: Includes power transfer (5A, 10A, 15A) with Ethernet data
  • Durable & Reliable: Built to withstand harsh environments and ensure stable performance
  • Compact Design: Space-saving and easy to integrate into various systems
  • Customizable Options: Tailored to meet specific needs including Ethernet quantity, signal types, current, voltage and connector types
Applications
  • Robotics
  • Rotating Machinery
  • CCTV & Surveillance
  • Aerospace & Aviation
  • Medical Equipment
  • Automated Testing Systems
Product Specifications
Model ID (mm) OD (mm) Ethernet Support Circuits 5A 10A 15A IP Rating
LPT025-0605-01E3 ∅25.4 ∅86 100M ✔ / 1G ✔ 1 6 IP50-IP68
LPT025-0610-01E3 ∅25.4 ∅86 100M ✔ / 1G ✔ 1 6 IP50-IP68
LPT025-0615-01E3 ∅25.4 ∅86 100M ✔ / 1G ✔ 1 6 IP50-IP68
LPT025-1205-01E3 ∅25.4 ∅86 100M ✔ / 1G ✔ 1 12 IP50-IP68
LPT025-1210-01E3 ∅25.4 ∅86 100M ✔ / 1G ✔ 1 12 IP50-IP68
LPT025-1215-01E3 ∅25.4 ∅86 100M ✔ / 1G ✔ 1 12 IP50-IP68
LPT038-0605-01E3 ∅38.1 ∅99 100M ✔ / 1G ✔ 1 6 IP50-IP68
LPT038-0610-01E3 ∅38.1 ∅99 100M ✔ / 1G ✔ 1 6 IP50-IP68
LPT038-0615-01E3 ∅38.1 ∅99 100M ✔ / 1G ✔ 1 6 IP50-IP68
LPT050-0605-01E3 ∅50 ∅119 100M ✔ / 1G ✔ 1 6 IP50-IP68
Reliable, high-speed connectivity and power delivery for your rotating systems.
