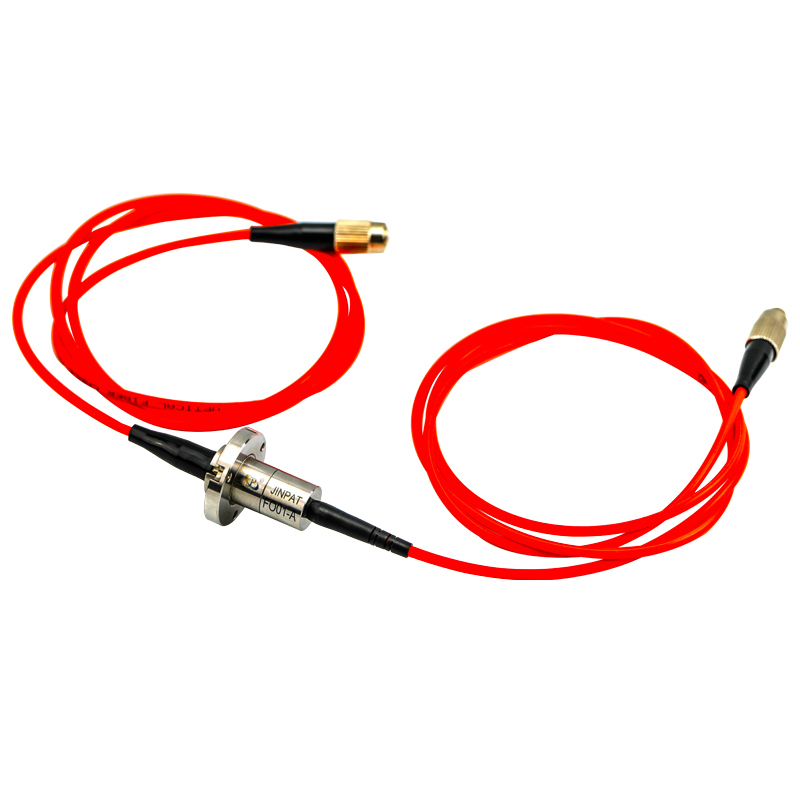

IP68 Fiber Optic Rotary Joint 2000 rpm for Harsh Environments
Product Details
| Channel Number | 1 | Wavelength Range | 650-1650nm |
|---|---|---|---|
| Insertion Loss | <2dB | Working Speed | 2000 Rpm |
| Fiber Types | SM Or MM | Connector Types | FC/SC/ST/LC(PC Or APC) |
| Life Cycle | >200 Million Revolutions | Insertion Loss Ripple | <0.5dB |
| Weight | 40g | Return Loss | ≥40dB |
| Max Optical Power | 23dBm | Maximum Speed | 2000rpm Or More |
| Working Temperature | -45~+75℃ | Storage Temperature | -55~+85℃ |
| IP Rating | IP65 Or IP68 | ||
| Highlight | IP68 fiber optic rotary joint,high-speed 2000 rpm rotary joint,harsh environment fiber optic joint |
||
Product Description
IP68 Fiber Optic Slip Ring Rotary Joint with 2000 rpm Working Speed for Harsh Environments
Key Attributes
| Type | Accessories |
| Channel Number | 1 |
| Wavelength Range | 650-1650nm |
| Insertion Loss | <2dB |
| Working Speed | 2000 rpm |
| Style | Fiber optic rotary joint |
Product Overview
The LPFO-01E slip ring uses optic fiber for high-capacity data transmission between stationary and rotating parts. Featuring extremely low insertion loss and high return loss, this contact-free solution enables high-bandwidth signal transmission without electromagnetic interference.
Key Features
- Built-in quick plug interface
- Low insertion loss with high return loss
- Long-distance transmission without leakage or EMI
- High bandwidth capacity
- Contact-free operation eliminates friction
- Compact and lightweight design
- Multi-channel options available
- Multiple package configurations
- IP68-rated water and dust protection
- Vibration and shock resistant
Product Advantages
- Extended service life
- Cost-effective solution
- Flexible fiber wire terminal connections
- Fast delivery options
- Custom engineering solutions
Technical Specifications
| Fiber types | SM or MM |
| Connector types | FC/SC/ST/LC(PC or APC) |
| Channel number | 1 |
| Estimated life cycle | >200 million revolutions |
| Wavelength range | SM:1270-1650nm MM:650-1300nm |
| Vibration | MIL-STD-167-1A |
| Insertion loss | <2dB |
| Mechanical shock | MIL-STD-810G |
| IP rating | IP65 or IP68 |
| Weight (approx) | 40g (No tail cable and connection included) |
Primary Applications
- Robotics systems
- Turrets and rotating platforms
- Radar systems
- Seafloor operation equipment
- Material conveying systems
Product Images
Manufacturer Advantages
- 12,000+ square meter production facility with 500+ employees
- Recognized as "National High and New Technology" enterprise with 69 patents
- Global partnerships with leading enterprises and distributors
- 10,000+ successful designs for civil, military, commercial and industrial applications
- Established in 1996 with 20+ years of R&D and production experience
- Custom engineering solutions available
- Fast delivery capabilities
Frequently Asked Questions
What is a slip ring?
An electromechanical device that enables power and signal transmission between stationary and rotating structures, eliminating damage-prone dangling wires in rotating systems.
What slip ring types are available?
- Electrical slip rings (capsule, through-bore, miniature)
- Signal slip rings (USB, fiber optic, high frequency)
- Pneumatic/Hydraulic Rotary Unions
- Custom solutions
- Large volume series
How to select the right slip ring?
Consider your application's operating parameters including circuits, voltage/amperage, speed, and mounting requirements. Contact our engineers for custom solutions.
