3 Circuit 10A Capsule Slip Ring for Electrical Test Equipment

  • 3 Circuit 10A Capsule Slip Ring for Electrical Test Equipment
Place of Origin Guangdong, China
Brand Name JINPAT
Model Number LPC-03P
Minimum Order Quantity 1
Price $22

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Circuits 3 Current Rating 10A Or Higher
Voltage 240VAC Working Temperature -20~+60℃
Contact Material Gold To Gold Wire Specification AWG17#, Silver Plated Teflon, UL
Lead Wire Length Rotor:250mm; Stator:250mm Insulation Resistance 100MΩ@500VDC
Dielectric Strength 500V@50Hz Between Circuits Electrical Noise ≤35mΩ (operating At 50rpm)
Protection Grade IP54 Working Speed 0~300 RPM
Outer Diameter 22mm~54mm Contact Resistance Very Low
Signal Compatibility Ethernet, USB, RS, LVDS, CAN Bus, Fire Wire, SDI, HDMI
Highlight

10A capsule slip ring

,

3 circuit slip ring

,

electrical test slip ring
Product Description
Capsule Slip Ring 3 Circuit 10A
High-performance slip ring with very low contact resistance, ideal for electrical test equipment and rotary table applications.
Product Attributes
Attribute Value
Type Electronic Accessories
Features Very low contact resistance
Typical Application Rotary table
Optional Rotating speed
Product Description
Standard middle-sized Capsule Slip Ring integrates up to 125 circuits with optional outer diameters from 22mm to 54mm. Features military-standard surface processing for high precision and compact design with gold-to-gold contacts for low resistance and extended service life. Compatible with various signals including Ethernet, USB, RS, LVDS, CAN bus, Fire Wire, SDI, and HDMI.
LPC-03P Slip Ring Technical Specifications
Parameter Value
Protection Grade IP54
Working Speed 0-300 RPM
Circuits 3
Current Rating 10A or higher
Voltage 240VAC
Working Temperature -20°C to +60°C
Contact Material Gold to gold
Wire Specification AWG17#, silver plated Teflon, UL
Lead Wire Length Rotor: 250mm; Stator: 250mm
Insulation 100MΩ@500VDC
Dielectric Strength 500V@50Hz between circuits
Electrical Noise ≤35mΩ (operating at 50rpm)
Applications
  • Electric devices
  • Motor equipment
  • Industrial machinery
  • LED industry
  • Medical equipment
  • Process control equipment
  • Monitoring systems
  • Electrical testing equipment
  • Military rotary tables
  • Robotics
  • Rotating platforms
  • Display and demonstration equipment
  • Instruments and meters
Key Features
  • Extended service life
  • Exceptionally low contact resistance
  • Compatible with data bus protocols
  • Smooth operation with high stability
  • Low torque requirements
  • Supports multiple data signal types
  • Compact structural design
Product Images

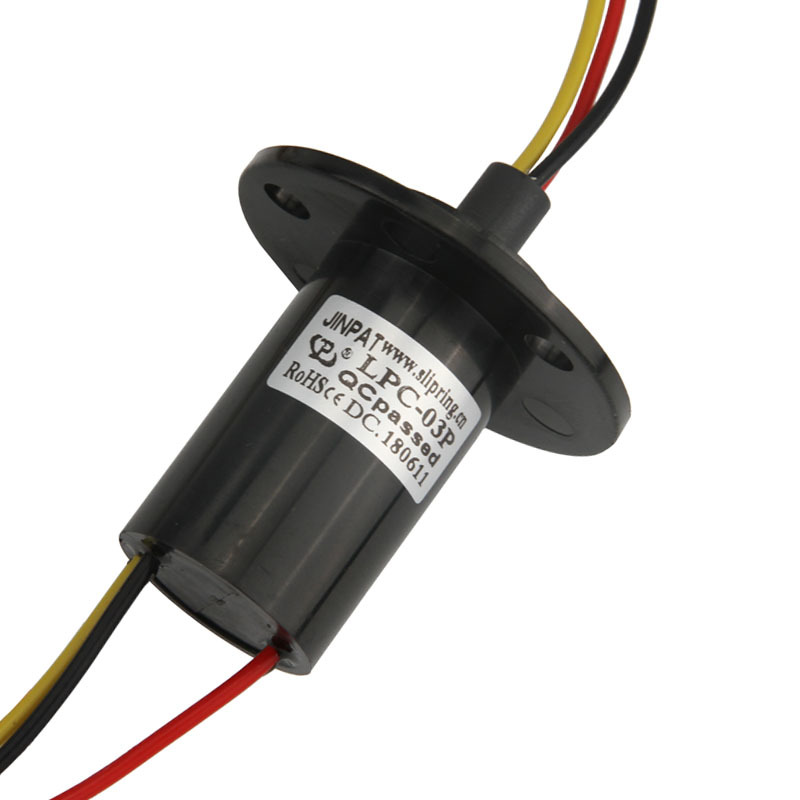

3 Circuit 10A Capsule Slip Ring for Electrical Test Equipment 0 3 Circuit 10A Capsule Slip Ring for Electrical Test Equipment 1
Company Advantages
  • 12,000 square meter production facility with 500+ employees
  • Recognized as "National High and New Technology" enterprise
  • Holder of 69 patents
  • Long-term partnerships with global industry leaders
  • Over 10,000 successful designs across civil, military, commercial and industrial applications
  • Established in 1996 with 20+ years of R&D experience
  • Custom slip ring solutions available
  • Fast delivery times
Company Information
3 Circuit 10A Capsule Slip Ring for Electrical Test Equipment 2 3 Circuit 10A Capsule Slip Ring for Electrical Test Equipment 3 3 Circuit 10A Capsule Slip Ring for Electrical Test Equipment 4 3 Circuit 10A Capsule Slip Ring for Electrical Test Equipment 5
Frequently Asked Questions
What do we do?
We specialize in developing, designing, and manufacturing high-quality slip rings, offering comprehensive solutions for rotating systems.
What is a slip ring?
A slip ring is an electromechanical device that enables power and signal transmission between stationary and rotating structures. It enhances mechanical performance, simplifies system operation, and eliminates damage-prone dangling wires in movable joints.
What kinds of slip rings do we offer?
  • Electrical Slip Rings (capsule, through-bore, miniature)
  • Signal Slip Rings (USB 2.0/3.0, fiber optic rotary joints, high frequency)
  • Pneumatic/Hydraulic Rotary Unions
  • Custom Slip Rings
  • Large volume series
How do I choose a slip ring?
Selection requires details about your application's operating parameters including total circuits, voltage and current requirements, operating speed, and mounting type. For custom solutions or assistance, please contact our engineering team.
Do you offer custom slip rings?
Yes, our engineering team develops tailored solutions for specific requirements. Contact us to discuss your application needs.
