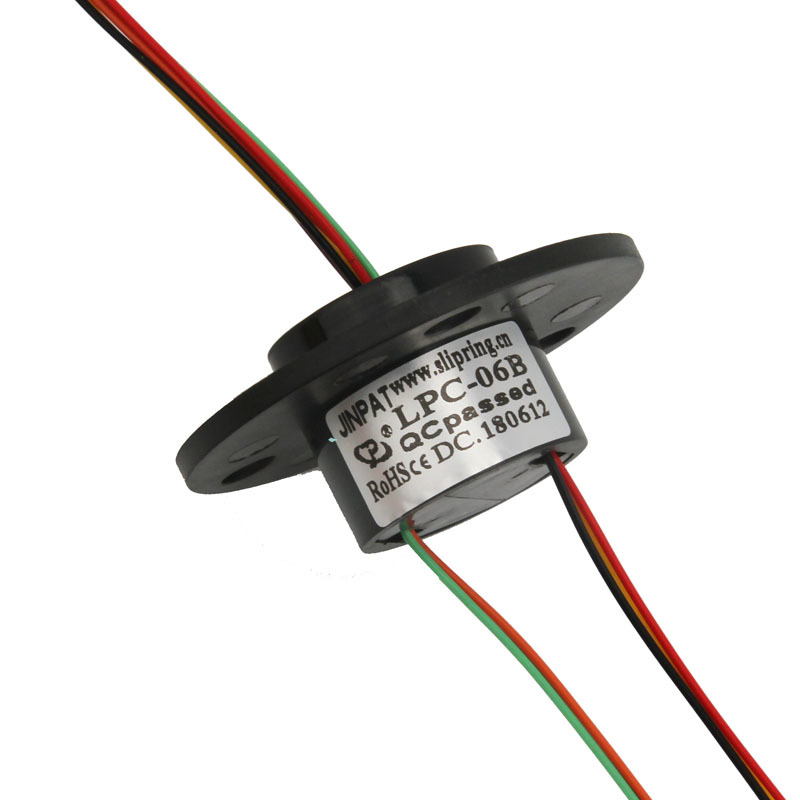

6 Circuit Gold Contact Slip Ring 2A 300 RPM LPC-06B
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Protection Grade | IP54 | Working Speed | 300 RPM |
|---|---|---|---|
| Circuits | 6 | Current Rating | 2A Or Higher |
| Voltage | 240VAC | Working Temperature | -40~+80℃ |
| Contact Material | Gold To Gold | Wire Specification | AWG28#, Silver Plated Teflon, UL |
| Lead Wire Length | Rotor:250mm; Stator:250mm | Insulation | 1000MΩ@500VDC |
| Dielectric Strength | / | Electrical Noise | / |
| Contact Resistance | Very Low | Operation Stability | High |
| Torque | Low | ||
| Highlight | 6 circuit gold contact slip ring,2A 300 RPM slip ring,LPC-06B rotary slip ring |
||
Product Description
Mini Type Wind Turbine Slip Rings 6 Circuits 2A 300 RPM
Miniature Capsule Slip Ring, 6 Channel Flat Slip Ring
Product Specifications
| Attribute | Value |
|---|---|
| Type | Electronic Accessories |
| Typical Application | Rotary Table |
| Optional | Rotating Speed |
| Contact Material | Gold-Gold |
| Features | Very Low Contact Resistance |
Product Description
Bargain Price Only in Alibaba
The LPC-06B capsule slip ring/6 channel flat slip ring is designed for electromechanical systems requiring continuous rotation while transferring power or data between stationary and rotating components.
This standard off-the-shelf unit features gold contacts at the rotary interface with color-coded lead wires on both stator and rotor for simplified electrical connections.
LPC-06B Slip Ring Parameters
| Parameter | Value |
|---|---|
| Protection Grade | IP54 |
| Working Speed | 300 RPM |
| Circuits | 6 |
| Current Rating | 2A or higher |
| Voltage | 240VAC |
| Working Temperature | -40°C to +80°C |
| Electric Contact Material | Gold to Gold |
| Wire Specification | AWG28#, silver plated Teflon, UL |
| Lead Wire Length | Rotor: 250mm; Stator: 250mm |
| Insulation | 1000MΩ@500VDC |
LPC-06B Slip Ring Applications
- Electric devices
- Motor equipment
- Industrial machinery
- LED industry
- Medical equipment
- Process control equipment
- Monitoring systems
- Electrical testing equipment
- Military rotary tables
- Robotics
- Rotating platforms
- Display and demonstration equipment
- Instruments and meters
LPC-06B Slip Ring Features
- High durability and long life
- Very low contact resistance
- Compatible with data bus protocols
- Smooth operation and high stability
- Low torque requirements
- Supports various data signal types
- Compact structural design
Product Visuals
Manufacturer Advantages
JINPAT Electronics provides free custom slip ring solutions, creating propulsion for your technology:
- 12,000+ square meter facility with 500+ employees
- National High and New Technology award recipient with 69 patents
- Global partnerships with renowned enterprises
- 10,000+ successful designs across civil, military, commercial and industrial applications
- Established in 1996 with 20+ years of production and R&D experience
- Custom solutions for diverse equipment requirements
- Fast delivery capabilities
