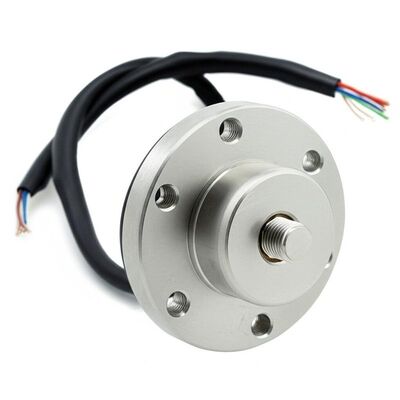

Rotary Slip Ring with 1000VAC/24V Dual-Voltage and 4×300A Power Circuits for Heavy-Duty Rotary Drilling Equipment
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage | 1000VAC/24V | Circuits | 4*300A(P) 7*10A(S) 1*Neutral Wire 1*Ground Wire |
|---|---|---|---|
| Housing Material | Q235 (sprayed Yellow) | Lead Wire Length | Stator:3m(H) 1.5m(L) Rotor:3.8m 1.5m(Ground Wire:) |
| IP | IP65(Rotor Facing Upwards) | Application | Rotary Drilling |
| Working Temperature | -20°C~+80°C | Working Humidity | ≤95%RH |
| Contact Material | Copper Graphite/Precious Metals | ||
| Highlight | 1000VAC/24V Rotary Slip Ring,4×300A Power Circuits Electrical Slip Ring,Copper Graphite/Precious Metals Contacts Rotary Electrical Joint |
||
Product Description
Rotary Slip Ring Offering Durable Electrical Transmission for Rotating Machinery and Industrial Automation Applications

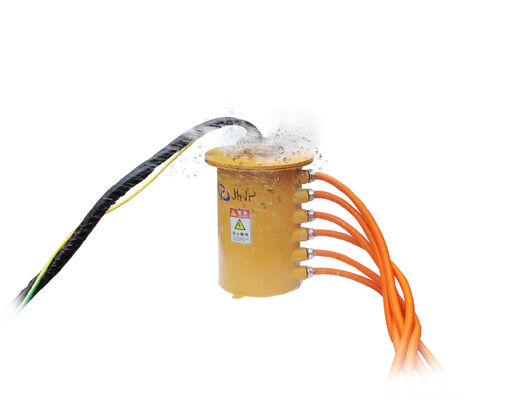

Rotary drilling rig slip ring (1000VAC)
Key Features
- Integrated High-Current Power and Signal Transmission - Supports 4 × 300A power circuits together with multiple signal channels, neutral wire, and ground wire, enabling reliable integrated transmission for rotary drilling systems.
- Dual-Voltage System Compatibility - Designed for 1000VAC power and 24V signal transmission, meeting the requirements of complex drilling equipment with mixed voltage levels.
- Mixed Contact Technology for High Reliability - Combines copper-graphite contacts for power and precious metal contacts for signals, ensuring high current capacity and stable signal performance.
- Robust Structure for Heavy-Duty Operation - Features a Q235 steel housing with sprayed coating, providing strong mechanical strength and durability in demanding drilling environments.
- Optimized for Rotary Drilling Applications - Specifically designed for rotary drilling equipment, offering stable low-speed transmission and reliable performance during continuous heavy-duty operation.
Technical Specifications
| Electronic & Electric | Mechanical |
|---|---|
| Circuits | Working Speed |
| Total: 16 Detail: 4×300A(P) 7×10A(S) 1×Neutral wire 1×Ground wire |
0~15rpm |
| Rating Voltage | Inner Diameter |
| 1000VAC/24V | / |
| Dielectric Strength | Contact Material |
| 2500VAC@50Hz(P) 300VAC@50Hz(S) | Copper Graphite/Precious Metals |
| Insulation Resistance | Housing Material |
| ≥1000MΩ@1000VDC(P) ≥100MΩ@250VDC(S) | Q235 (sprayed yellow) |
| Lead Wire Length | |
| Stator: 3m(H) 1.5m(L) Rotor: 3.8m 1.5m Ground wire: as specified |
| Environment | Remarks |
|---|---|
| Working Temperature | Application |
| -20°C~+80°C | Rotary Drilling |
| Working Humidity | Other |
| ≤95%RH | / |
| IP Rating | |
| IP65 (Rotor facing upwards) |
Note: "P" stands for power, "S" stands for signal. "H" stands for High voltage, "L" stands for low voltage.
