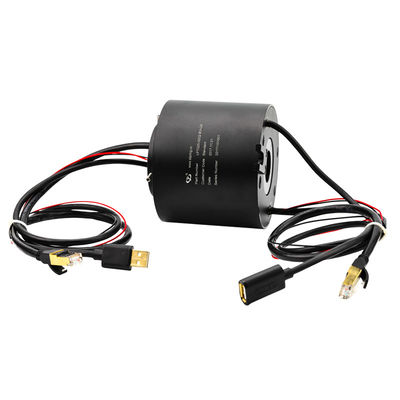

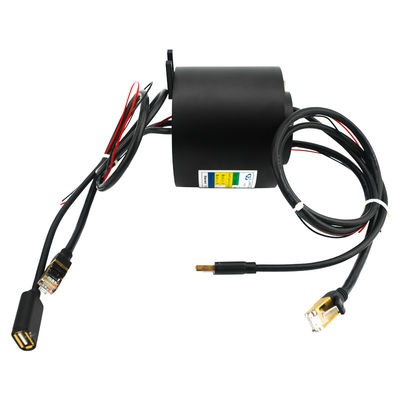

Hybrid Slip Ring Transferring USB2.0 and Gigabit Ethernet Signal Electricity with 25.4mm Hole Dia
LPT-025 can be used in any electromechanical system that requires unrestrained, intermittent, or continuous rotation while transferring power or data.
The LPT-025 provides an economical, readily available solution when a compact through-bore configuration is required.
LPT-025 provides a 25.4mm through-bore for routing hydraulic or pneumatic lines and a compact 86mm outside diameter for minimal space applications.
The 15 amps per circuit are available in 6, 12, 18 and 24 ring configurations in 4 housing lengths.
Similar in design to our very popular LPT025 series, this design features long life, fiber brush contact technology for ultimate performance in many challenging applications.
Fiber brushes do not require lubrication and produce virtually no wear debris, for maintenance-free, lifetime operation.
There are three-phase 30 a whole structure, fiber brush slip ring.
Process control equipment
Emergency lighting, robotics Palletizing machines,
Heavy equipment turrets or cable reels
Rotary index tables
Semiconductor handling systems
Exhibit Display machinery
|Circuits||2ckt*2A, 8ckt*Gigabit Ethernet, 1pair* USB2.0|
|Working Temperature||-20℃~ +60℃|
|Working Humidity||60%RH or higher|
|Voltage Rating||24 VAC|
|Dielectric Strength||between circuits ≥500V@50Hz (current); ≥300V@50Hz (signal)|
|Insulation Resistance||500MΩ@ 500VDC(current);100MΩ@300VDC(signal)|
|Electrical Noise||70 mΩ Max|
|Contact Material||Precious metal|
|Lead Wire Length||Rotor:1000mm; Stator:1000mm|
|Housing Material||Aluminum alloy|
|Protection||IP54 or higher|
6, 12, 18 and 24 circuits models
Precious metal contacts
5 amps rings
Precision ball bearings for long life
Sealed units available
Fully compatible with both analog and TTL control level signals
Rugged black anodized aluminum construction
Speed up to 500 rpm continuous
Unique signal handling performance with minimal electrical noise
Compact design to fit in the most demanding space constraints
Low torque minimizes system torque budget
