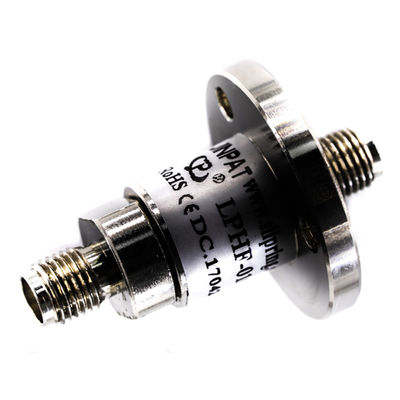

High Frequency Coaxial Rotary Joint Small Size One-stop slip ring solution

Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPHF-01C
Minimum Order Quantity 1
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 500 pieces /Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Frequency Range DC To 18 GHz Peak Power, Max 3 KW @ Sea Level 100 W @ 15000 M
Rotating Speed , Max 100 Rpm Nut Material Brass
Body Material Stainless Steel Name Coaxial Rotary Joint
Application Vehicle Turrets ,Radar Antennas,Traffic Systems,etc. Lifespan 5 Million
Highlight

slip ring rotary joint

,

100rpm coax rotary joint

,

RoHS Coaxial Rotary Joint

Product Description

High Frequency Coaxial Rotary Joint Small Size One-stop slip ring solution



Description



JINPAT single-channel high frequency slip ring offers high frequency transmission solution between a fixed platform and a rotary platform, such as TV cameras, unmanned aerial vehicles and radar systems.



The slip ring allows signal transmission in the frequency range from DC up to 18GHz, and it can be integrated into the electrical slip ring to transmit power and high speed data. The high frequency slip ring is identified as ease of installation, ease of maintenance and optimal life.



Features

  • Connector type: SMA-K
  • Frequency range: DC-18GHz
  • Insertion Loss: within 0.3dB
  • VSWR: within 1.4
  • Working speed: 100RPM
  • Lifespan: 5 million

Main Application

  • Vehicle Turrets
  • Radar Antennas
  • Remotely Operated Vehicles
  • Video Surveillance Systems
  • Traffic Systems



Dimension





High Frequency Coaxial Rotary Joint Small Size One-stop slip ring solution 0

Product Application



High Frequency Coaxial Rotary Joint Small Size One-stop slip ring solution 1
